1 HP Elite TENV Electric Motor with Base
$ 289.95
- Versatile motor for various boat lifts
- Robust rolled steel construction for durability
- NEMA 56 shaft for compatibility
- Smooth startups with included capacitor
- UL Recognized and CSA Approved for safety
- 15-minute duty cycle for extended operation
- Weather-resistant for outdoor use
- Minimal maintenance for hassle-free ownership
- Compatible with single-post, dual-post, in-ground, rail-mounted lifts
SKU: 79614
UPC: 816146020884
In stock
Special Order
Stock Policy
Shipping Policy
Return Policy

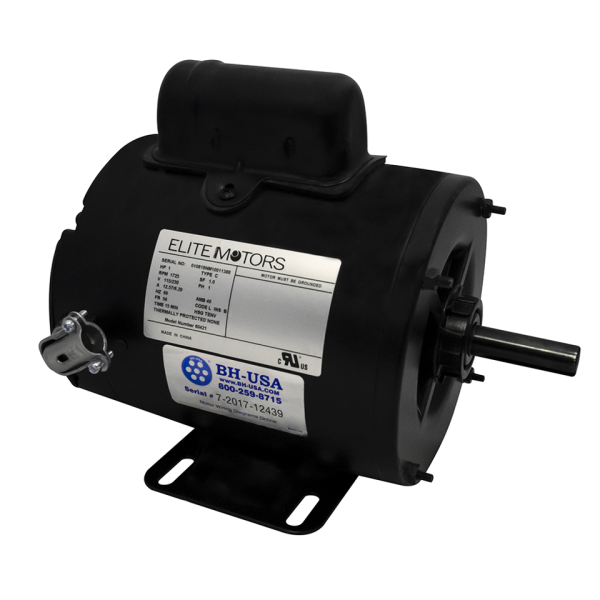

1 HP Elite TENV Electric Motor with Base
The 1 HP Elite TENV Electric Motor with Base is single phase, dual duty boat lift motor. The welded base of the motor is compatible with standard mounting patterns found on flat-plate gear plates, which are commonly used in boat hoists to lift and lower boats. The housing is painted.
This motor is engineered to seamlessly integrate with a range of flat-plate hoists from reputable brands like Boat Hoist USA, ACE Labs, American Power Hoist, AMS, and Hefty Hoist. It comes with detailed wiring instructions compatible with Breams and Salzer drum switches, ensuring smooth installation and operation. Additionally, it is fully compatible with remote controls from GEM, Galaxy, TEC, and Elite for convenient and efficient boat lift operation. Furthermore, this motor is equivalent to the Leeson boat hoist motor #6439191252, providing comparable performance and reliability.
The motor has a power of 1 horsepower and can run on either 115 volts or 230 volts. It works in a single phase and draws 12.57 amps at 115 volts or 6.29 amps at 230 volts. Running at a speed of 1725 RPM with a frequency of 60 Hz, it fits a frame size of 56 and has a service factor of 1.0. The motor’s SFA (Service Factor Amps) is not applicable, and it’s classified as Type C. It can handle temperatures up to 40°C for at least 15 minutes. The motor has a TENV (Totally Enclosed Non-Ventilated) housing, with insulation rated as class B. It’s recognized by UL (Underwriters Laboratories) with a C-UL-US stamp.
Totally Enclosed Non-Ventilated (TENV)
A Totally Enclosed Non-Ventilated motor is a type of electric motor that is enclosed to prevent the ingress of foreign particles (dust, moisture, etc.) but does not have external ventilation openings for air circulation. Unlike some other motor types, TENV motors do not rely on external airflow for cooling and are designed to operate in a sealed environment.
div class=”electricWiring”> When wiring or rewiring electrical components, BH-USA recommends hiring a licensed electrician.
