1,500 lb. A-Drive PWC Hoist
$1,172.94
In Stock
BH-USA provides four stock options: In Stock, Available, Currently Unavailable, and Out of Stock. Here’s a brief overview of each:
- In Stock — The product is currently in stock and will be shipped at the earliest possible date.
- Available — This product needs to be produced, often because it’s a special order item. Once produced, it becomes eligible for shipping. While you can still purchase Available products, please be aware that the shipping time may be longer than usual.
- Currently Unavailable — Due to constraints from vendors or resources, we are temporarily unable to sell this product until it is either received or produced. It will return to the In Stock status as soon as it becomes available again.
- Out of Stock — The product is currently out of stock, and we do not have an estimate for when it will be available again, if ever.
BH-USA aims to offer a reliable shipping experience. We work with preferred shippers for timely delivery of ground and freight orders. Specific shipper requests and third-party pickups are not allowed due to security reasons. Ground orders are shipped without a signature requirement, and we provide tracking information for monitoring. If items are marked as received but missing or damaged, BH-USA cannot be held responsible. In case of delivery issues, check with neighbors and the carrier directly, as delivery may extend until 10 pm. Contact us within 30 days of the expected delivery date for assistance in resolving any problems.
For freight orders, customers are responsible for unloading as freight carriers do not provide this service. Shipping to commercial addresses with forklift access is recommended for smoother delivery. Residential delivery requires proper access and unloading equipment and assistance. Failure to comply may result in the order being returned to BH-USA with a credit issued after deducting all freight costs and a restocking fee of up to 20%. BH-USA is not responsible for hindrances caused by factors like gate access or neighborhood restrictions. Specific freight delivery requests should be directed to the carrier. Before signing the delivery ticket, verify shipment completeness and inspect for visible damage, taking photographs if needed for smoother claims processing.
BH-USA will refund your purchase price for eligible items up to 30 days from the purchase date. Using our simple return system, enter your order number or log into your account and if your item is eligible for return, a return link will be displayed. Simply follow the link to get a pre-paid UPS label.
BH-USA will only accept returns that are processed through the BH-USA simple return system. Items that were not purchased directly through BH-USA are not eligible for returns. Simple return system is only for ground orders. For freight, please call customer service at 1-800-259-8715 for further assistance.
Freight Returns: Customers are responsible for arranging and coordinating the return shipment of all freight items. BH-USA will not provide return bills of lading (BOLs) or authorize the use of BH-USA shipping accounts for return shipments. All return freight arrangements and associated shipping costs are the customer's responsibility.
Any rigging hardware and special order items are non-refundable. Certain manufacturer products may have restocking fees applied. All returned items must be in new condition, in its original packaging and include all tags, accessories and documents. BH-USA reserves the right to deny any return that does not meet the return requirements.
Have questions about this product? Contact us.

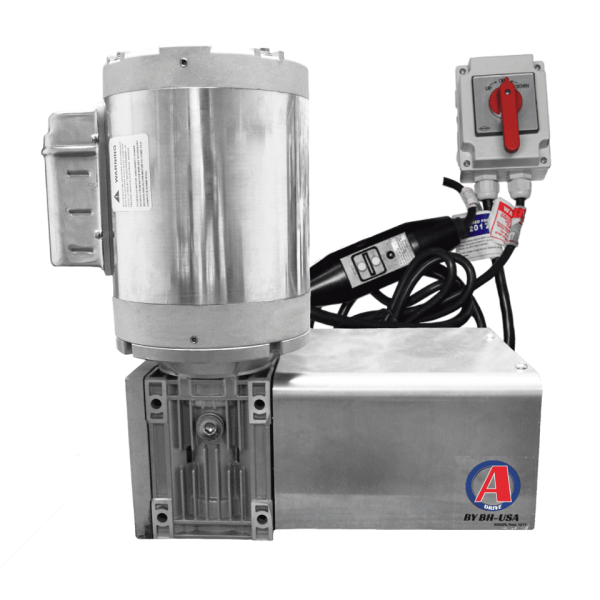

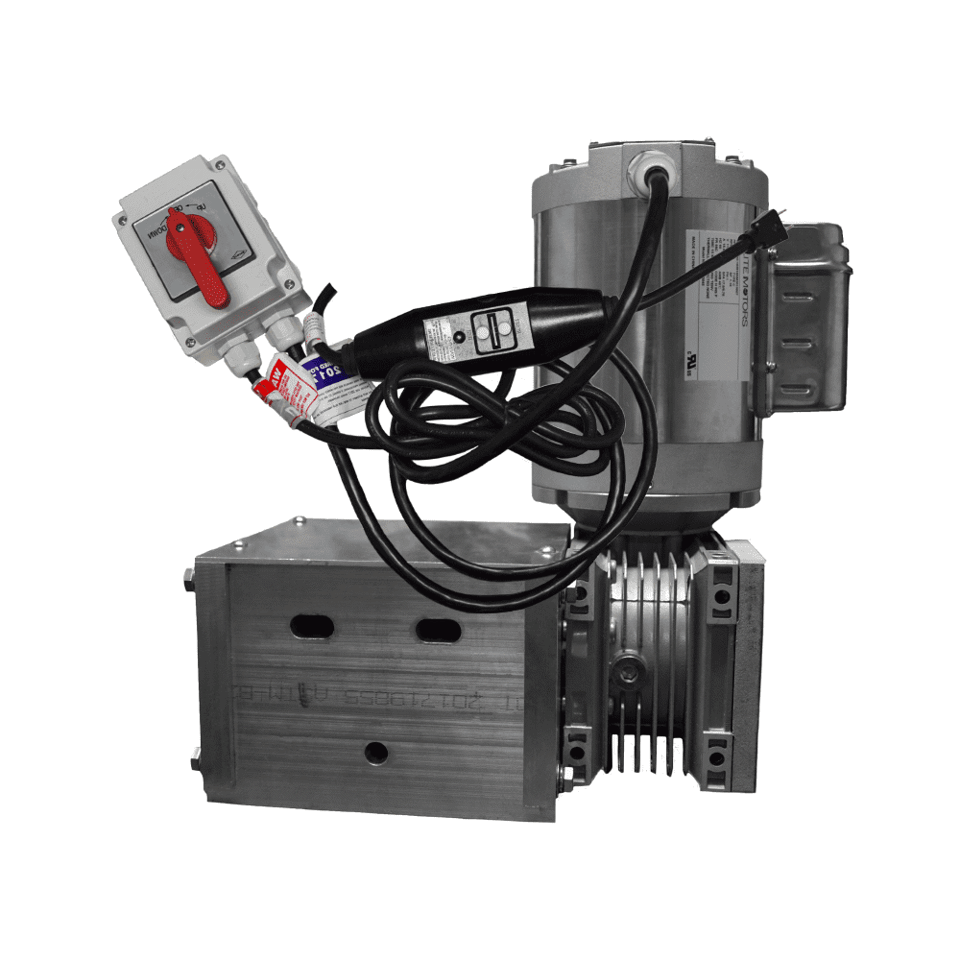

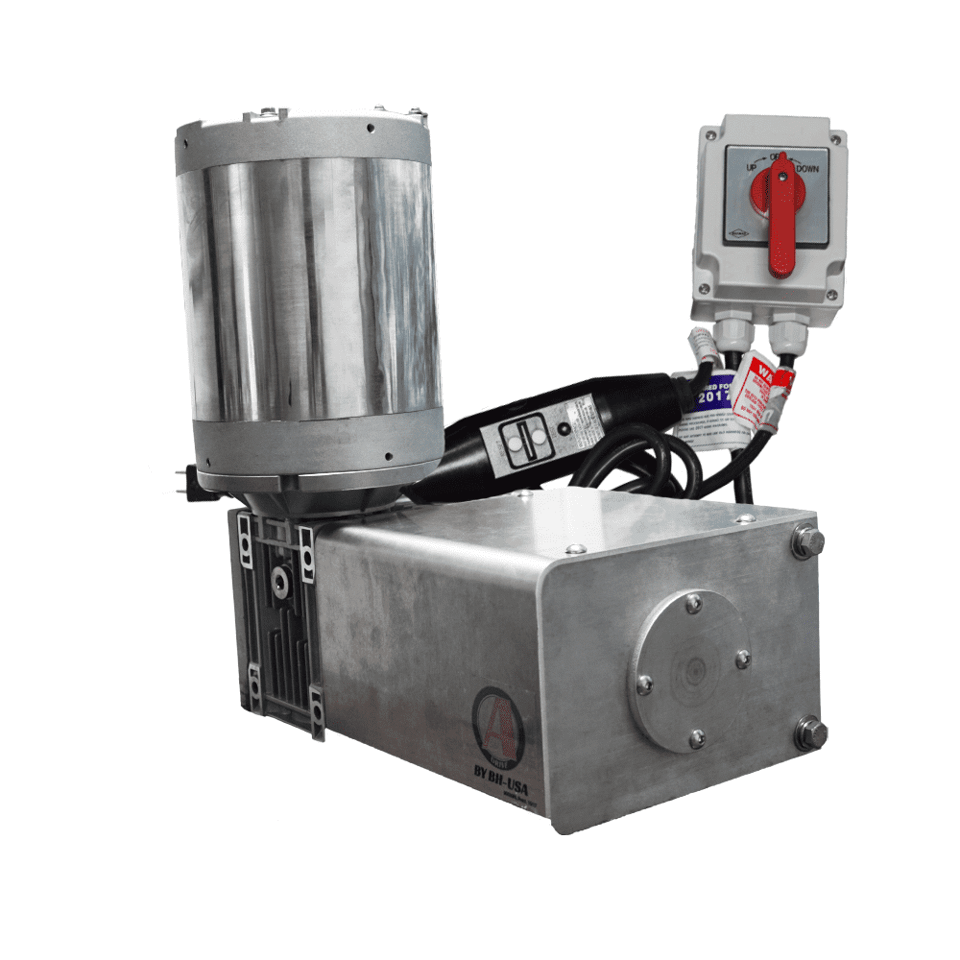

1,500 lb. A-Drive PWC Hoist
The A-Drive PWC Hoist, capable of lifting 1,500 lbs., seamlessly combines a PWC gearbox and an electric motor. This hoist incorporates an A-Drive PWC Single Worm Reducer, featuring bronze bushings, an aluminum gear, and spool housing. With a plated spool measuring 1 1/4 in., it easily accommodates a 1/4 in. 7 x 19 aircraft cable, simplifying the boat lift cable installation process. Operating at a 1:100 single worm reducer ratio, the hoist is 40% faster than belt-driven PWC hoists. It utilizes a standard 3-hole motor mounting pattern and leverages BH-USA advanced gear technology to prevent leaks and backspin.

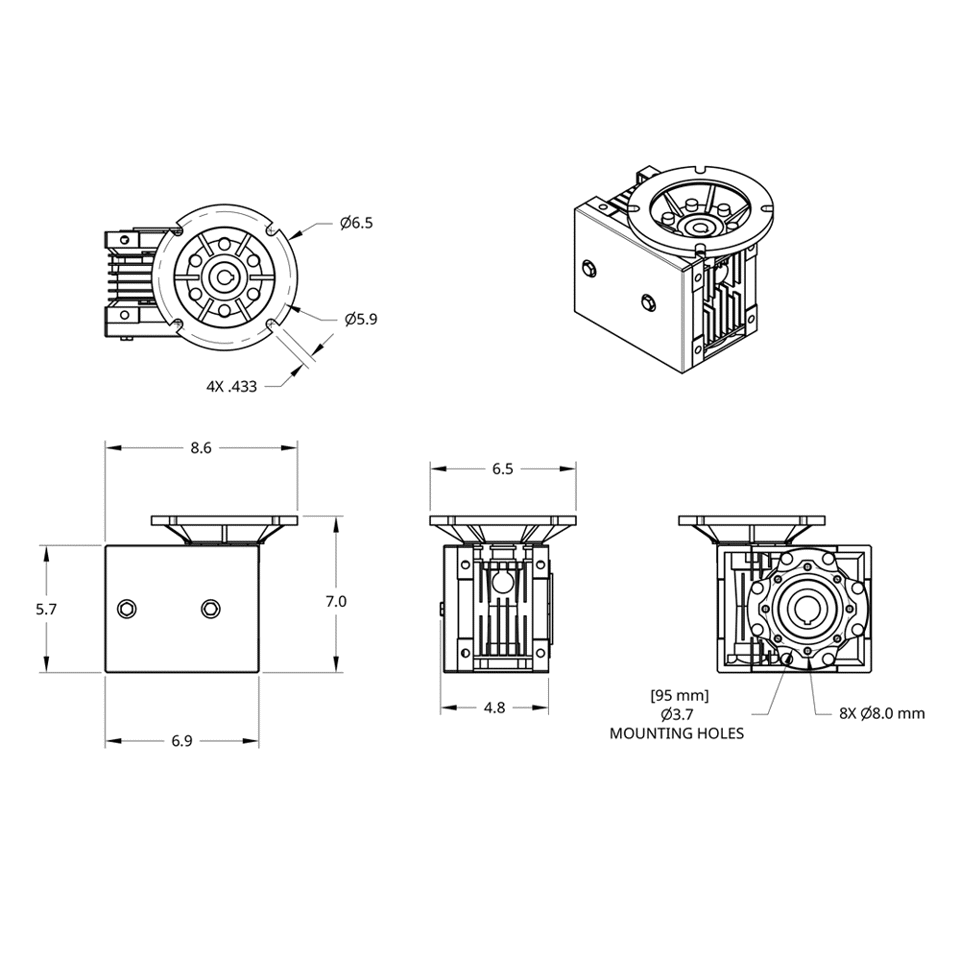

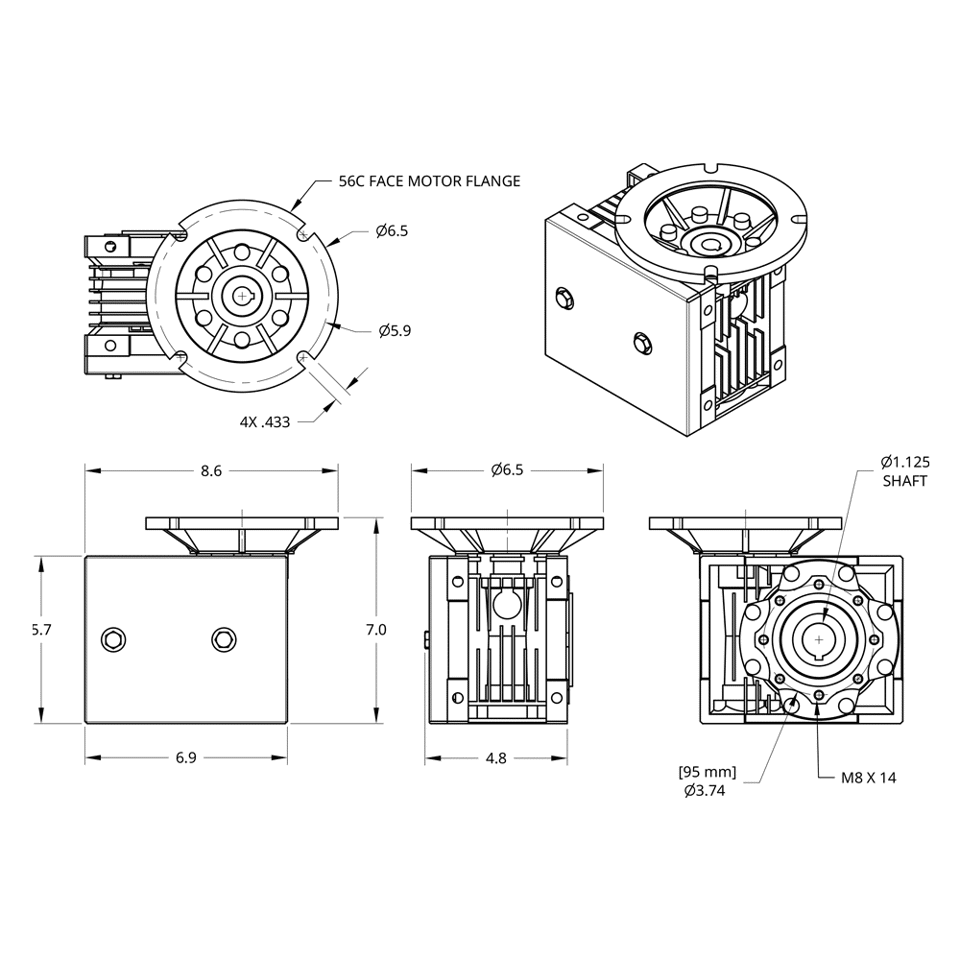

The gearbox specifications highlight an aluminum construction and a single worm reducer. Operating at 18 RPM, the hoist can lift 1,500 lbs. with a travel speed of 4.5 ft/min (1 HP). The gear ratio is 1:100, providing a 40% increase in hoist speed compared to belt-driven alternatives. The motor mount type is 56c, and the gearbox dimensions are 14 in. in length, 10.25 in. in width, 6.875 in. in height, with a weight of 29.27 lbs. The technical specifications include a drive pipe output shaft (2 3/8 in. OD, 2 in. ID) and a motor output shaft of 1.125 in. The gearbox features bronze bearings, specially blended lubrication, and dimensions of 8 9/16 in. in length, 6 1/2 in. in width, and 7 in. in height. The gearbox weighs 13.7 lbs and includes an 8.5 in. x 8.5 in. x 5.5 in. spool box weighing 16 lbs. The spool holds 112 in. (0.25 in. cable) with dimensions of 5.125 in. in length, 5 in. in width, and 5 in. in height. It has three mounting holes, a triangular mounting pattern, and fits 3/4 HP / 1 HP. The mounting slot size is 1.0625 in. x 0.5625 in. with two slots, and there is one additional mounting hole of size 0.5625 in. x 0.5625 in.
The motor, with general specifications, weighs 28.60 lbs and is packaged in a box measuring 15 in. x 10 in. x 10 in. The product dimensions are 10.75 in. in length, 6.50 in. in width, and 9.0 in. in height. The shaft has a width of 0.625 in, a length of 2 in, and it is manufactured in China. The model number is 93048. The motor nameplate specifies a 1 HP motor with dual voltage (115v / 230v), single-phase, and amps of 15.6 (115v) / 7.8 (230v). Operating at 1725 RPM with a frequency of 60 Hz, it has a 56c frame, a service factor of 1.15, and an SFA of 17.5 (115v) / 8.75 (230v). Suitable for a temperature of 40°C with a maximum time of 15 minutes, it features a totally enclosed non-ventilated (TENV) housing, a code of H, F-class insulation, and is thermally protected. The motor is UL recognized with a C-UL-US stamp. Technical specifications include an electrical type of capacitor start, selective rotation, a NEMA 56 shaft type, and a shaft extension of 1.88 in. Its frame length is 9.0 in, and it has a round mounting style. The drive end and opposite drive end bearings are ball bearings, and the frame material is stainless steel. It includes a replacement capacitor of 800 uF. The motor comes with keystock, with a length of 1 in and a width of 0.25 in.
The momentary switch, model CA0200034I-B96IQ6R, features a housing length of 4.5 in, handle length of 3 in, housing width of 3.5 in, handle width of 1.1875 in, housing height of 4.5 in, and handle height of 1.3125 in. The box color is light grey, the handle color is red, and it originates from Italy with a weight of 1.25 lbs. Technical specifications include 20 Amps, EN 60947-3 certification, 600 VAC certification, CE certification, tight torque, and C-UL-US Listed.
The GFCI wire harness specifications for 110v include a manufacturer, Southwire Company, a GFCI to plug length of 4.5 in, plug type 3-US 110 V Standard, and a cord diameter range of 0.28 in. – 0.65 in. Operating at 125 VAC, it originates from Honduras, has a frequency of 60 Hz, is UL listed, and is certified by CSA. Drawing 15 Amps, with a power rating of 1875 Watts, it includes a reset button for automatic reset type and is classified as rainproof Class A. The GFCI type is in-line. The cable type is 14/5 SJTW, and the catalog number is 303385214.
Compatible Replacements:
- BH-USA
- Hefty Hoist
- AMS belt-driven PWC hoists
Includes:
- 1 HP Elite TENV Stainless Bremas Wired PWC Motor – 110v, Momentary Drum Switch, with 6 ft. control cable

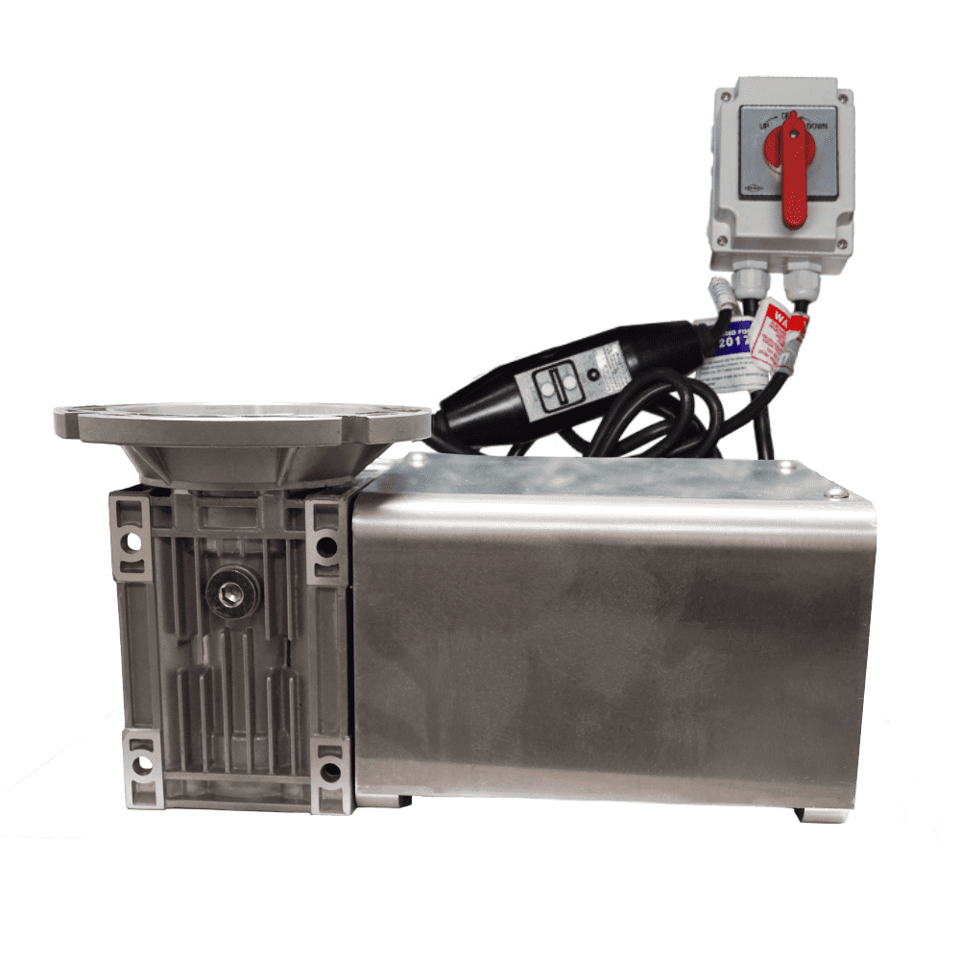

- A-Drive Direct Drive 1500 lb. PWC Hoist Gearbox
Product Details
Product Overview
- 1500 lb. straight-line lifting capacity
- Fits most dockside PWC hoists/lifts
- Features a single worm reducer
- Works with C-Face direct input electric motors only
- 40% faster than belt-driven PWC hoists
- 1:100 worm gear ratio
- Spool accepts up to 1/4 in. 7 x 19 aircraft cable
- The boat lift cable is easy to install
