2 7/16 in. Pillow Block
$ 99.95
SKU: 70035
UPC: 816146027111
In stock
Special Order
Stock Policy
Shipping Policy
Return Policy
2 7/16 in. Pillow Block
This 2 7/16 inch unit is a standard-duty pillow block bearing. It features a cast iron housing paired with a chrome steel insert ball bearing. The bearing includes a wide inner ring and a standard base-to-center height, making it a reliable choice for many applications.
It is designed with a 45-degree grease fitting, which allows for easy re-lubrication of the bearing. The insert bearing is secured with two set screws located on the extended inner ring. These screws help lock the bearing firmly onto the shaft.
Each mounted block bearing unit is pre-lubricated with grease. This means it is ready to install and use right out of the box, saving you time and effort.
Specifications
| Bore Diameter: | 2 7/16 in. | Bearing Insert Type: | Ball |
| Locking Type: | Set Screw | Housing Material: | Cast Iron |
| Bearing Insert Material: | Chrome Steel | Number of Bolts: | 2 |
| Bolt Size: | 3/4 in. | Bolt Hole Center to Center: | 7.25 in. |
| Mounting Surface to Shaft Center: | 3 in. | Overall Length: | 9.50 in. |
| Standards: | ISO | Overall Width: | 2.62 in. |
| Static Load Capacity: | 8992 lbs. | Overall Height: | 5.50 in. |
| Finish: | Painted | Weight: | 10.45 lbs. |

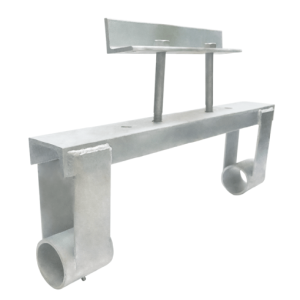

| Use with BH-USA pillow block hangers, recommended for center mount only. Rating is only based on proper installation with weight on the flange as the image shown. Do not attempt to hang and put a direct load on the block. Always use the BH-USA Overhead Lift Guide when designing your overhead lift. BH-USA does not recommend overhead lifts for boats weighing more than 12,000 lbs. | |||
