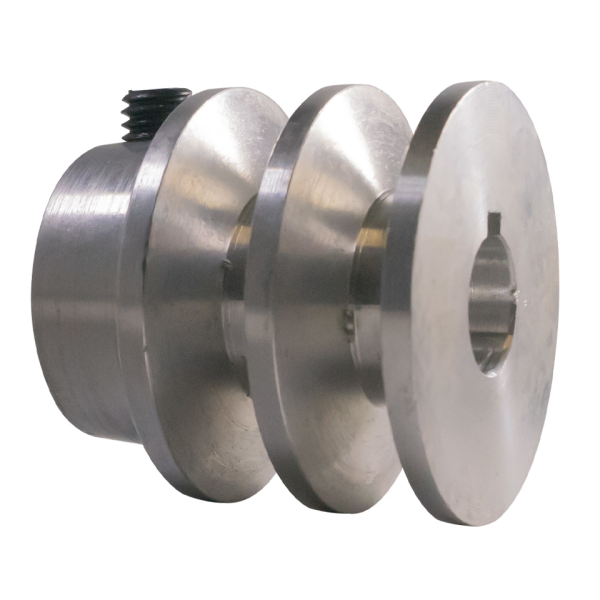

2 in. Aluminum Dual Belt Motor Pulley
The 2-inch Aluminum Dual Belt Motor Pulley attaches to the driveshaft of a 56c frame NEMA electric motor with a base. The motor pulley fits different boat lift motors with a 5/8-inch driveshaft thickness It’s made from 6061-T6 US aluminum. The groove fits BH-USA drive belts. You’ll need a key stock to secure it to the driveshaft. The key stock keeps the pulley on the driveshaft when the screw is tightened.
Installation
To install the motor pulley, slide it onto the driveshaft with a 5/8-inch center hole. Use the given 3/8-inch 16-coarse thread set screw to firmly attach the pulley to the motor’s driveshaft.
Motor key stock not included with pulley.
Specifications
| Weight: | 0.3 lbs. | Material: | Aluminum |
| Construction: | Machined | Material Type: | 6061-T6 US |
| Length: | 2 in. | Fits: | Motor with Base |
| Width: | 2 in. | Belt Style: | Dual |
| Height: | 2 in. | Bore Size: | .630 in. (5/8 in.) |
| Set Screw Size: | 0.375 in. (3/8 in.) | Bore Type: | Center |
| Set Screw Thread Count:: | 16 | Packaging: | Clam (Retail) |
| Se Screw Threads: | 16 Coarse | Brand: | BH-USA |
