4 in. 3 Ton Painted Snatch Block
In stock
4 in. 3 Ton Painted Snatch Block

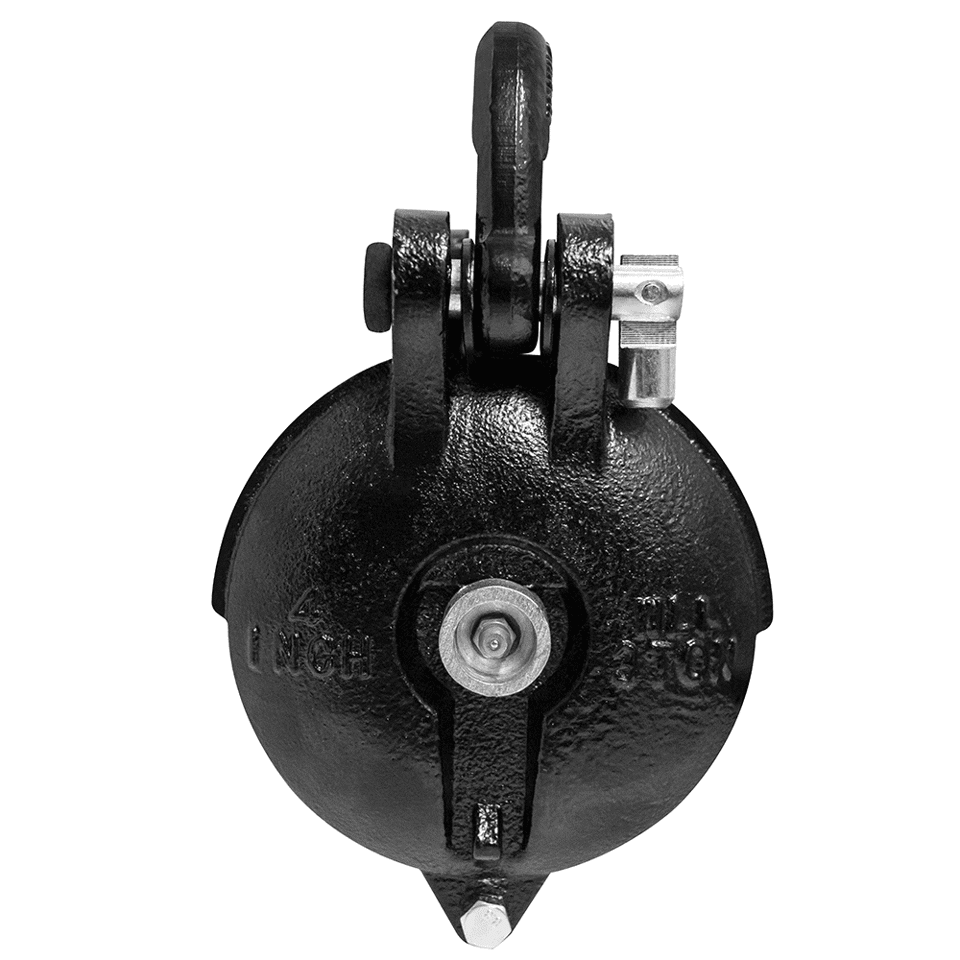

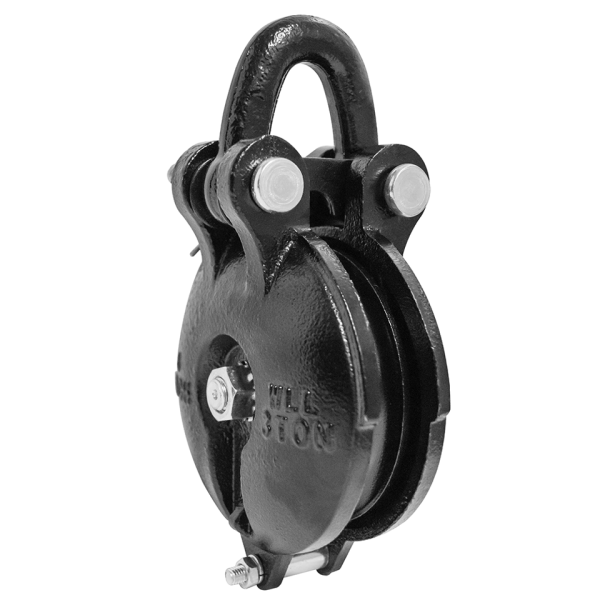

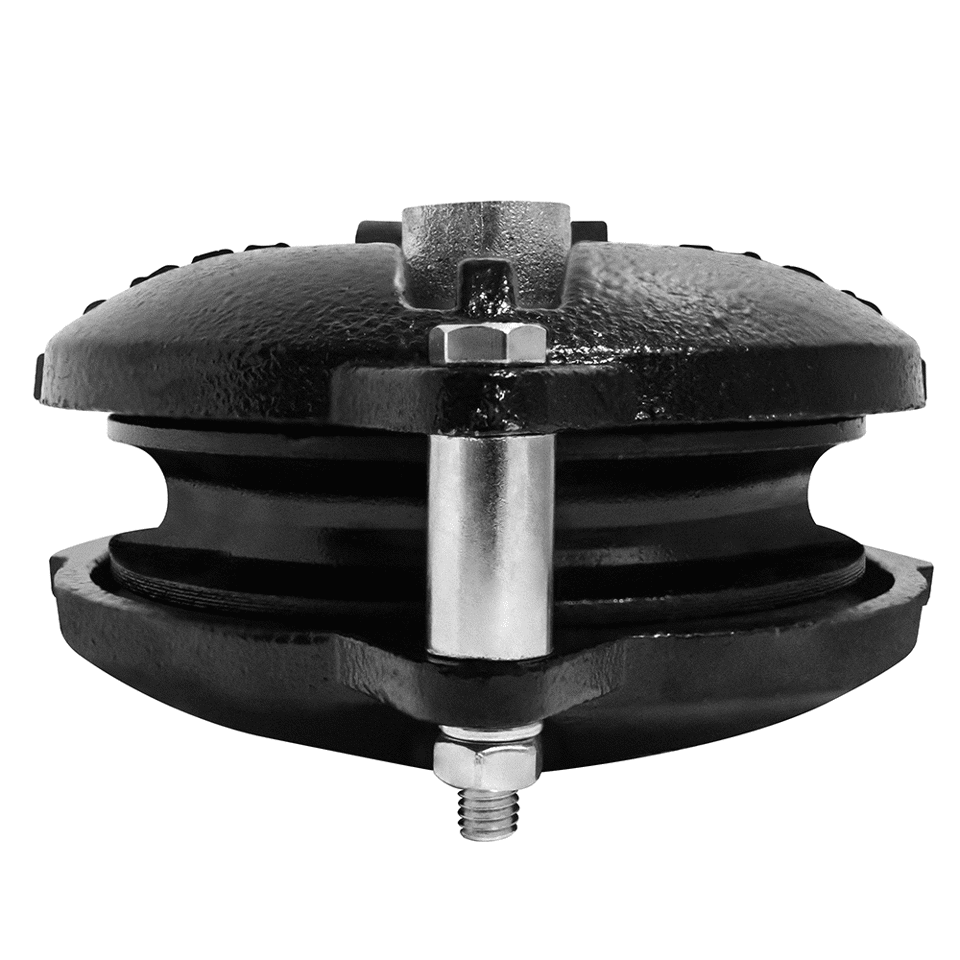

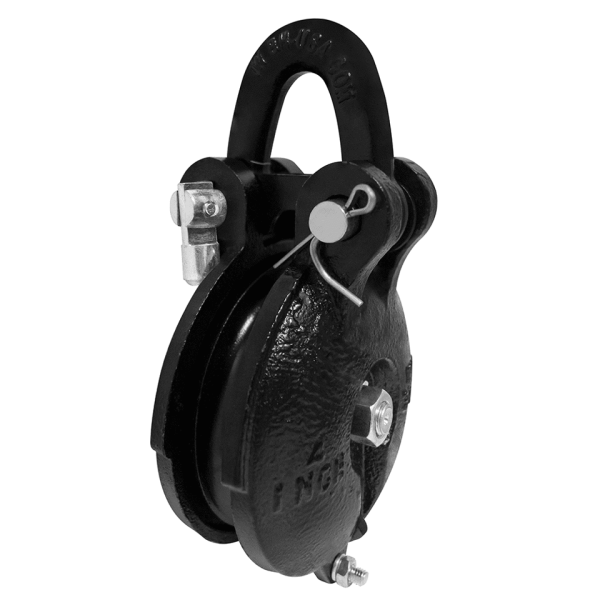

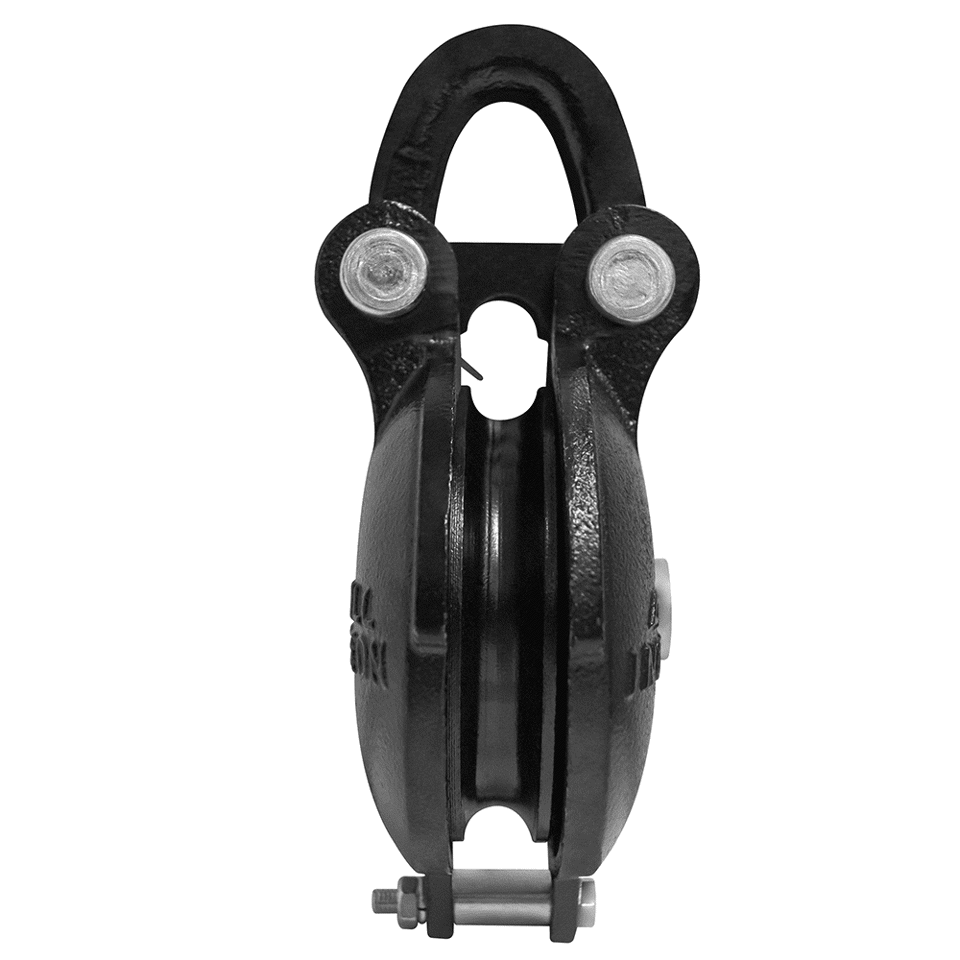

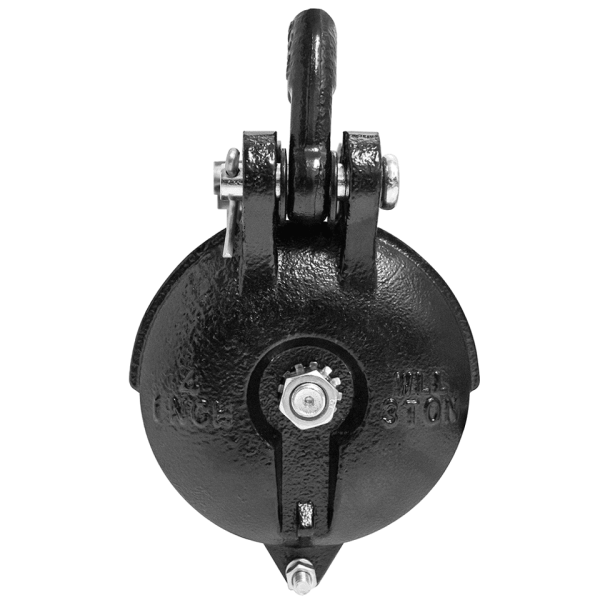

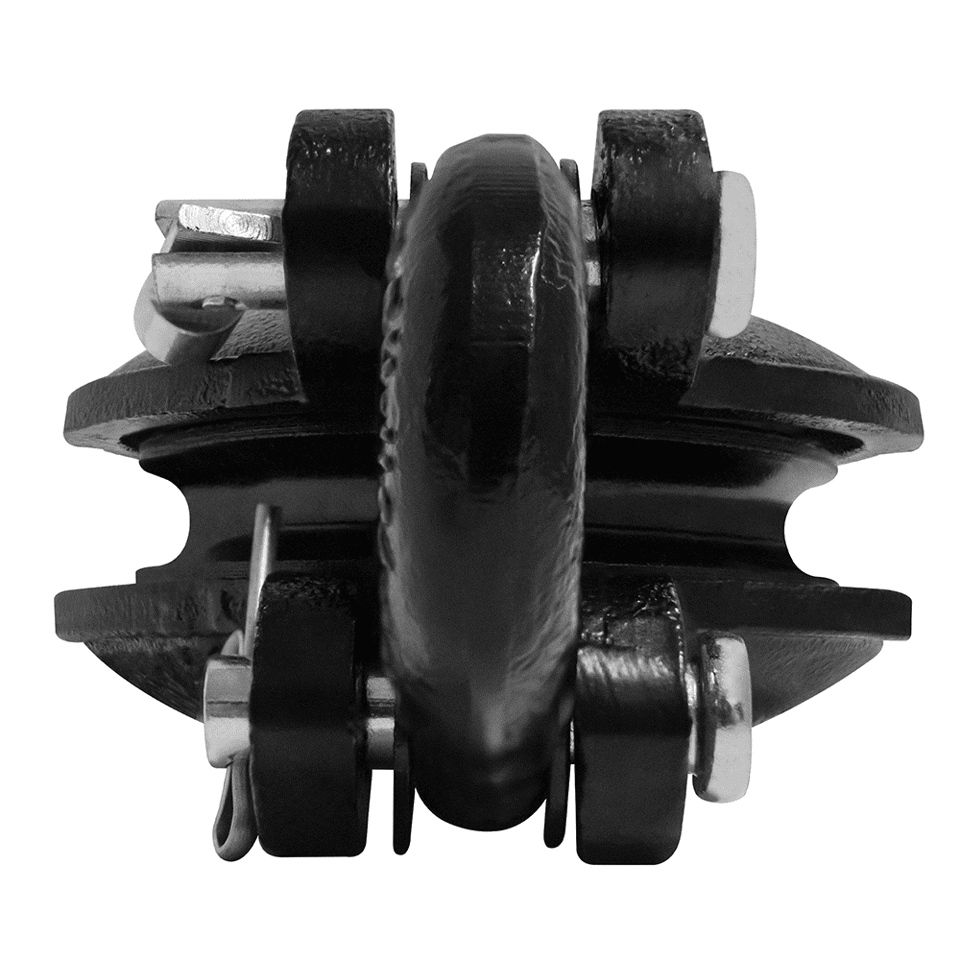

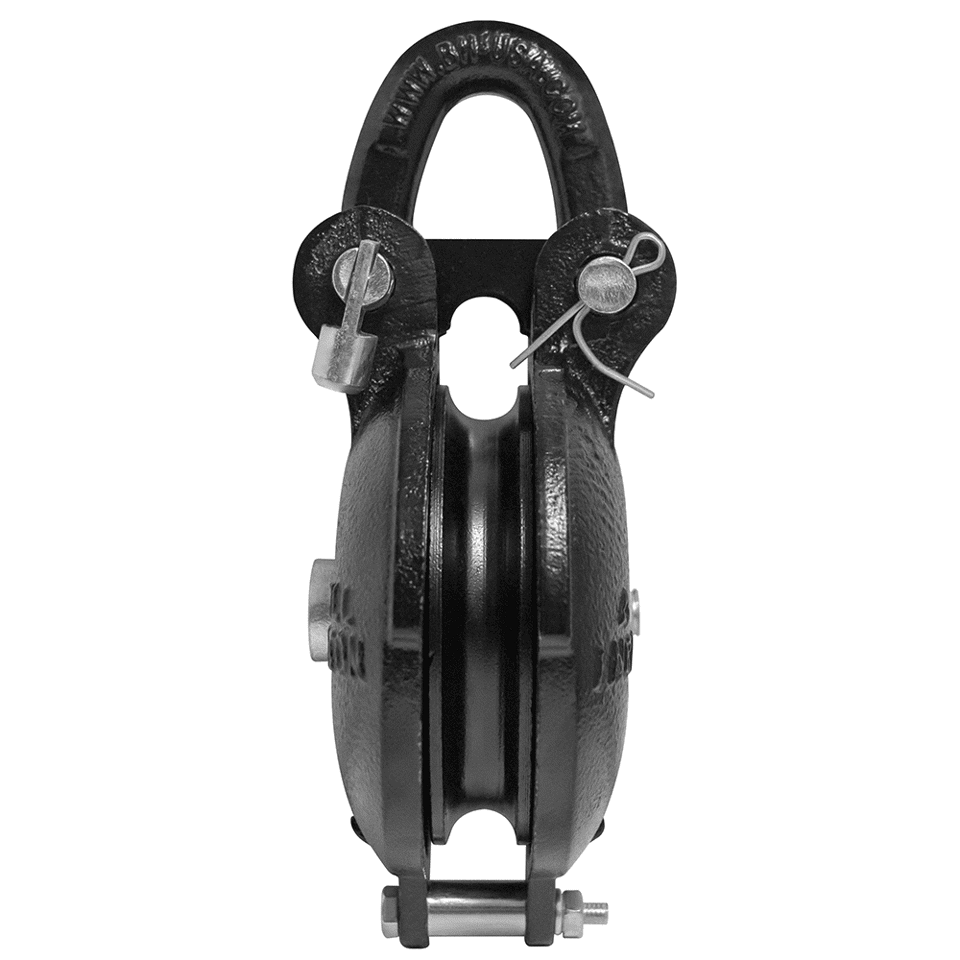

The 4-inch 3 Ton Snatch Painted Block is meant for lifting and rigging tasks, suitable for medium-duty use with a rating of 3 tons (6,000 lbs.). It features a steel sheave measuring 4 inches by 3/4 inch, capable of accommodating cables up to 1/2 inch thick. The block’s steel housing is 6 1/2 inches long, 5 inches wide, and 3 1/4 inches thick, with a grease fitting for maintenance. The included steel shackle measures 3 inches by 3 inches by 5/8 inch, with two safety pin holes of 1/2 inch each. The safety pin quick release extends to 3 1/4 inches by 1/2 inch when fully extended. Finished with galvanization, each block weighs 6.1 lbs. and measures 7 3/4 inches by 5 inches by 3 1/4 inches overall. It comes ready to install and is suitable for lifting heavy objects.
Specifications
| Product Name | 4 in. 3 Ton Snatch Painted Block | Usage | Lifting and rigging applications |
| Duty | Medium-duty | Stamp Rating | 3 Ton (6,000 lbs.) |
| Sheave Size | 4 in. x 3/4 in. | Sheave Material | Steel |
| Sheave Bore | 1/2 in. | Sheave Cable Groove | 1/2 in. |
| Cable Compatibility | Accepts up to 1/2 in. diameter boat lift cable | Housing Dimensions | 6 1/2 in. x 5 in. x 3 1/4 in. |
| Housing Material | Steel | Grease Fitting Size | 1/4 in. (Cast Protected) |
| Shackle Dimensions | 3 in. x 3 in. x 5/8 in. | Shackle Material | Steel |
| Safety Pin Holes | 2 | Safety Pin Hole Size | 1/2 in. |
| Safety Pin Quick Release | 3 1/4 in. x 1/2 in. (Fully Extended) | Finish | Galvanized |
| Weight | 6.1 lbs. (each) | Overall Dimensions | 7 3/4 in. x 5 in. x 3 1/4 in. |
| Break-away Shackle | Included | Installation | Ready to install |
| Suitable Applications | Lifting heavy objects |
Product Overview
{{dc:woocommerce:product_short_description}}
You may also like…
-

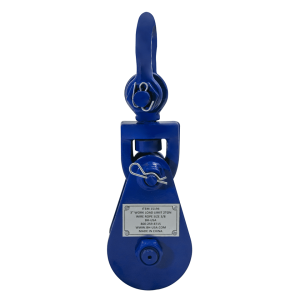

4 in. 3 Ton Snatch Block
