6K-8K Pile Mount Flat-Plate Hardware Kit

The 6K-8K Pile Mount Flat-Plate Hardware Kit includes the hardware to mount a flat-plate hoist on an aluminum 4 post pile mount boat lift. The Aluminum Pile Mount Top Beam Bracket is a safety securement bracket for aluminum pile mount boat lifts. The bracket slides onto the bottom flange of the aluminum top beam. The top beam rests on the top of the dock piling. The bracket installs on the dock piling as an added securement bracket. The bracket helps keep the top beam from moving side to side or being lifted during bad weather.

Features a no-weld design. Uses stainless steel fasteners with PVC isolators so the aluminum bracket does not touch the dock piling wood. Available in (3) sizes for different size pile mount boat lifts. Secures top beams up to 7 in. channel. The bracket pieces mounting on the aluminum top beam are adjustable making it easier to install. Made from 6061-T6 US aluminum.

The Flat-Plate Pipe Reduction Sleeve changes the drive pipe output from 2 in. ID to a standard 1 1/2 in. ID driveshaft. Most commonly used on pile mount boat lifts. Features a 2.067 in. inside diameter. Schedule 40 wall thickness. Made from marine-grade 6061-T6 US aluminum. Predrilled to fit the flat-plate hoist drive pipe.

Dock piling mounting fasteners not included.

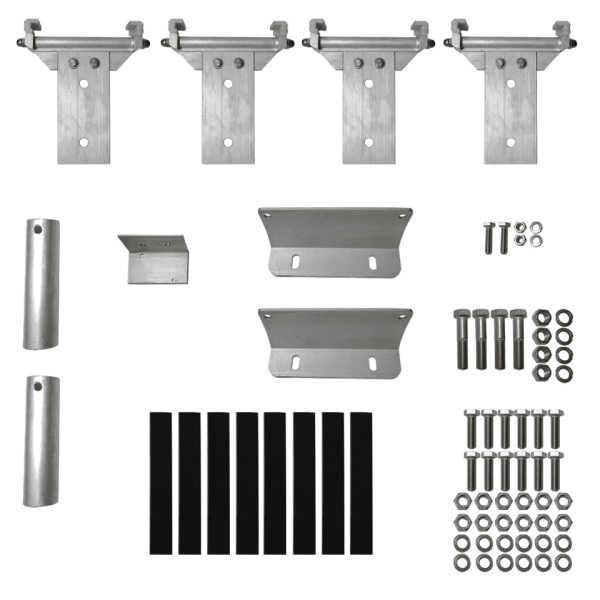

Includes:

(4) Aluminum Pile Mount Top Beam Bracket
(2) Aluminum Flat-Plate Hoist Mount
(1) Aluminum  Lift Hoist Mount Fastener Pack
(1) Four Post Limit Switch Bracket
(2) Flat-Plate Pipe Reduction Sleeve
(1) Four Post Limit Switch  Fastener Pack
(8) Grey PVC Isolators – 2 in. x 12 in.
(1) 6K -8K Aluminum Cradle Bracket Bolts
