Attabox Enclosure for Elite Remotes
Attabox Enclosure for Elite Remotes
Attabox Enclosure for Elite Remotes
Attabox Enclosure for Elite Remotes

Attabox Enclosure for Elite Remotes

$ 89.99
SKU: AH864
UPC: 672975253042

In stock

in stock

Free Shipping
×

Free Shipping

Boat Hoist USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

×

Shipping

Boat Hoist USA has partnered with UPS to offer Ground, Next Day Air, 2nd Day Air, and 3 Day Select services to our customers. In order to ship with these methods, the order must meet UPS's requirements.

Freight

Your order will be shipped via the most cost-effective method possible. All shipping and handling charges are the responsibility of the customer. Additionally, they are responsible for any delivery issues that may hinder delivery. In such cases, extra fees can apply, such as residential delivery fees.

Click the button below to learn more about our ordering and shipping policies.

Our Shipping Partners shipping modal logos

Qty.



Attabox Enclosure for Elite Remotes

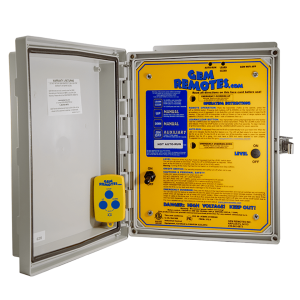

The Attabox Enclosure for Elite Remotes is a durable polycarbonate case made for commercial, industrial, and personal use. It is watertight and built for both indoor and outdoor applications. The enclosure has a gray, opaque cover that is hinged, latched, and can be padlocked for added security.

Constructed with UV-protected polycarbonate, the Attabox resists weathering and ensures long-lasting protection. It includes zinc-plated back panel screws (#10-32 x 3/8) with a recommended torque of 16-20 in-lbs. Cover screws (#10-32 x 5/8) are made from stainless steel (304 SS) and should be tightened to 20-24 in-lbs. The enclosure also has brass inserts and mounting foot screws with a maximum mounting torque of 25-30 in-lbs.

The enclosure’s dimensions are 8 in. wide x 9.5 in. high x 6 in. deep, with a usable depth of 4.6 in. It meets NEMA standards and is rated IP66 and IP68, offering excellent protection from dust, water, and harsh conditions. The operating temperature ranges from -40°F to +248°F, with a UL94-5VA flammability rating for added safety.

Made in the USA and certified by UL, CE, and IEC, this Attabox Enclosure is ideal for protecting Elite Remote systems.

Specifications

Color Gray Cover Type Opaque
Latch Material Polycarbonate with UV Inhibitors Mounting Type Wall Mount
Material Polycarbonate Back Panel Screw Size #10-32 x 3/8
Back Panel Recommended Torque 16-20 in-lbs. Back Panel Screw Material Zinc Plated
Cover Screw Size #10-32 x 5/8 Cover Screw Recommended Torque 20-24 in-lbs.
Cover Screw Material 304 SS Mounting Foot Screw Size 1/4-20 x 1/2
Mounting Foot Screw Recommended Torque 10-14 in-lbs. Installation Mounting Torque 25-30 in-lbs. Max
Metal Inserts Brass Hinge Material Integral Polycarbonate
Gasket Material Poured In Place (PIP) Polyurethane Seamless Country of Origin USA
Outer Dimensions  8.5 in. W x 9.5 in. H x 6 in. D Inner Dimensions 8 in. W x 6 in. H x 4 in. D
Useable Depth (in) 4.6 Useable Depth (mm) 116.0
Standards NEMA 250; UL 50; UL 50e; UL508A cULus Listed File #E319779 Type 1; 3R; 4; 4X; 6; 6P; 12
IEC 60529 IP66; IP68 IEC cULus Listed File #E362920
Temperature Range (°F) -40°F to +248°F Temperature Range (°C) -40°C to +120°C
Flammability Rating UL94-5VA Outdoor Exposure UL746c (f1) Rated
CE Certified
