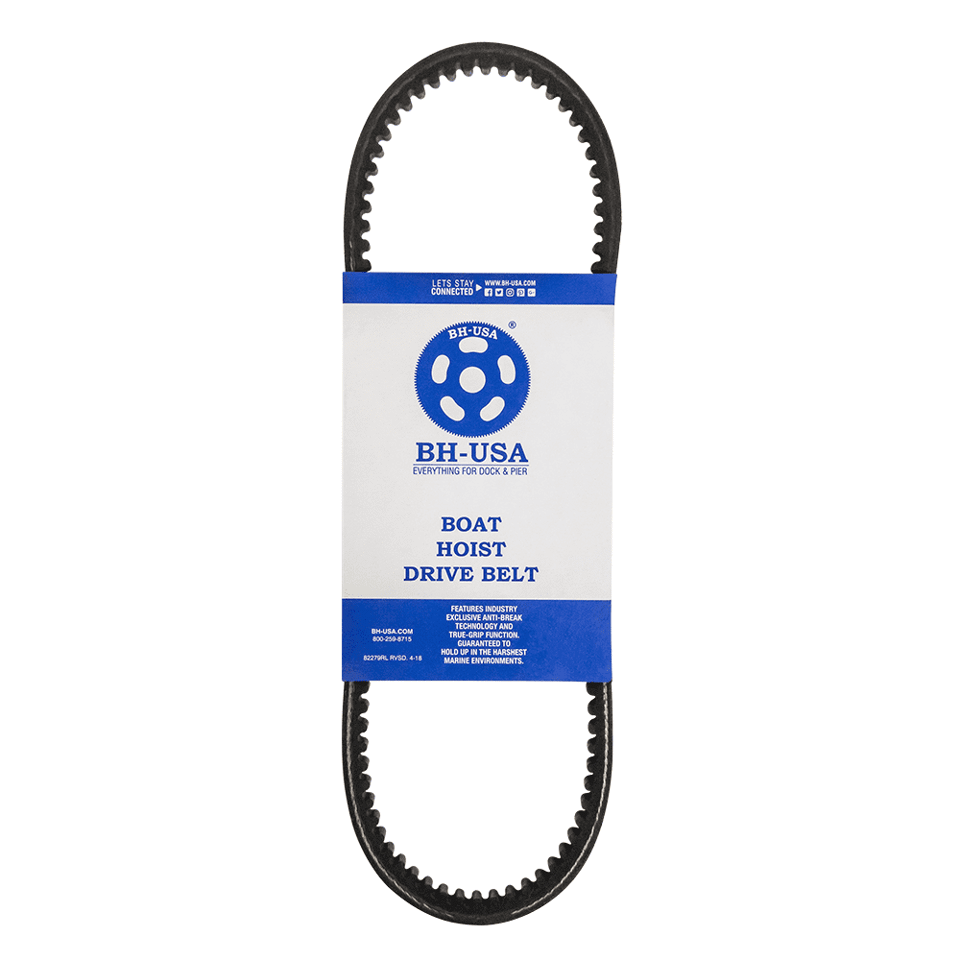

AX-35 - 35 in. Boat Hoist Drive Belt
AX-35 – 35 in. Boat Hoist Drive Belt

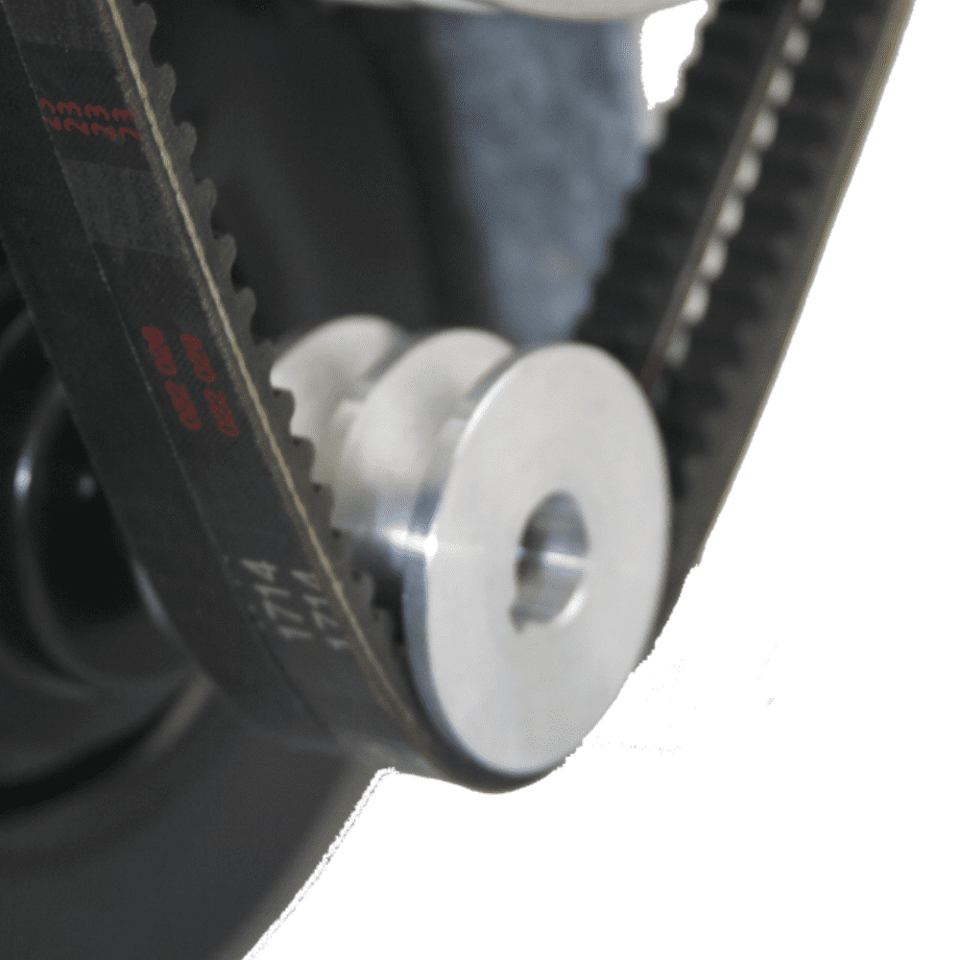

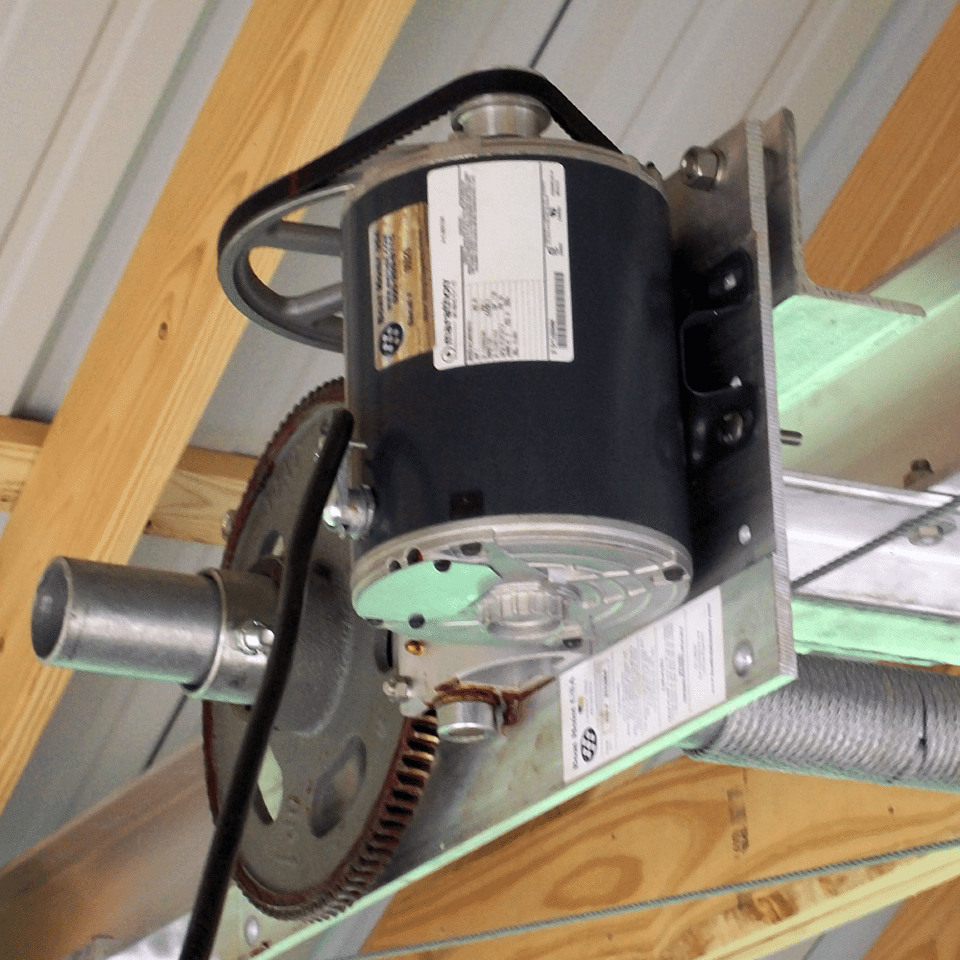

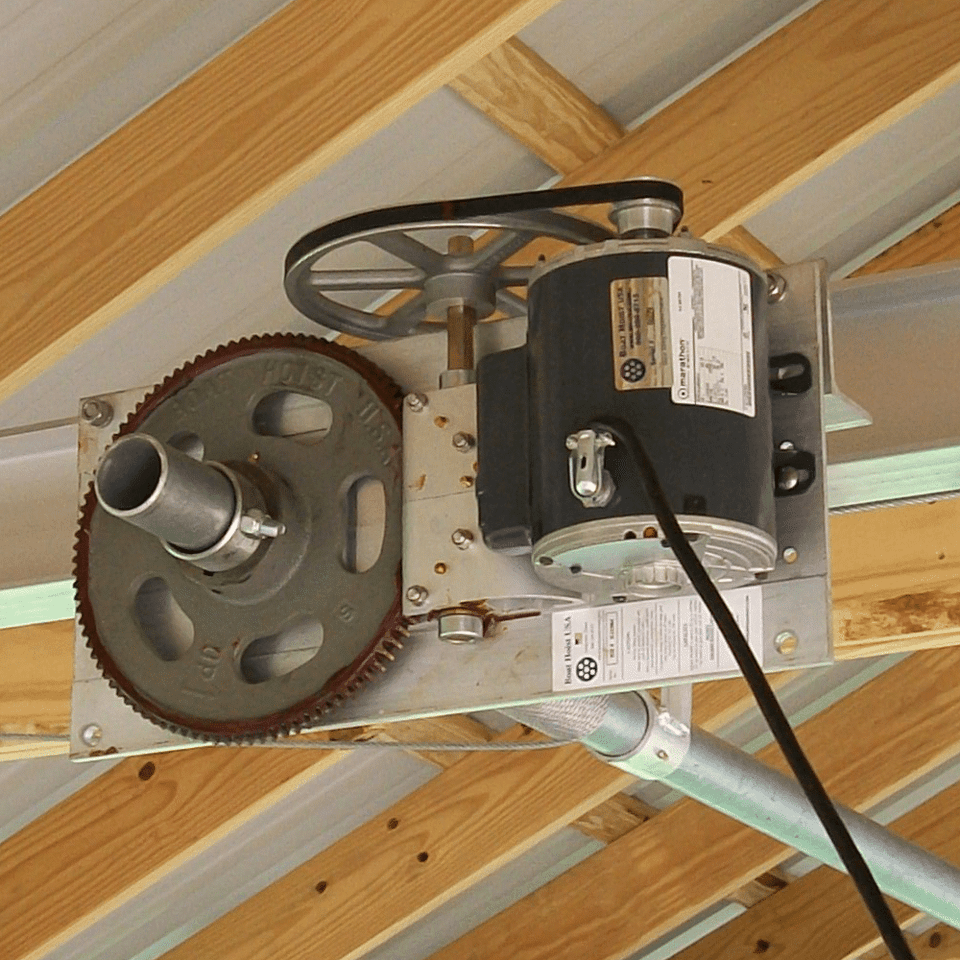

The AX-35 – 35″ Boat Hoist Drive Belt fits BH-USA flat-plate hoists and various other brands of flat-plate boat hoists. The drive belt fits into the grooves of the 2 in. motor pulley and a 10 1/2 in. – 11 in. gear plate assembly hoist pulley. The drive belt fits all BH-USA flat-plate boat hoists. Factory molded with a black finish. Made out of rubber. 34 in. in total surface size. The belt is cogged to grip the groove of the pulleys. This allows less slipping during the lifting operation. Install the belt into the grooves of both pulleys. Operating the electric motor will turn the motor pulley and driveshaft. The motor spinning the motor pulley allows the belt to turn the worm gear of the flat-plate boat hoist. The worm gear is installed onto the drive pipe. Designed with Anti-break technology.
Drive Belt Sizes
| Belt Name | Belt Size | Boat Hoist Style | Hoist Pulley Size | Motor Pulley Size |
| AX-26 | 26 in. | BH-360 / PWC Belt-Driven Hoists | 7 in. – 8 in. | 2 in. |
| AX-34 | 34 in. | Standard Flat-Plate Hoists | 10 in. | 2 in. |
| AX-35 | 35 in. | Older Flat-Plate Hoists | 10 1/2 in. – 11 in. | 2 in. |
| AX-39 | 39 in. | Older Flat-Plate Hoists | 12 in. | 2 in. |
Specifications
| Belt Size: | 35 in. |
| Hoist Pulley Size: | 10 1/2 in. – 11 in. |
| Motor Pulley Size: | 2 in. |
| Hoist Style: | Older flat-plate boat hoists (gear plate) |
| Belt Style: | Cogged |
| Material: | Rubber |
| Color: | Black |
| Type: | Anti-break technology |
| Country of Origin: | USA |
