BH-360 PWC Lift Dock Mount Plate

SKU: 84041FB UPC: 091037122155

$69.99

In stock

in stock

Free Shipping
×

Free Shipping

Boat Hoist USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

Qty.



In Stock

Have questions about this product? Contact us.

BH-360 PWC Lift Dock Mount Plate

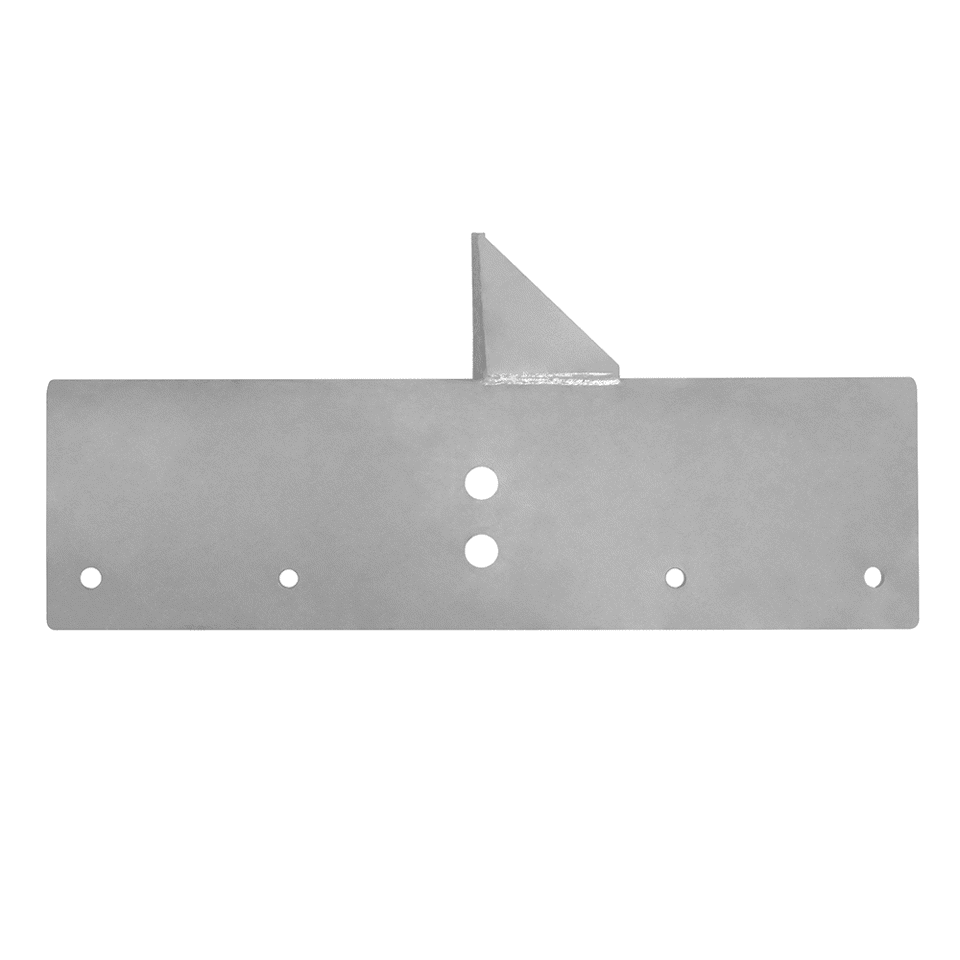

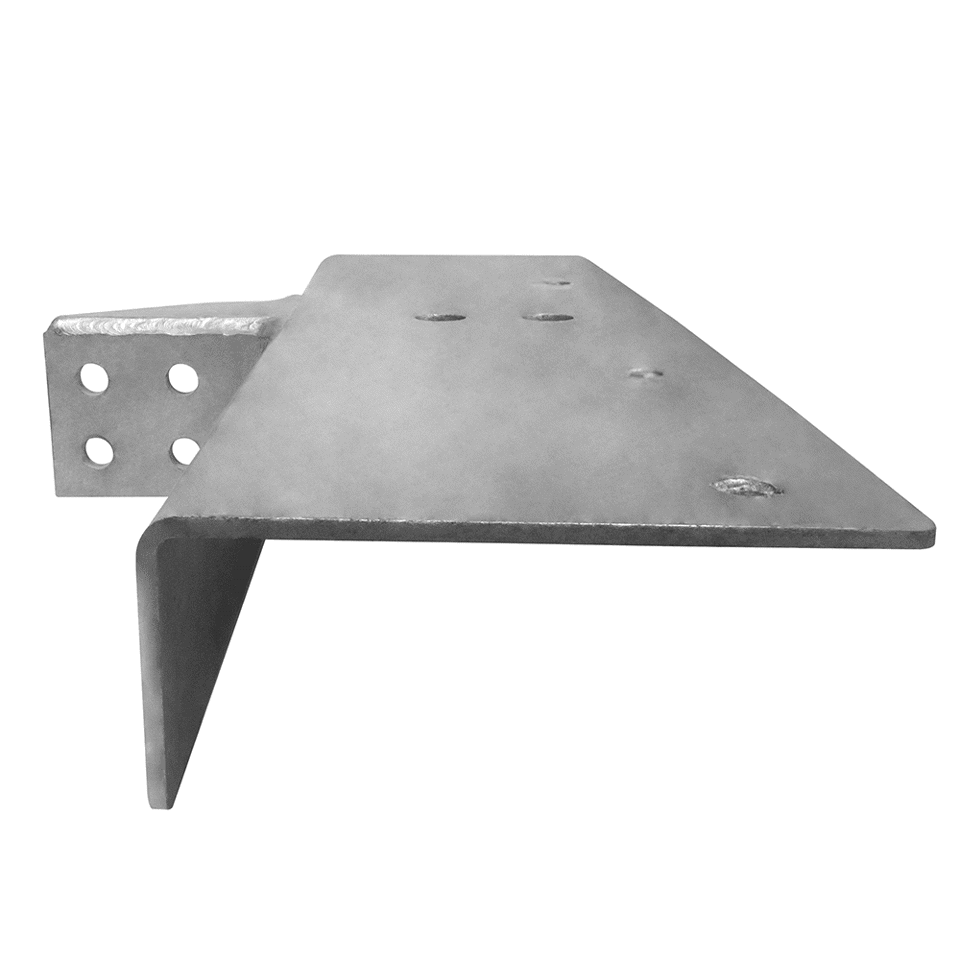

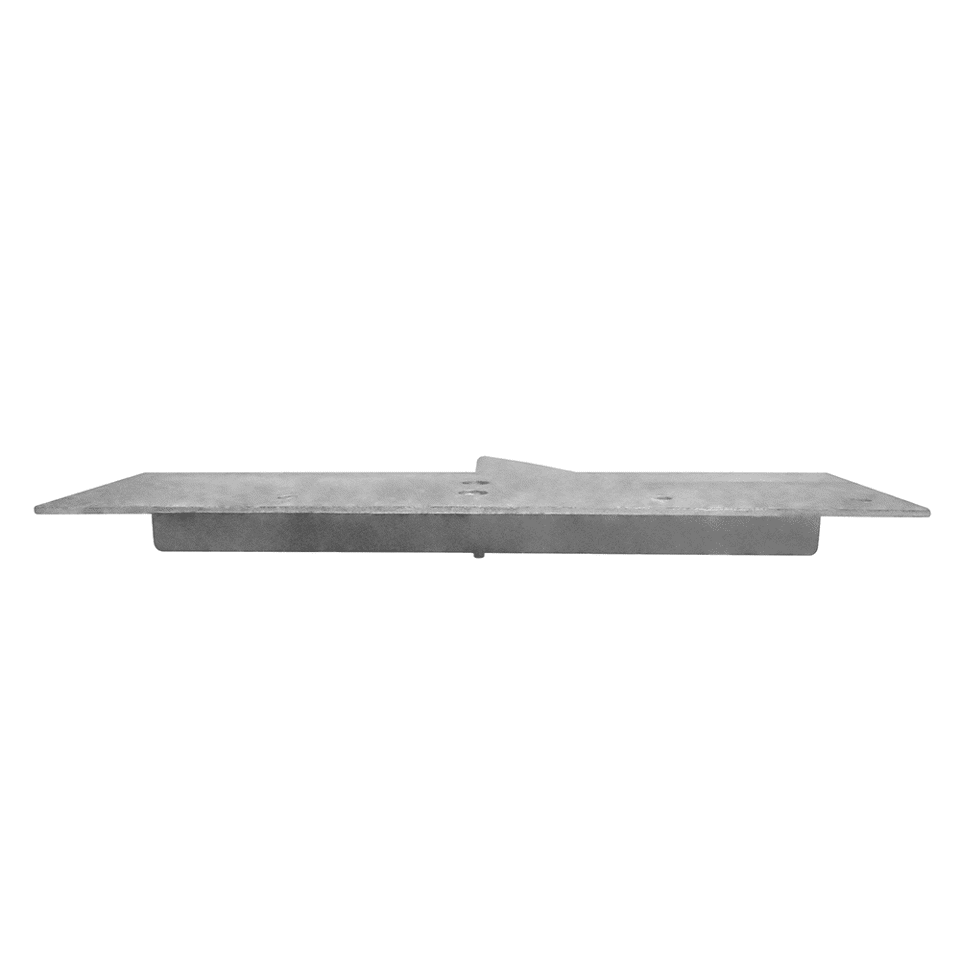

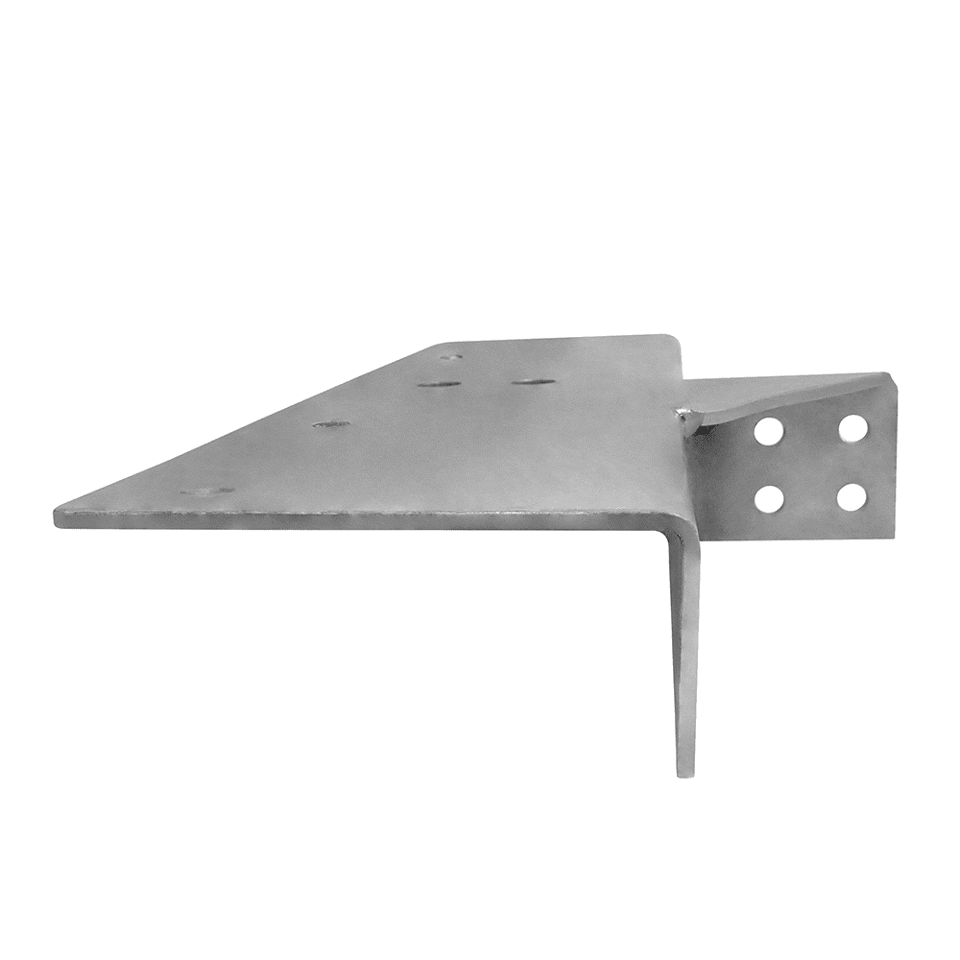

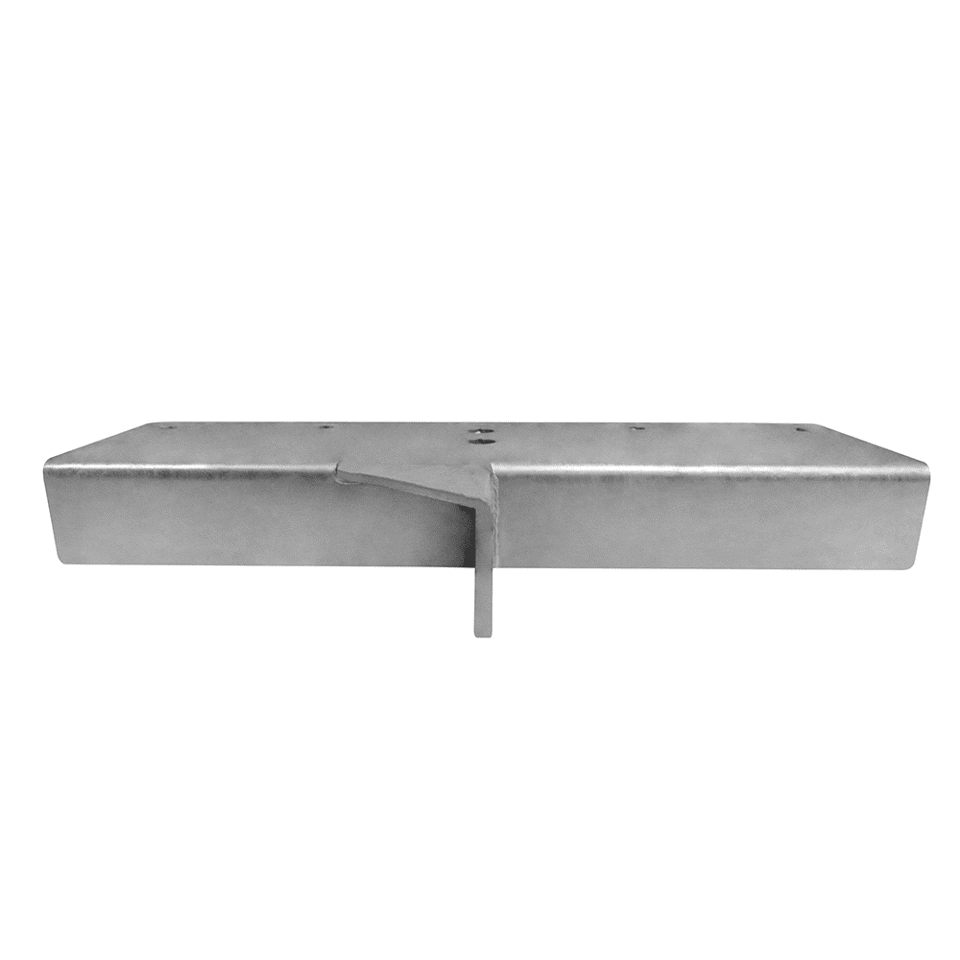

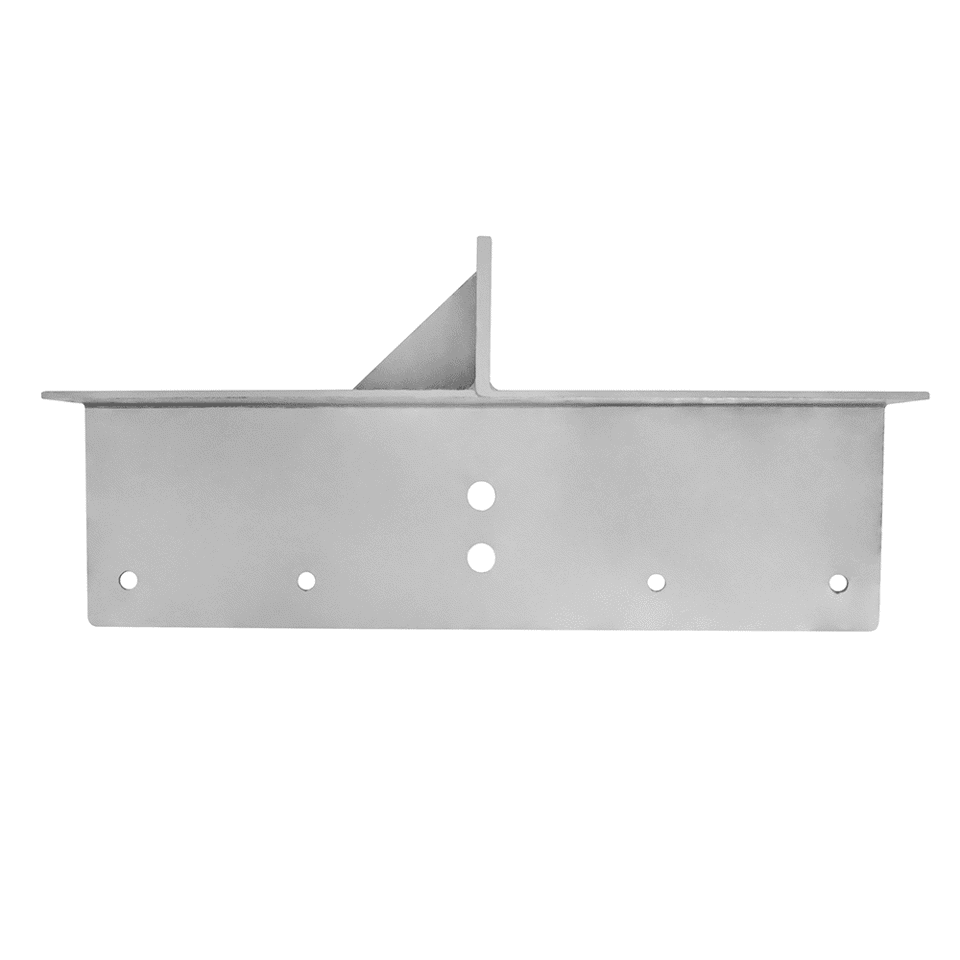

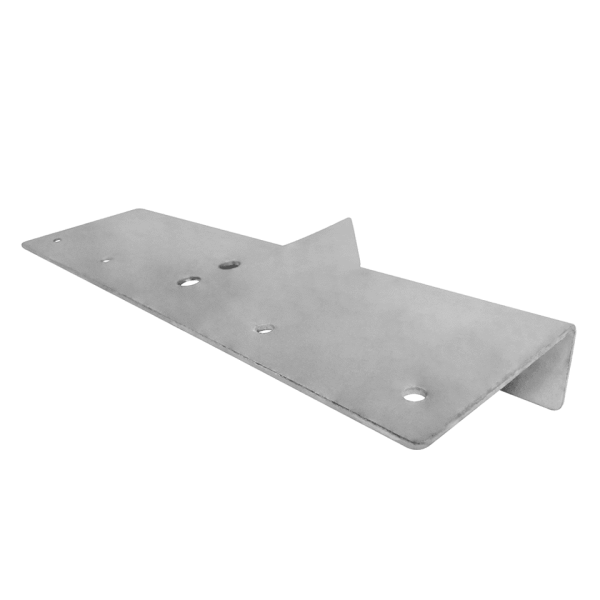

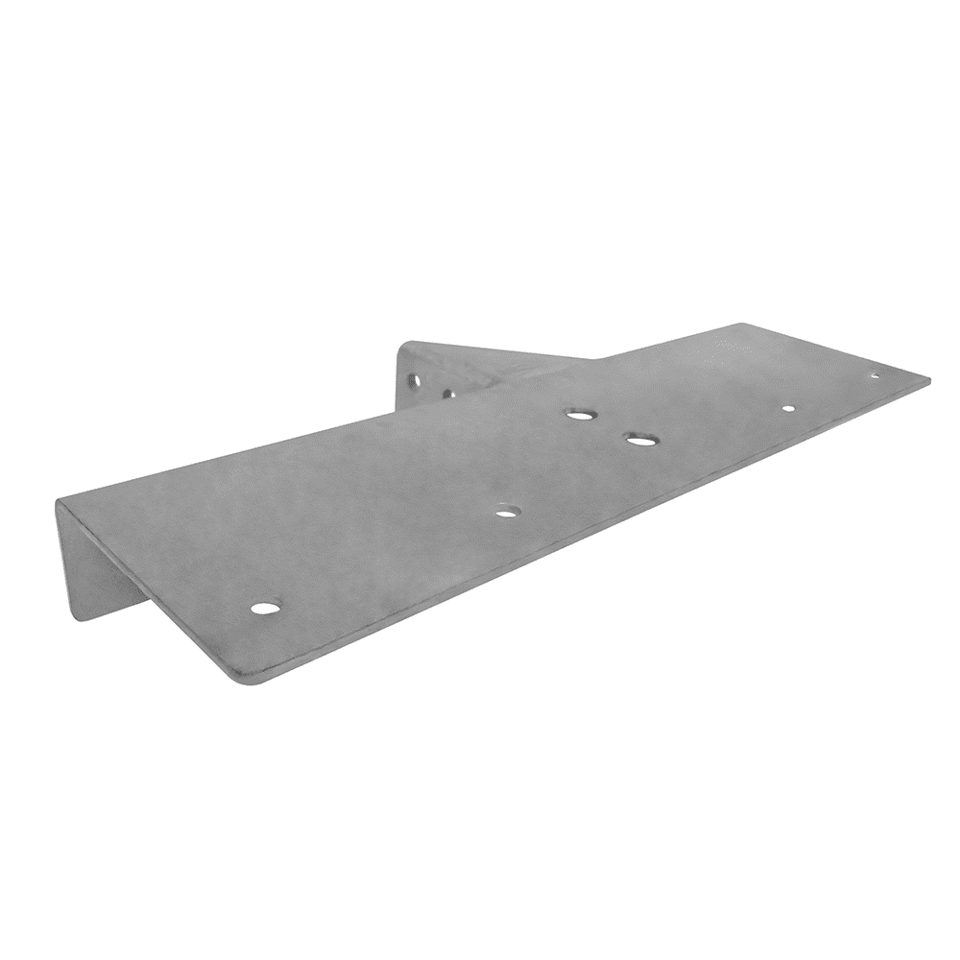

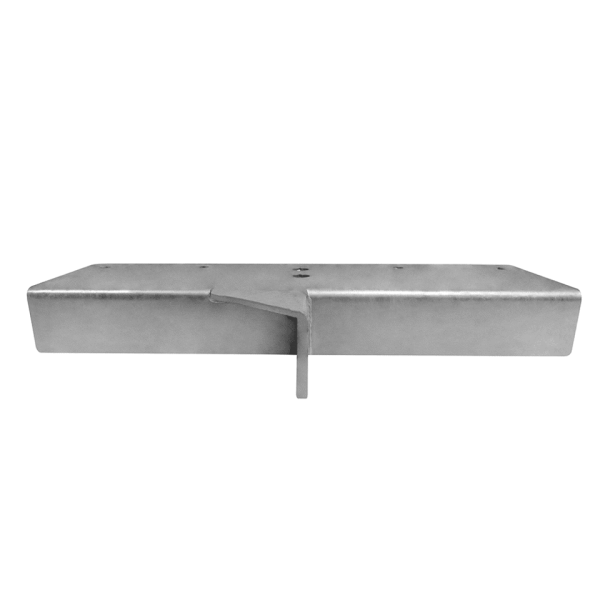

The BH-360 PWC Lift Dock Mount Plate includes a mounting tab and reinforced gusset. Made from hot-dipped galvanized steel. Mounts to the top and the side of the dock. The BH-360 ride pipe attaches to the welded tab. Weights 14 lbs. Top plate measures 24 in. long x 7 in. wide. Welded tab measures 4 in. x 3 in. Centered on the dock plate with a gusset.

BH-360 PWC Lift Dock Mount Plate

Product Details

Product Overview
  • Mounts to the top & side of the dock where ride pipe is installed
  • Install ride pipe onto the welded tab
  • Made from hot-dipped galvanized steel
  • Plate only (no fasteners)
Specifications
Application: BH-360 PWC Lift Purpose: Support for Ride Pipe
Material: Steel Weight: 14 lbs.
Finish: Hot-dipped Galvanized Tab: 1
Type: A572 GR50 Tab Holes: 4
Thickness: 0.375 in. (3/8 in.) Tab Hole Size: 0.50 in. (1/2 in.)
Top Plate Length: 24 in. Side Plate Length: 24 in.
Top Plate Width: 7 in. Side Plate Width: 3 in.
Edge Mounting Holes: 4 Centered Holes: 2
Edge Hole Size: 0.50 in. (1/2 in.) Centered Hole Size: 0.75 in. (3/4 in.)
