BH-360 PWC Lift Ride Pipe
$683.78 - $1,034.16
- Made from hot-dipped galvanized steel
- (3) welded tabs, (4) mounting holes
- Minimum 18 in. into clay bottom
- Round pipe in air
- Mounts to piling and dock
- Not all tabs have to be used
- Ships loose freight only
Special Order
Stock Policy
Shipping Policy
Return Policy
BH-360 PWC Lift Ride Pipe

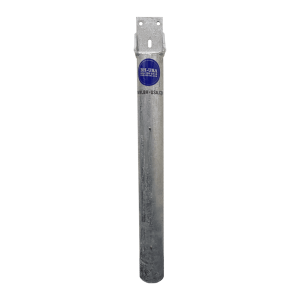

The BH-360 PWC Lift Ride Pipe includes welded tabs to allow mounting to the piling and to the dock mount plate. During installation, the pipe should penetrate a clay bottom by at least 18 inches. The square tubing goes into the clay bottom with the round pipe in the air.
There are (4) machine-punched 1/2 in mounting holes on the (3) welded tabs. It’s not uncommon to install the ride pipe without utilizing all three tabs. To attach to the dock surface, use the top tab closest to the round pipe.
Made from hot-dipped galvanized steel. Constructed from 4 x 4 square tubing. The round pipe and tabs are welded to the square tubing. There are seven inches between the collar and the first welded tab. There are 20 inches between the first tab and the second tab. There are 27 inches between the second tab and the bottom tab.
The length of the square tubing determines the ride pipe length.
Ride Pipes cannot be shipped UPS Ground. The pipes are secured to a pallet and ships via Freight. The end-user is responsible for unloading. Freight companies will not unload or drop off your load if you are not present. It is the purchaser’s responsibility to arrange a delivery date with the freight company. Shipping to a business address with a forklift is highly recommended by BH-USA.
