Boat Lift Switch Cable Gland
Boat Lift Switch Cable Gland

Boat Lift Switch Cable Gland

$ 2.15
  • Fits 14 gauge wire
  • Made halogen-free nylon
  • NPT, according to ANSI B2.1 thread type
  • Suitable for outdoor use
  • IP68 - 5 bar IP protection
  • AVC NPA21-14-G gland
SKU: 81001EL
UPC: 602573202982

In stock

in stock

Free Shipping
×

Free Shipping

BH-USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

×

Shipping

BH-USA has partnered with UPS to offer Ground, Next Day Air, 2nd Day Air, and 3 Day Select services to our customers. In order to ship with these methods, the order must meet UPS's requirements.

Freight

Your order will be shipped via the most cost-effective method possible. All shipping and handling charges are the responsibility of the customer. Additionally, they are responsible for any delivery issues that may hinder delivery. In such cases, extra fees can apply, such as residential delivery fees.

Click the button below to learn more about our ordering and shipping policies.

Our Shipping Partners shipping modal logos

Qty.



Boat Lift Switch Cable Gland

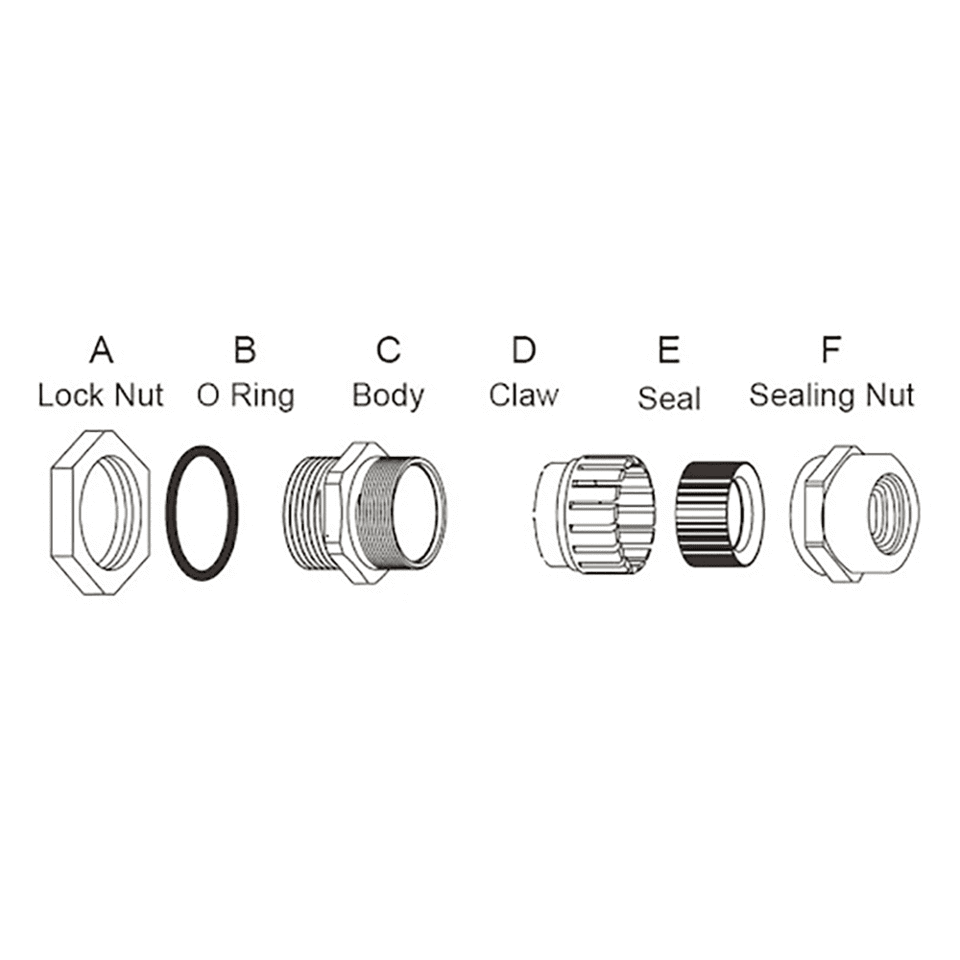

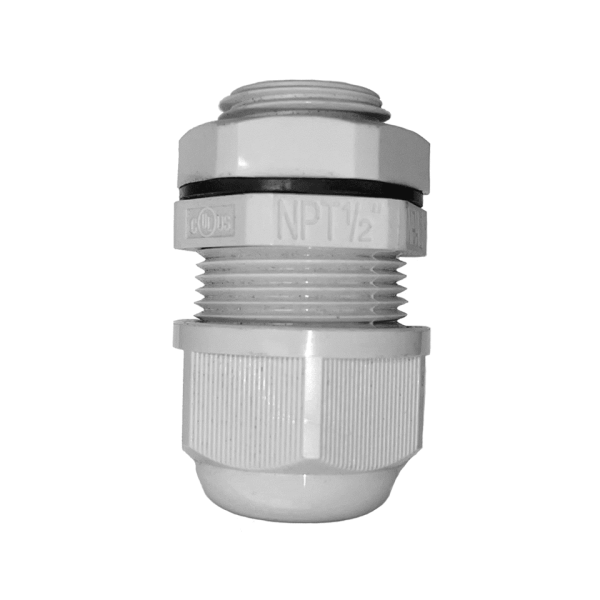

The Boat Lift Switch Cable Gland is an NPT Type A plastic cable gland. Designed to fit 14 gauge wire. The NPA21-14-G includes lock nut, O-ring, body, claw, seal, and sealing nut. Designed to attach and secure the end of an electrical cable to the equipment. Also known as a cord grip, cable strain relief, cable connector, or cable fitting. We use the glands to connect SJTW 14/5 boat lift control cable to Bremas brand drum switches.

Thread Type: NPT, according to ANSI B2.1.

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.E.F parts.
Weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications).
Suitable for outdoor use.  Subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure was performed by using a xenon-arc weather meter for 1000 hours and intermittent exposure to water spray.

IP Protection: IP68 – 5 bar.

Working Temp.: – 40°C to 105°C. Short-Term to 160°C.

Application: The reined polyamide cable gland with AVC’s special A or B-type clamping & sealing design has been proven it’s worth over the years providing strong strain relief & watertight performance over an entire cable range from their wide variety of body sizes & sealing inserts. AVC UL-certified cable glands have outstanding weather resistance and durability in outdoor/indoor cable.
