Galvanized Pontoon V Bracket Backup Plate
Galvanized Pontoon V Bracket Backup Plate

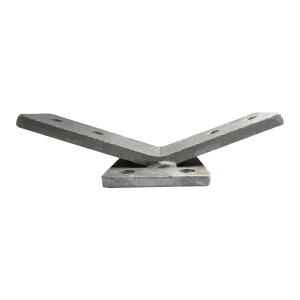

The Galvanized Pontoon V Bracket Backup Plate allows (2) wooden cradle bunks to be mounted in a “v” shaped pattern. Made from hot-dipped galvanized steel. The backup plate fits on the backside of a cradle beam. The top bracket sits on top of the cradle beam. Use carriage bolts to clamp onto the cradle beam. The backup plate fits 4 in. and 5 in. galvanized cradle beams. Also works on an 8 in. galvanized cradle beam. Features (4) 5/8 in. mounting holes.
Wood beams, top bracket, and mounting fasteners not included.
Pontoon Instructions
You will need 4 brackets. Install the bracket using carriage bolts and a backplate that secures the bracket around the galvanized cradle beam.
Tritoon Instructions
You will need 6 brackets. Install the bracket using carriage bolts and a backplate that secures the bracket around the galvanized cradle beam.
Specifications
| Measurements: | 6 in. x 4 in. x 5/8 in. |
| Material: | Steel |
| Finish: | Hot-dipped galvanized |
| Mounting Holes: | 4 |
| Hole Size: | 5/8 in. |
| Weight: | 2.45 lbs. |
| Hole Size: | 5/8 in. |
| Hole Distance (L): | 3 3/4 in. |
| Hole Distance (H): | 1 9/16 in. |
Product Overview
{{dc:woocommerce:product_short_description}}
You may also like…
-

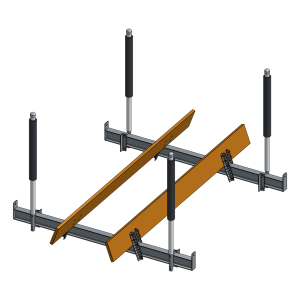

12,000 lb. Galvanized Steel V-Hull Boat Cradle
$1,767.25 – $2,079.75 Select options This product has multiple variants. The options may be chosen on the product page -

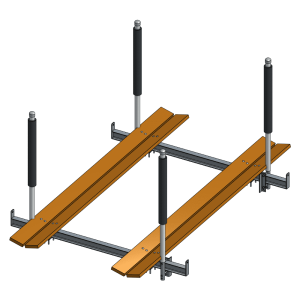

12,000 lb. Galvanized Steel Pontoon Boat Cradle
