Galvanized Pontoon V Bunk Top Bracket

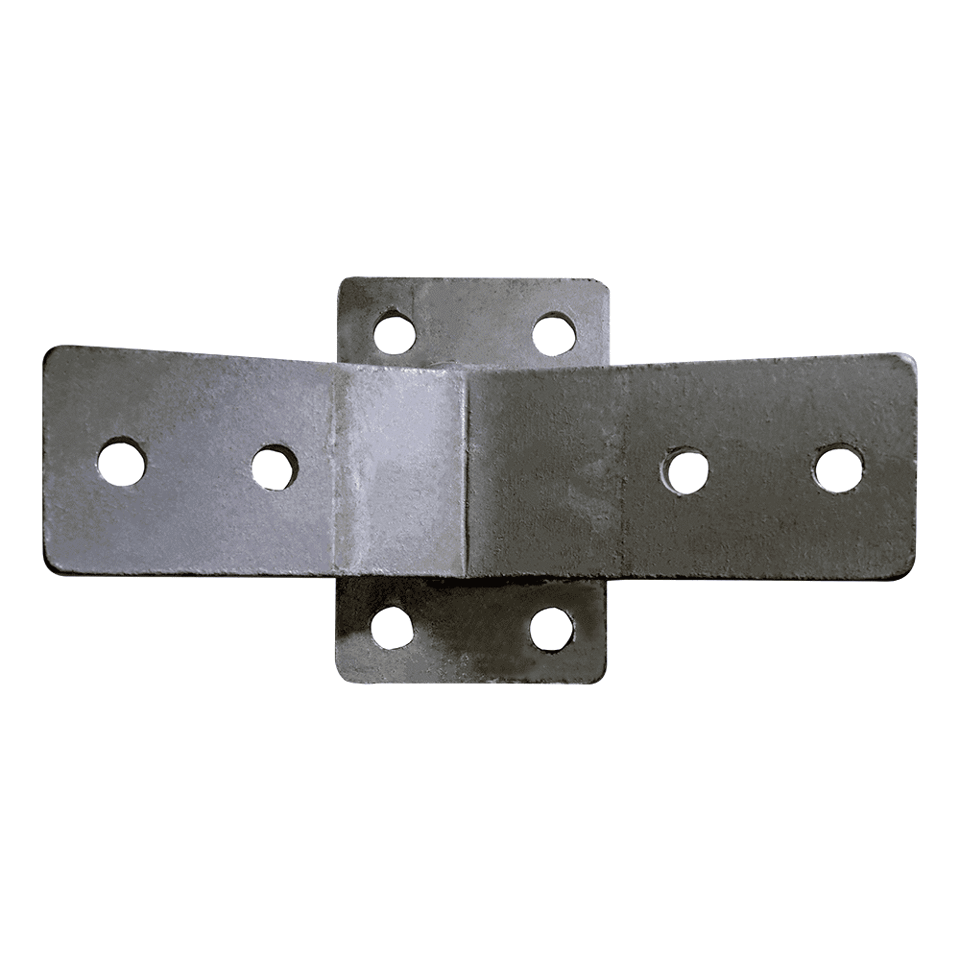

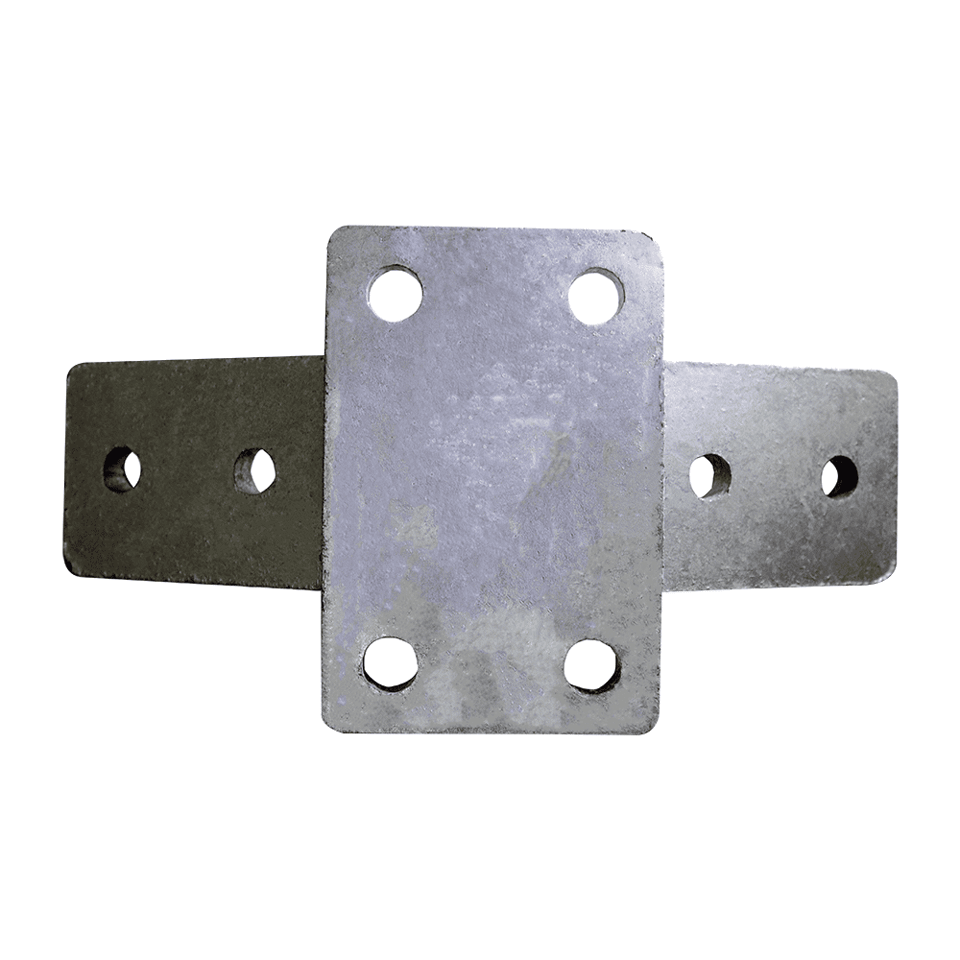

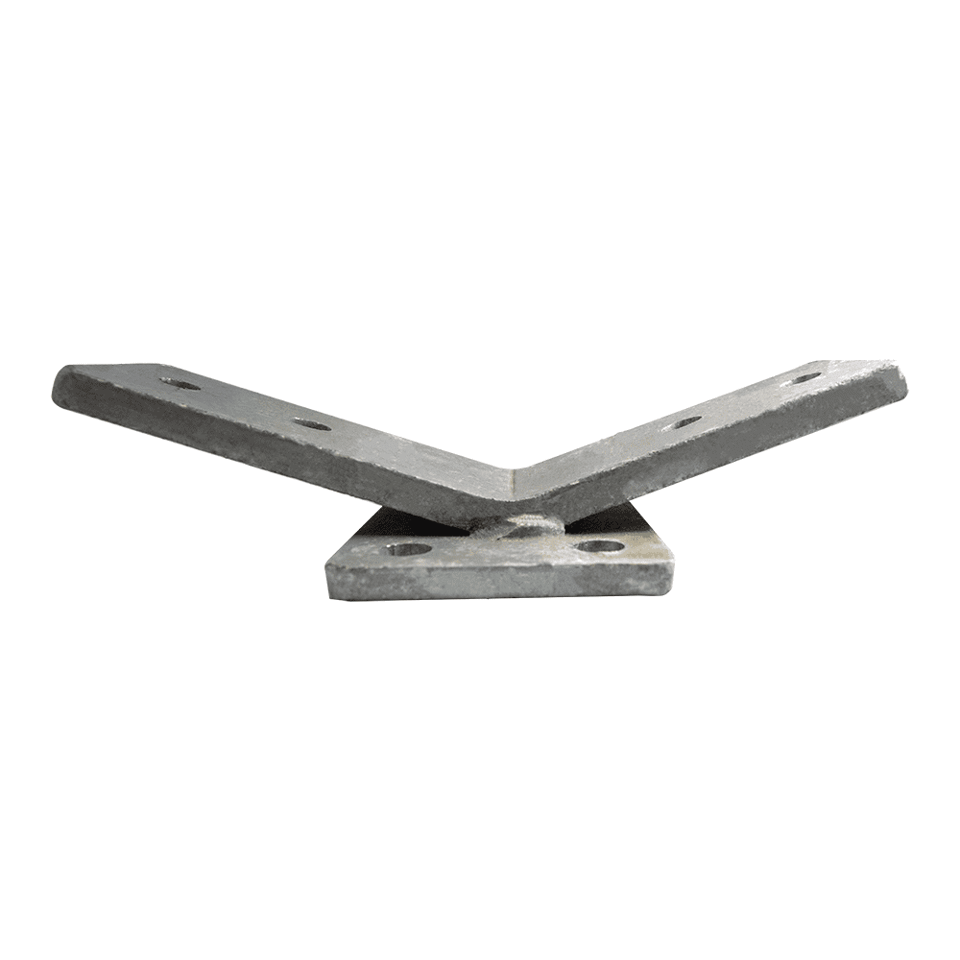

The Galvanized Pontoon V Bunk Top Bracket allows the installer to mount (2) wooden cradle bunks into a “v” shaped pattern. Made from hot-dipped galvanized steel. The bracket mounts on top of the galvanized boat cradle beam and uses a backup plate to “clamp” onto the cradle beam. The top bracket fits 4 in., 5 in., and 6 in. galvanized cradle beams.
Wooden beams, backup plate & mounting fasteners not included.
Pontoon Instructions

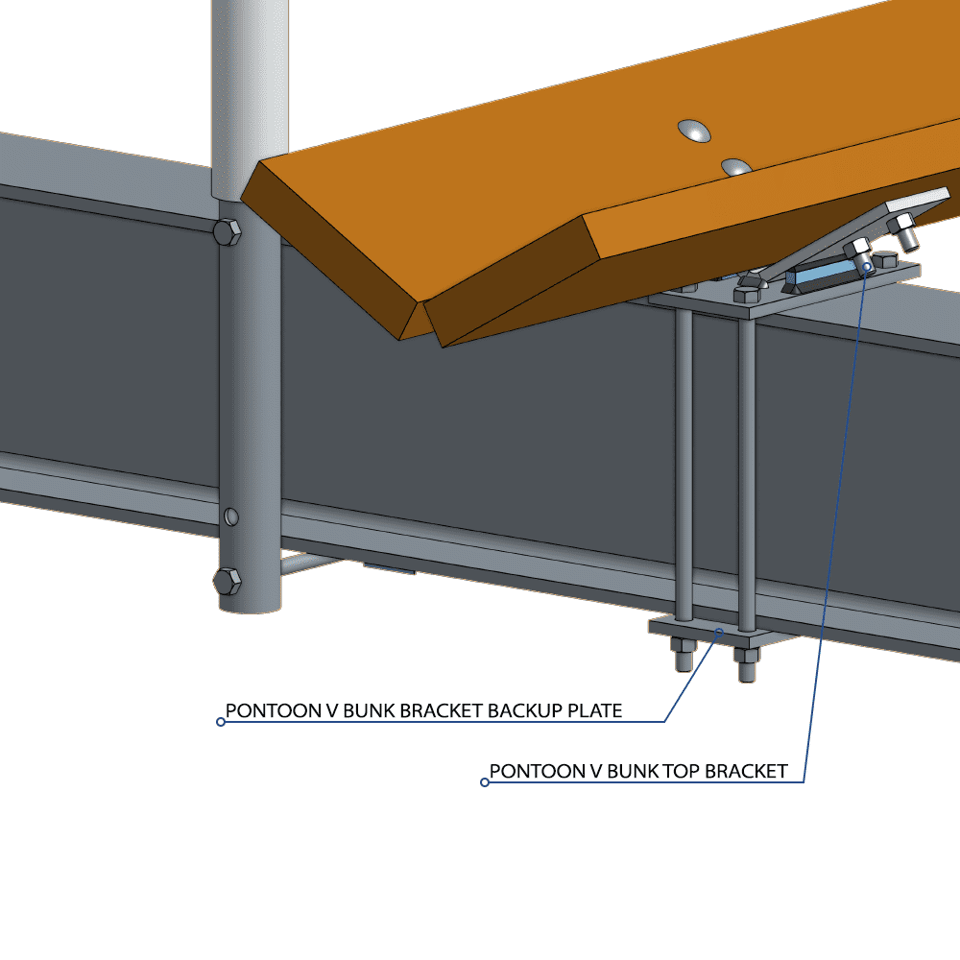

You will need 4 brackets. Install the bracket using carriage bolts and a backplate that secures the bracket around the galvanized cradle beam.
Tritoon Instructions
You will need 6 brackets. Install the bracket using carriage bolts and a backplate that secures the bracket around the galvanized cradle beam.
Specifications
| Weight: | 7.5 lbs. |
| Material: | Steel |
| Hardware: | Not Included |
| Finish: | Hot Dipped Galvanized |
| Max. Flange Size: | 3 3/4 in. |
| Bunk Mounting Brackets: | 6 in. from Center |
| Total Wingspan | 12 in. |
| Bunk Mounting Holes: | 4 |
| Bunk Mounting Hole Size: | 5/8 in. |
| Bunk Mounting Hole Pattern: | 2 per Side (Centered) |
| Flat-Plate Measurements: | 6 in. x 4 in. x 5/8 in. |
| Flat-Plate Mounting Holes: | 4 |
| Flat-Plate Mounting Hole Size: | 5/8 in. |
| Flat-Plate Hole Pattern: | 2 per Side |
| Material: | Steel |
Bunk Bracket will not fit H-Beam flange or WF beam flange configuration.
