Gulf Breeze A-Drive Hoist Hanger
Gulf Breeze A-Drive Hoist Hanger

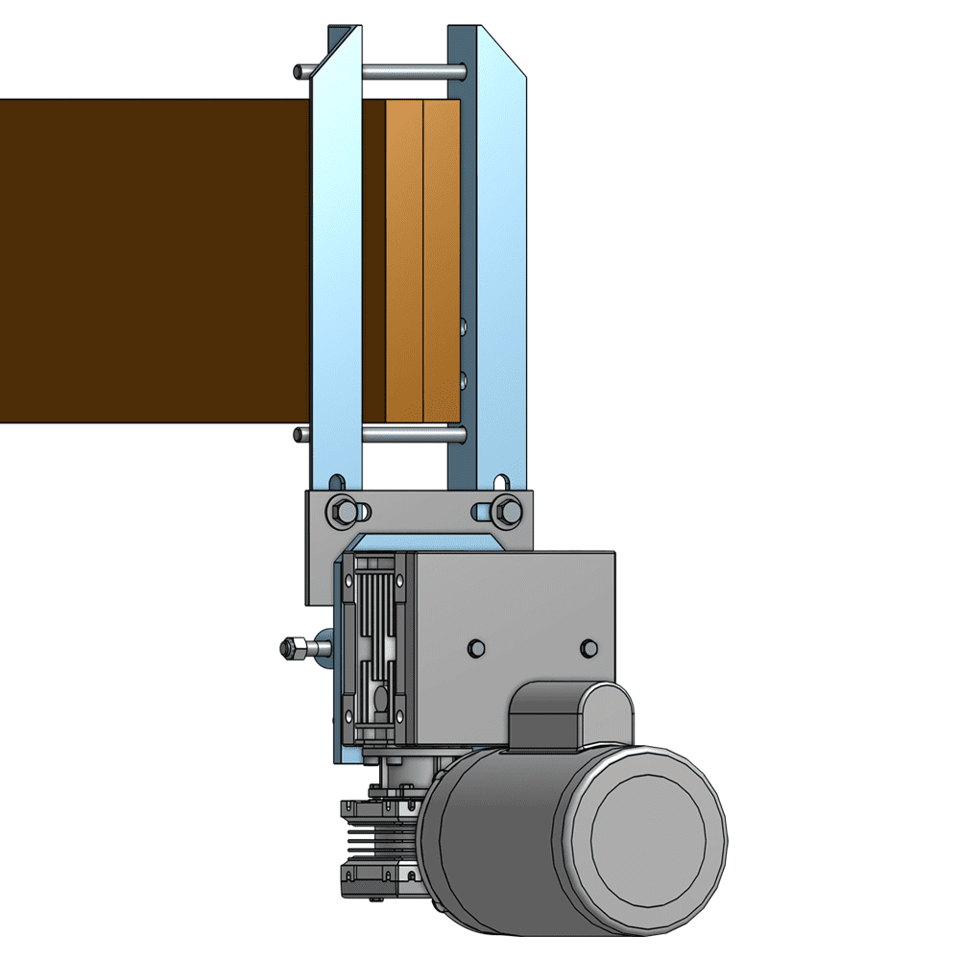

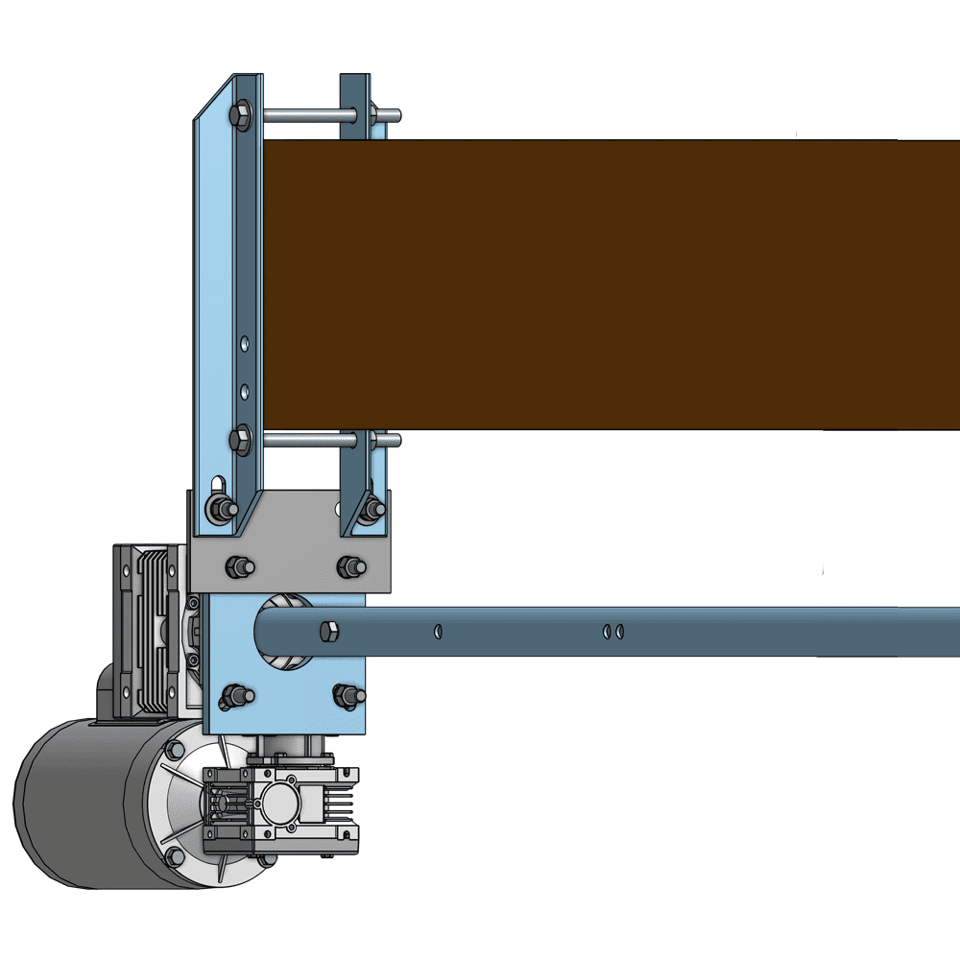

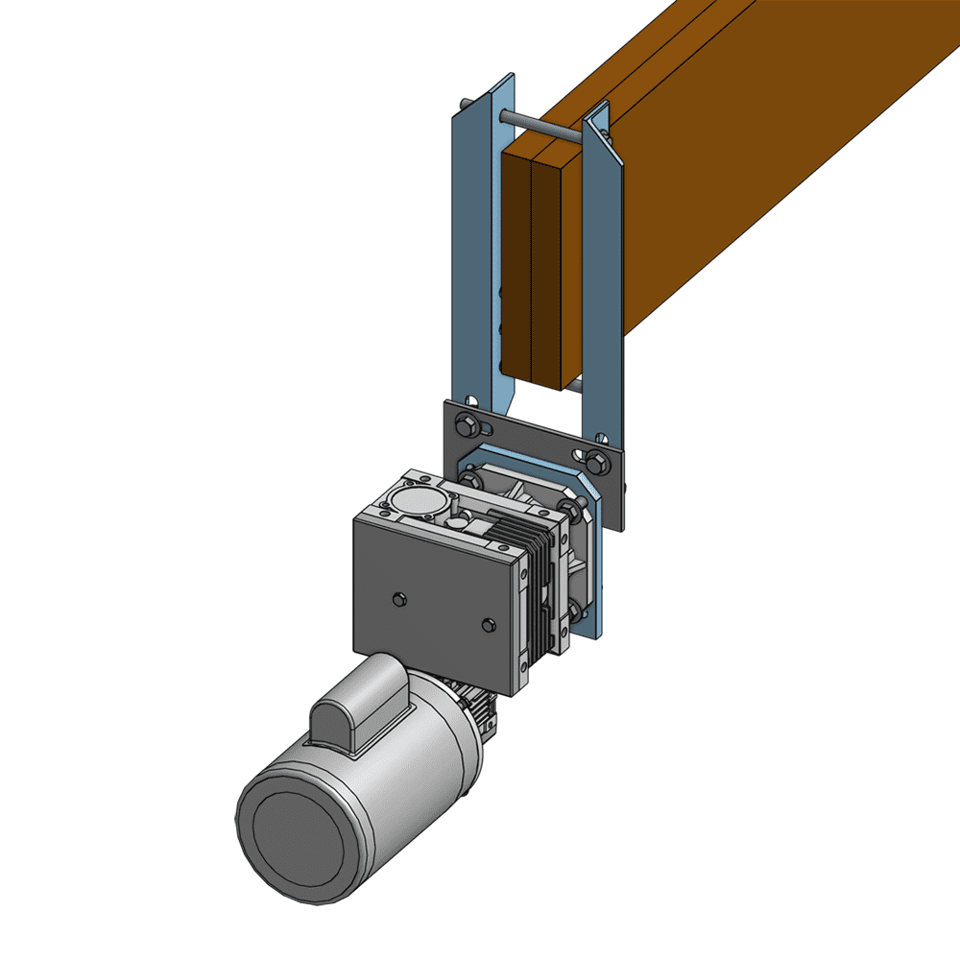

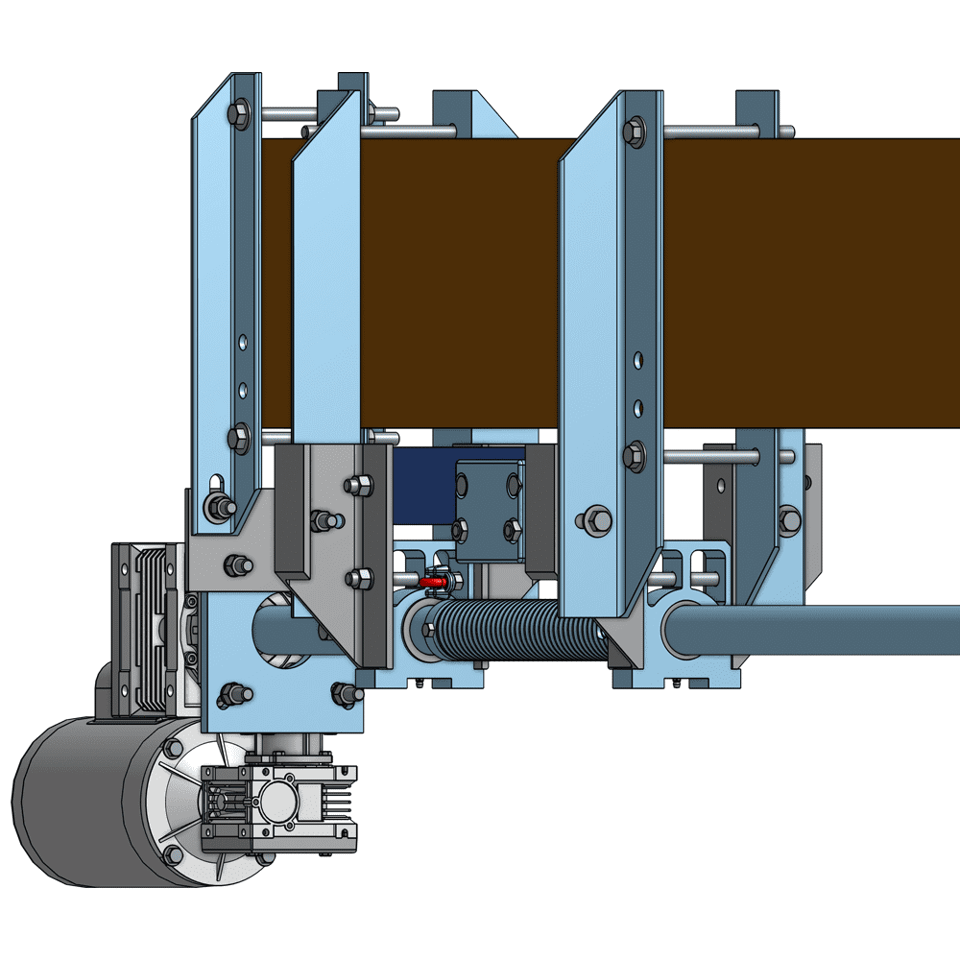

The Gulf Breeze A-Drive Hoist Hanger is used to hold the weight of the direct-drive hoist on the overhead wood beams. Mounting bolts on the top and bottom of the wooden beam hold it into place. Fully adjustable for different size wood joists. Includes 6 in. mounting bolts for beams up to 6 in. wide wooden beam. The Gulf Breeze gets its name from the Florida coastal area that inspired the design.

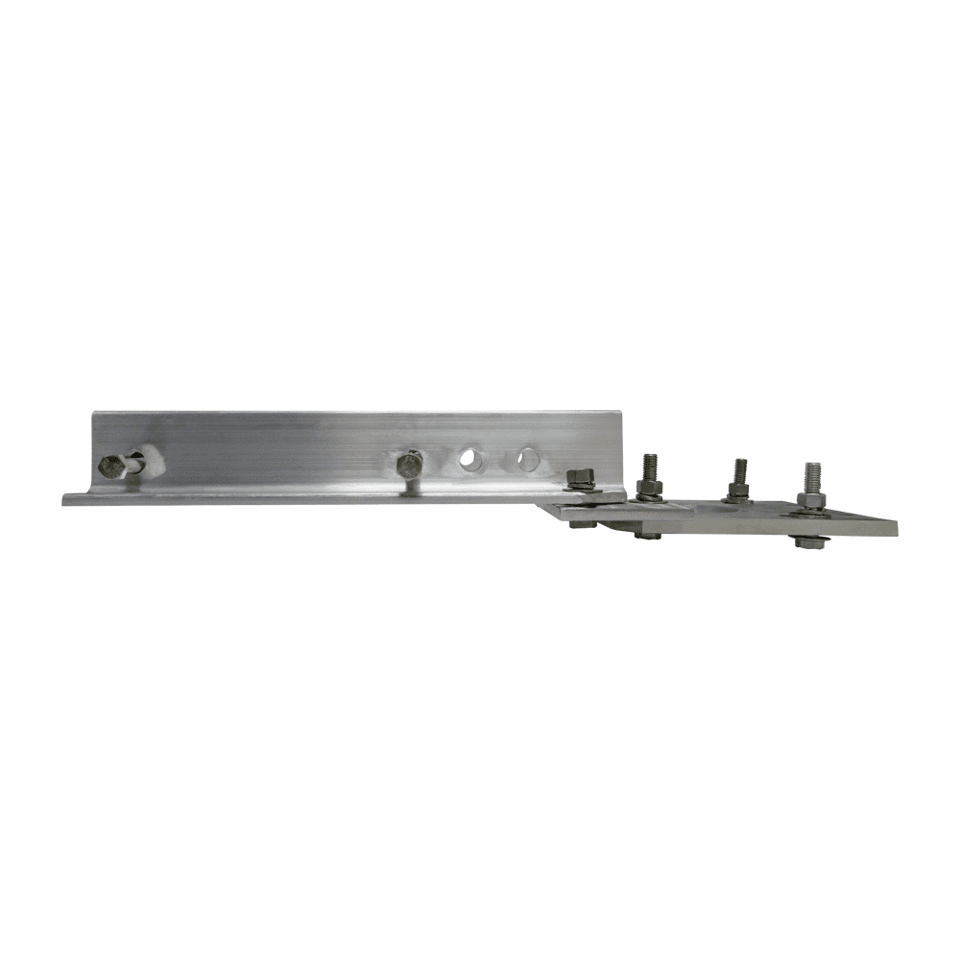

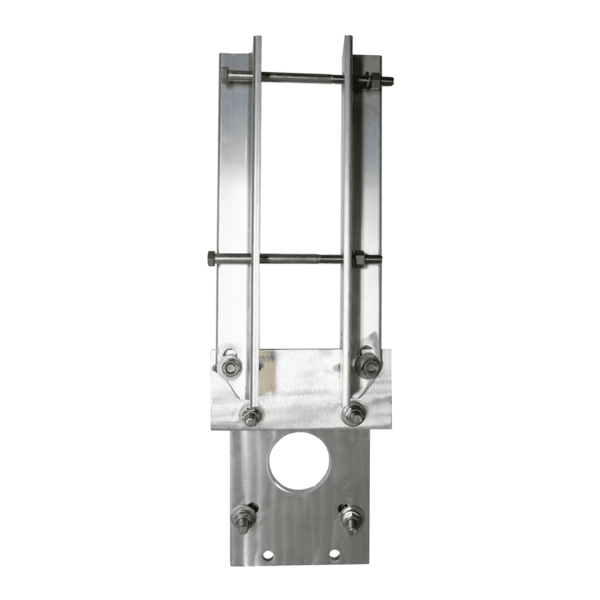

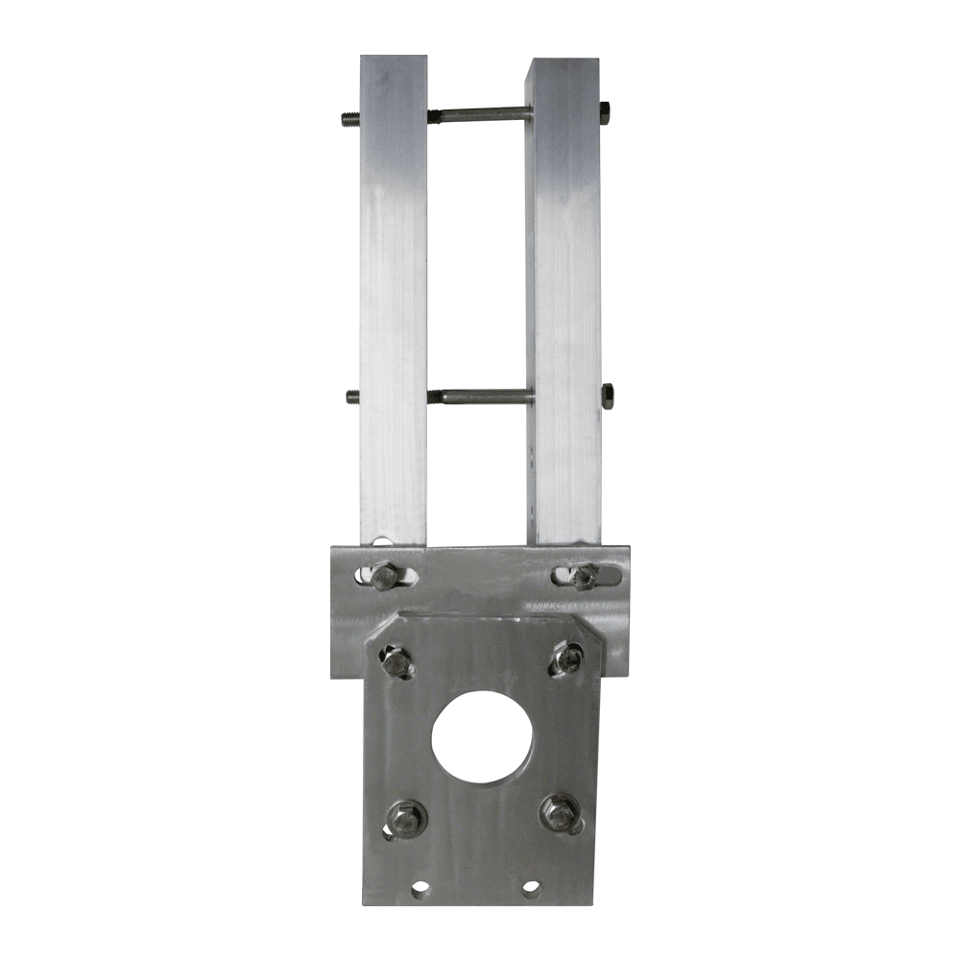

Made from 6061-T6 US aluminum. It uses two angled aluminum pieces that secure the sides of the joist. The pieces mount to a flat plate with adjustable slots. The slots allow for widening the wood joist mounts. The flat plate connects to the hoist plate. The drill-punched flat plate has the A-Drive direct drive mounting bolt pattern.
Assembly required.
Specifications
| Mounting Brackets | 2 |
| Bracket Mounting Holes | 4 Per Bracket |
| Height Adjustment Mounting Holes | 3 Per Bracket |
| Height Anchor Mounting Holes | 1 Per Bracket |
| Mounting Hole Size | 1/2 in. |
| Mounting Plate Mounting Holes | 1 Per Bracket |
| Mounting Plate Mounting Hole Size | 1/2 in. |
| Mounting Plate Measurements | 9 in. L x 1/2 in. W x 7 in. H |
| Mounting Plate Type | Direct-drive hoist |
| Mounting Holes | 4 |
| Mounting Hole Size | 1/2 in. |
| Material | Aluminum |
| Mount Type | Wood Beams |
| Hardware | Included |
| Bolts | 8 |
| Bolt Size (Short) | (2) 1/2 in. x 1 3/4 in. |
| Bolt Size (Medium) | (4) 1/2 in. x 2 1/2 in. |
| Bolt Size (Long) | (2) 1/2 in. x 6 in. 50% Thread |
| Bolt Type | Hex Head |
| Bolt Material | Stainless Steel |
| Lock Washers | 8 |
| Washer Size | 1/2 in. |
| Bolt Material | Stainless Steel |
| Flat Washers | 16 |
| Washer Size | 1/2 in. |
| Bolt Material | Stainless Steel |
| Nuts | 8 |
| Nut Size | 1/2 in. |
| Bolt Material | Stainless Steel |
| Assembly | Required |
