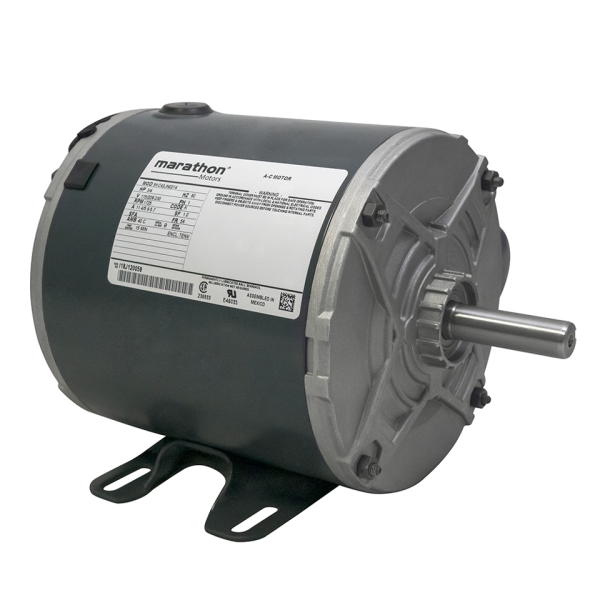

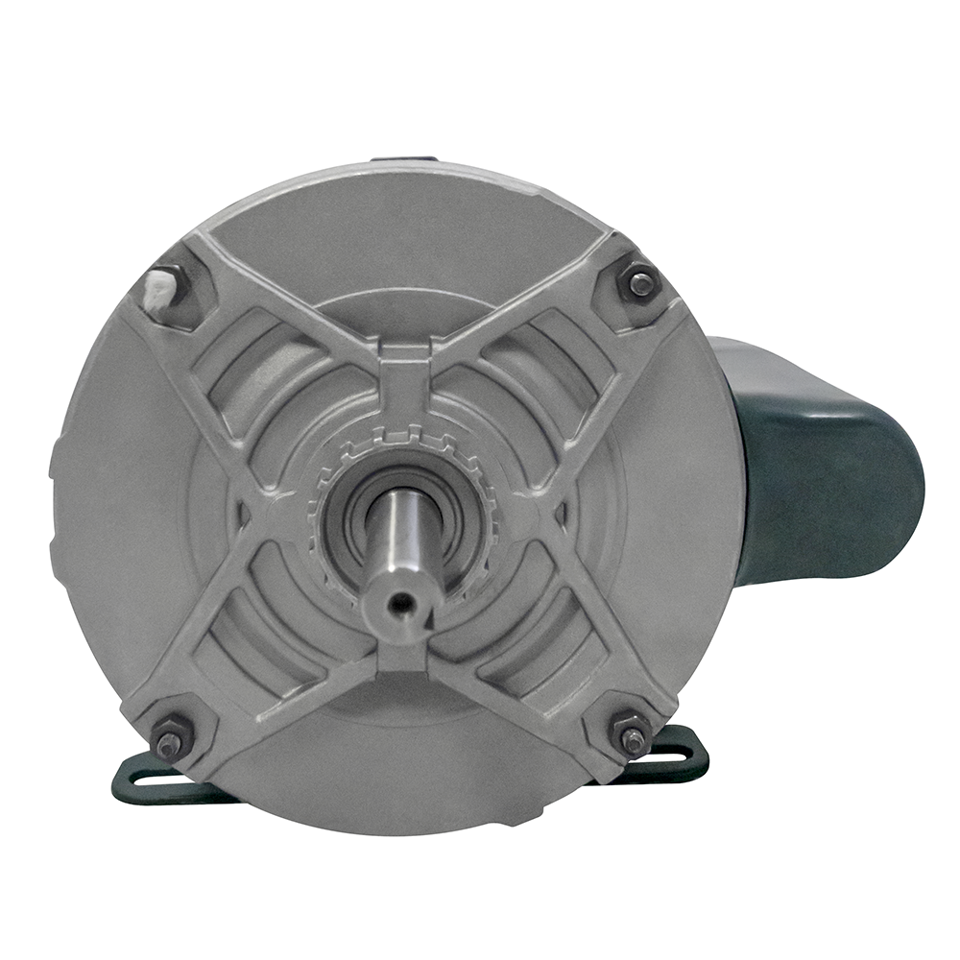

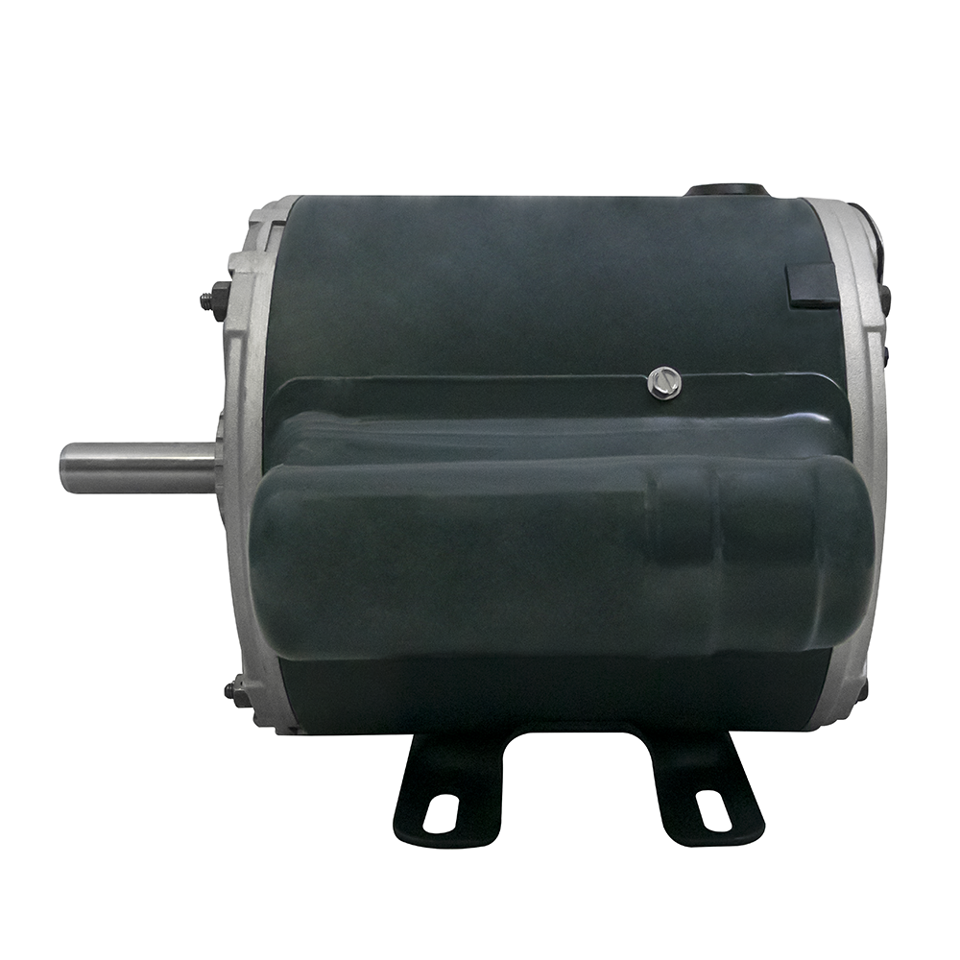

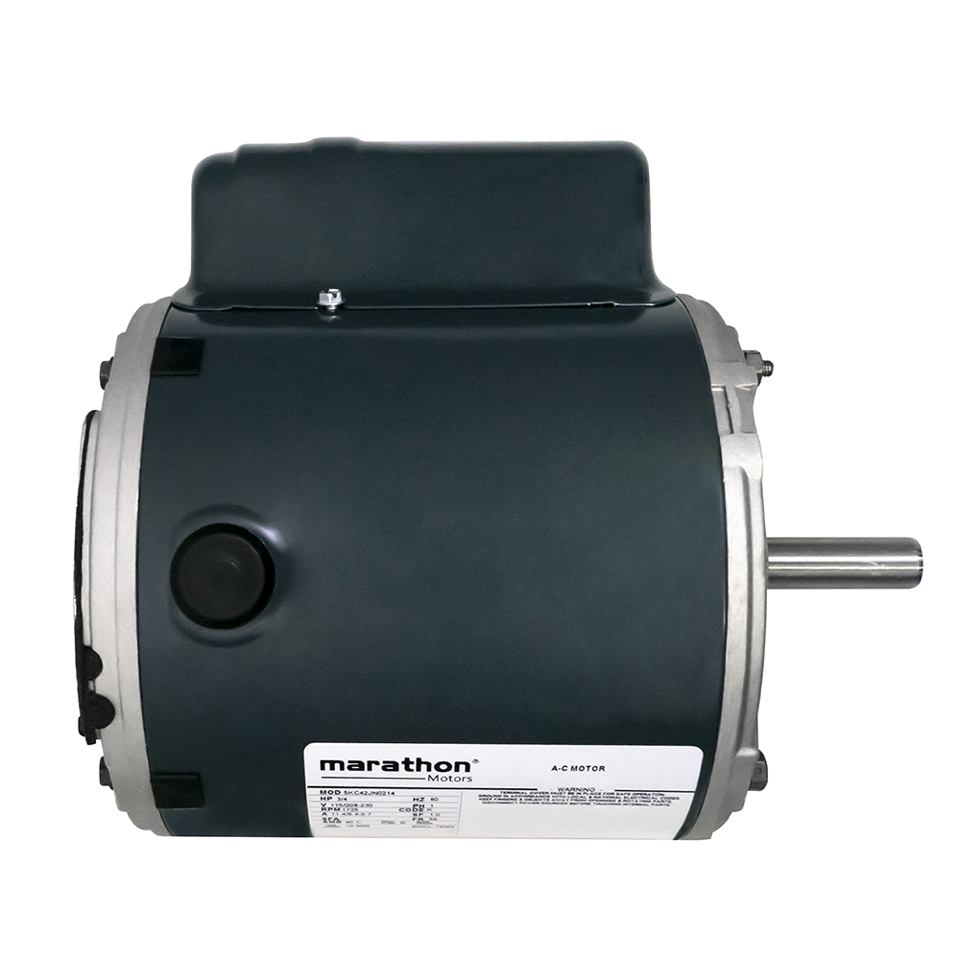

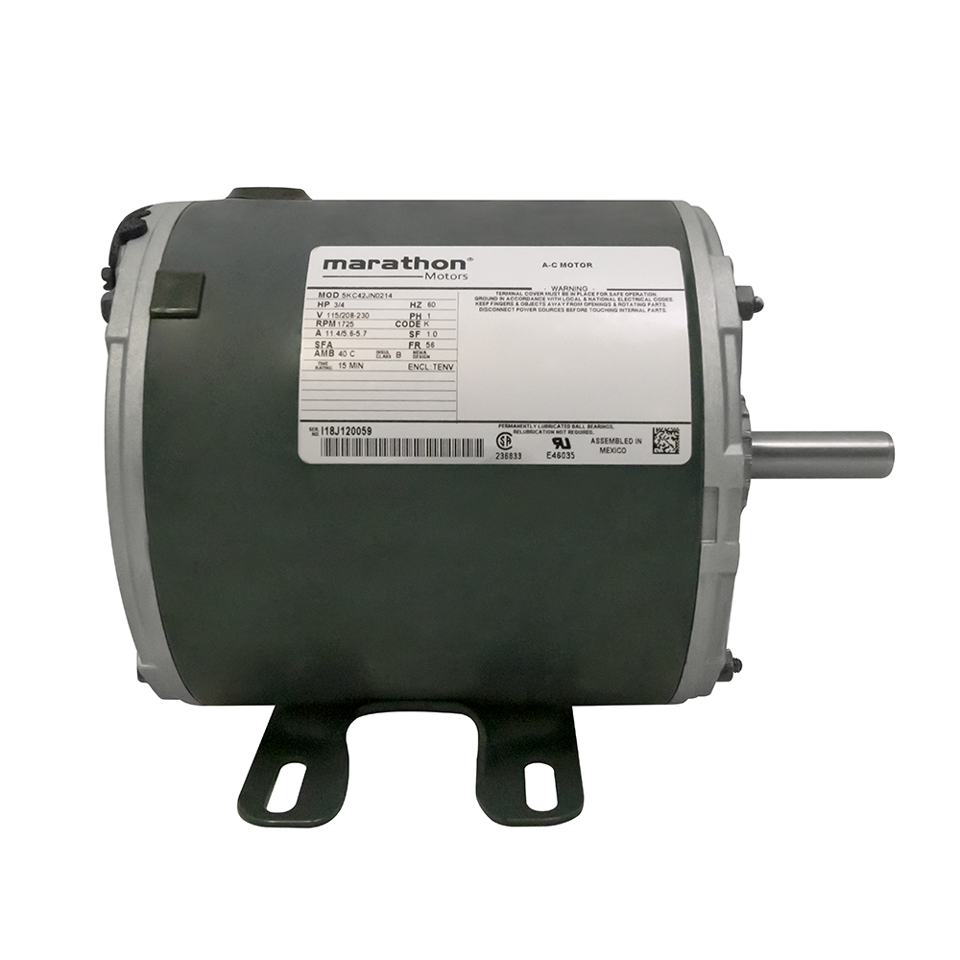

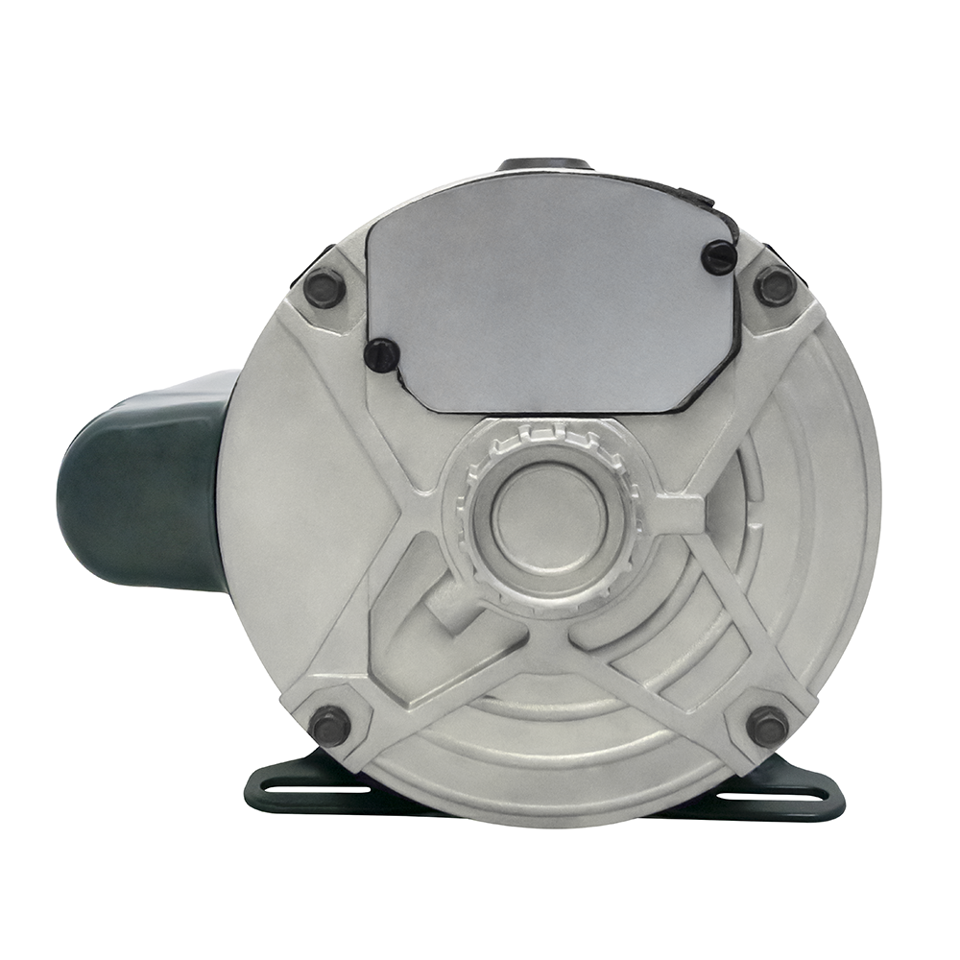

Marathon 3/4 HP Painted Electric Motor

Marathon’s 3/4 HP Painted Electric Motor is a single-phase, dual voltage motor with a start capacitor. The motor is factory-wired to run at 220 volts. A licensed electrician can rewire the motor to run at 110 volts. Compatible with all BH-USA flat-plate hoists and gear plates.

The motor is a NEMA 56-frame motor. UL/CSA listed and approved. TENV (totally enclosed, non-ventilating) housing. The TENV housing serves as a barrier against dirt, insects, and water entering the motor.

This motor has a maximum runtime of 15 minutes. Finished in black. Includes colored T-wires. The electric motor comes with easy-to-follow instructions. Included are BH-USA’s equipment guide and wiring instructions.

Clawfoot Motors

A clawfoot motor is a general-purpose motor. At BH-USA, these are used with flat-plate hoists. With clawfoot mounting slots, a standard flat-plate hoist can be easily mounted. By attaching a belt and pulley to the drive shaft, the motor can rotate the pulley. The belt will move as a result.
