Pontoon Deck Support Bracket

$ 55.97
SKU: BH04748
UPC: 091037047489

available

Free Shipping
×

Free Shipping

Boat Hoist USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

Qty.

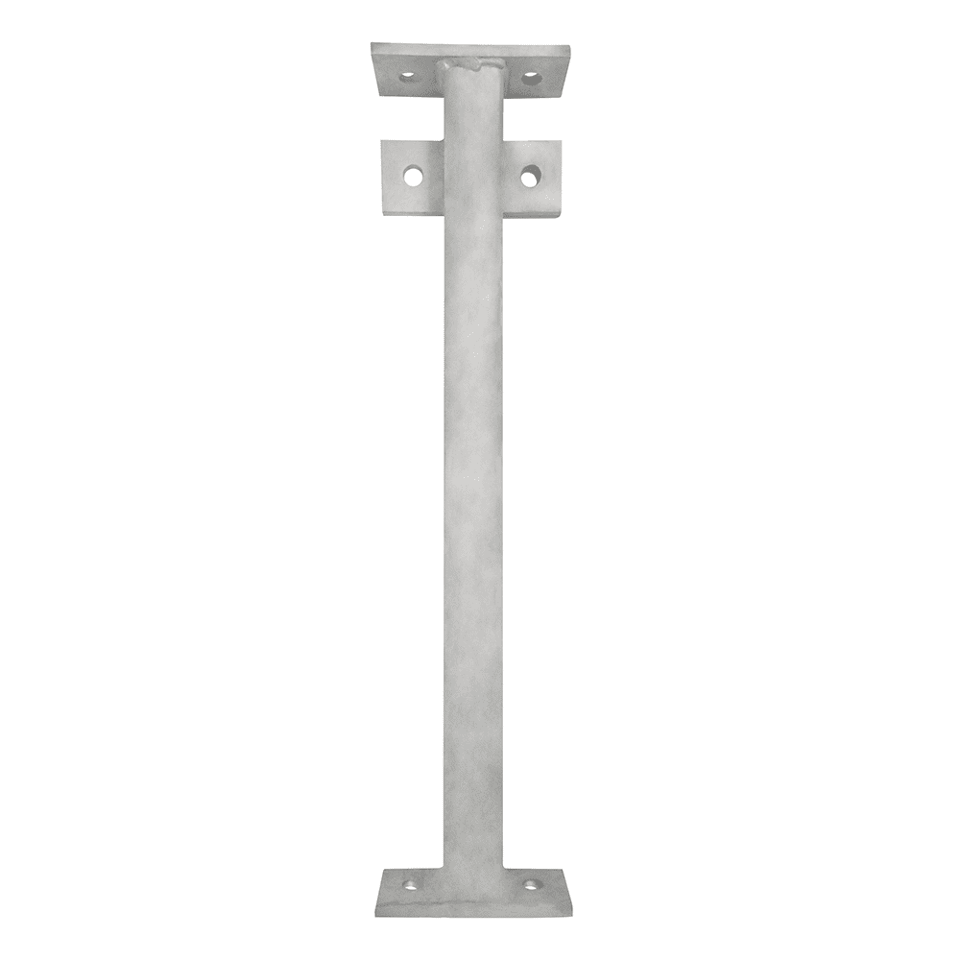

Pontoon Deck Support Bracket

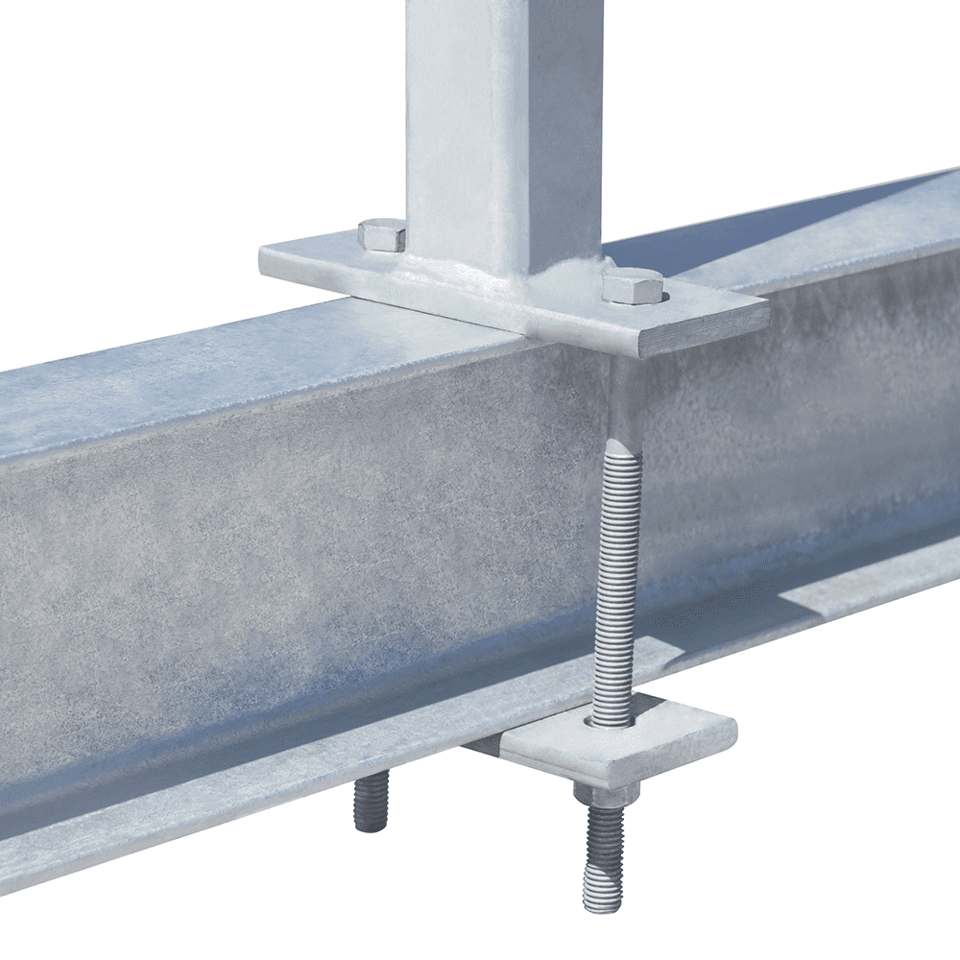

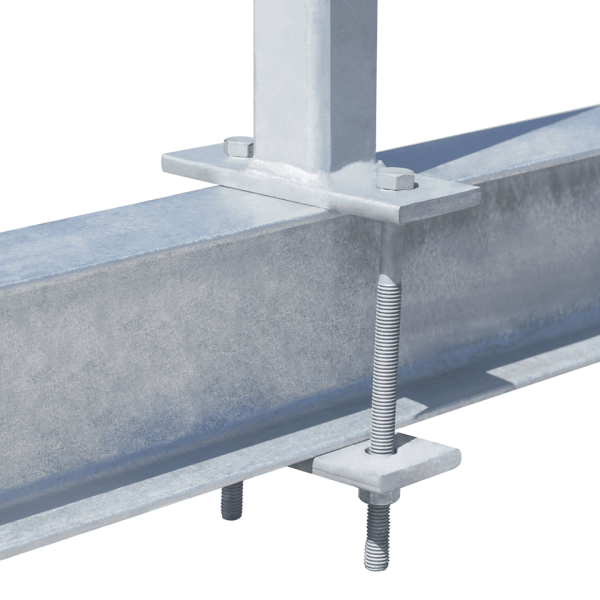

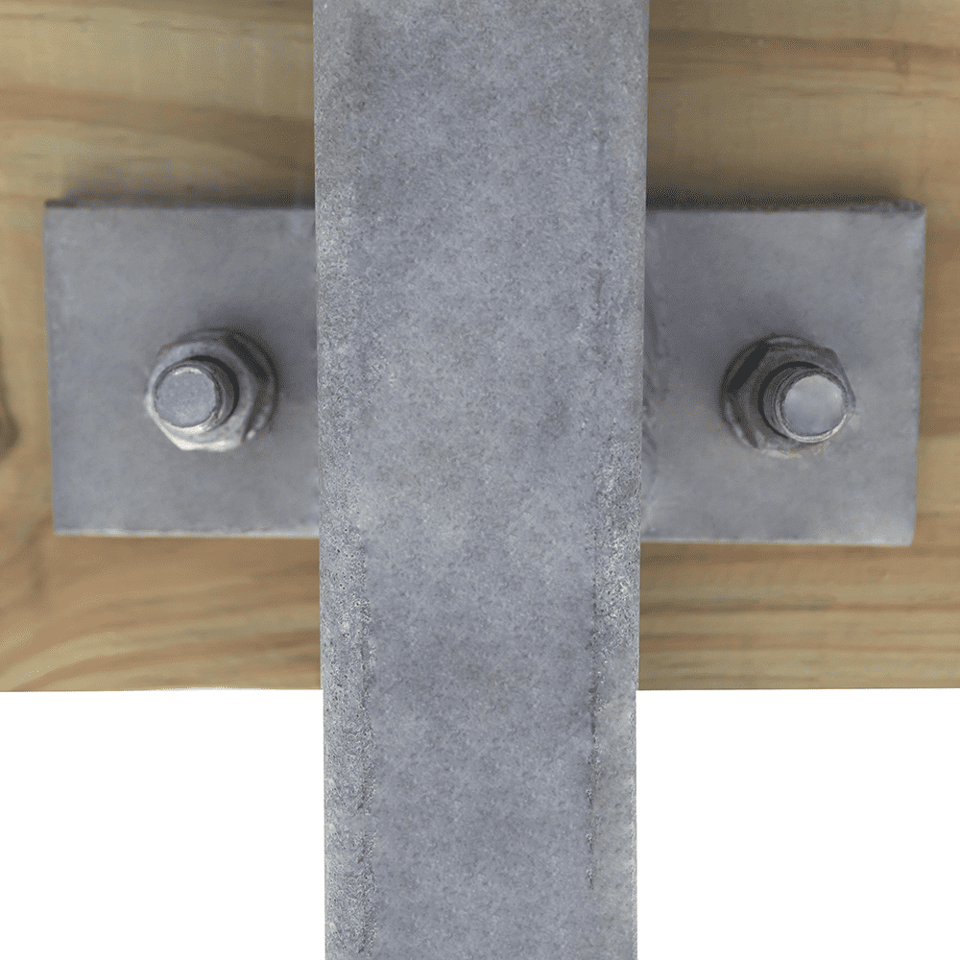

The Pontoon Deck Support Bracket is a support bracket for the deck of the pontoon boat. It installs directly to galvanized cradle beams with the bracket and backup plate. The bracket keeps the pontoon weight rest on the brackets and not on the pontoons. Made from hot-dipped galvanized steel. Wood beams are mounted to the top and the side with the welded flat bar plates. All machine-punched mounting holes. 3/8 in. thick flat bar plates.

One bracket included.
Backup plate, mounting fasteners, and wood beams not included.

Galvanized Steel

Created by dipping standard steel into molten zinc by a process called hot dipping. The layer of zinc serves as a protectant from corrosion. The protectant makes galvanized steel the best option for seawater environments. Galvanized steel typically has a rough surface and can vary in color. There is no uniform finish for this type of steel.

Galvanized steel is ideal for marine environments because of its protective layer over carbon steel. Stainless steel will react with salt water resulting in rust. The zinc layer on galvanized steel prevents this reaction.  The protective layer can corrode or fade over time. This is due to the zinc sacrificing itself to protect the base metal.

Specifications

Bracket Style: Pontoon
Function Support pontoon deck weight
Material: Steel
Finish: Hot-dipped galvanized
Bracket Dimensions: 28 9/16 in. L x 3 in. W x 6 9/16 in.
Bracket Tubing Dimensions: 2 7 7/16 in. L x 2 in. W x 2 in. H
Flat Mounting Plate Dimensions: 6 9/16 in. L x 2 1/2 in. W x 3/8 in. thick
Bracket Weight: 17.70 lbs.
Mounting Hole Size: 1/2 in.
Cradle Beam Mounting Holes Amount: 2
Wood Beam Top Mounting Holes Amount: 3
Wood Beam Side Mounting Holes Amount: 2
