Pontoon Deck Support Bracket Kit
Only 4 left in stock
Pontoon Deck Support Bracket Kit

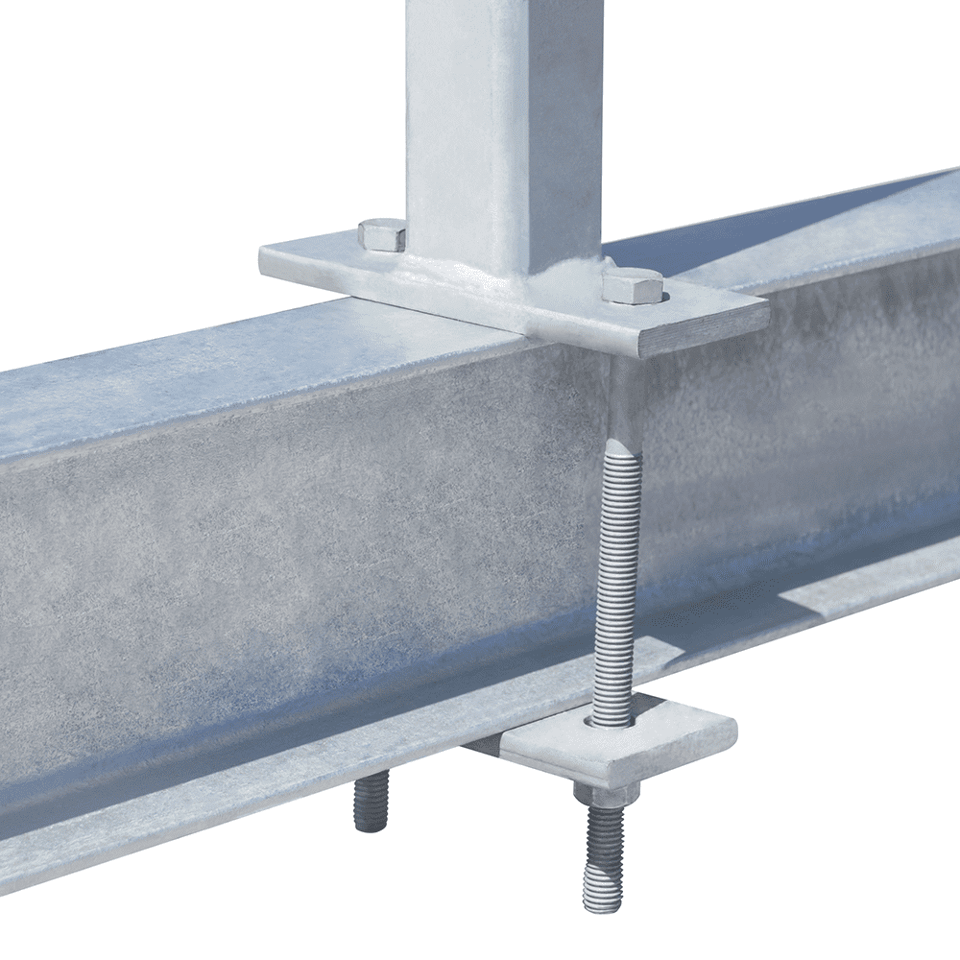

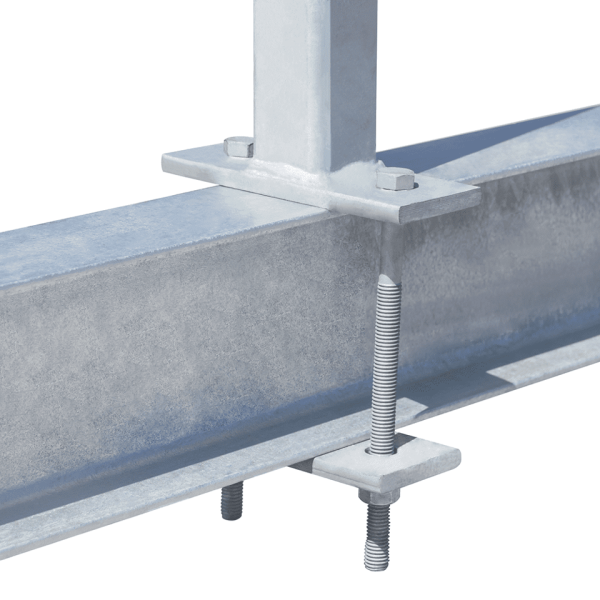

The Pontoon Deck Support Bracket Kit supports the deck of the pontoon boat when docking. It installs directly to the galvanized cradle beams with a bracket and backup plate. The pontoon deck rests on the brackets, not on the pontoons.
Made from hot-dipped galvanized steel. 3/8 in. thick flat bars. All machine-punched 9/16 in. mounting holes. Includes all galvanized 1/2 in. mounting fasteners. Includes the carriage bolts to mount the wood cradle bunks.

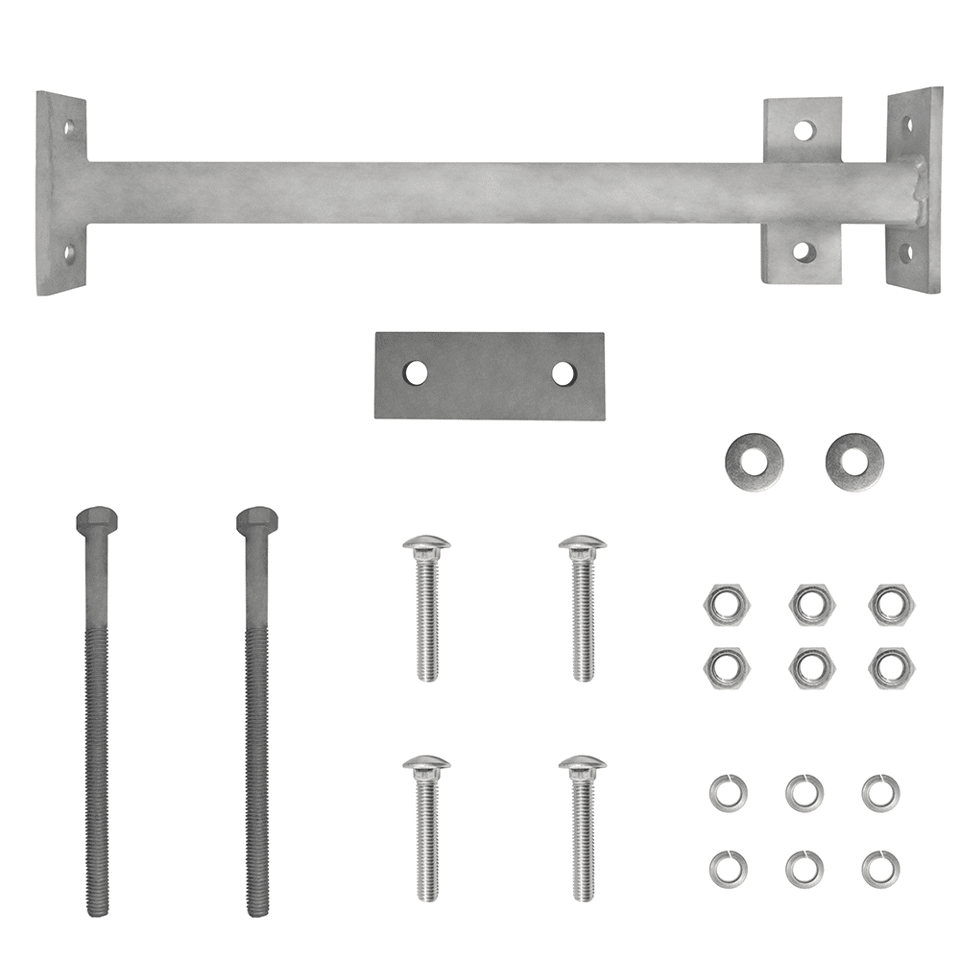

Kit Includes:
(1) Deck Support Bracket
(1) Deck Support Backup Plate
(2) 1/2 inch x 8 inch GR2 Hex Head Bolts
(4) 1/2 inch x 3 inch GR2 Carriage Bolts
(2) 1/2 inch Galvanized Flat Washers
(6) 1/2 inch Galvanized Split Lock Washers
(6) 1/2 inch Galvanized Nuts
Specifications
| Bracket Style: | Pontoon |
| Function: | Support pontoon deck weight |
| Material: | Steel |
| Finish: | Hot-dipped galvanized |
| Total Weight: | 43.95 lbs. (single kit) |
| Bracket Dimensions: | 28 9/16 in. L x 3 in. W x 6 9/16 in. |
| Bracket Tubing Dimensions: | 2 7 7/16 in. L x 2 in. W x 2 in. H |
| Flat Mounting Plate Dimensions: | 6 9/16 in. L x 2 1/2 in. W x 3/8 in. thick |
| Bracket Weight: | 17.70 lbs. |
| Mounting Hole Size: | 1/2 in. |
| Cradle Beam Mounting Holes Amount: | 2 |
| Wood Beam Top Mounting Holes Amount: | 3 |
| Wood Beam Side Mounting Holes Amount: | 2 |
| Backup Plate Dimensions: | 6 1/2 in. L x 2 in. W x 3/8 in. thick |
| Backup Plate Weight: | 1.7 lbs. |
| Mounting Hole Size: | 1/2 in. |
| Mounting Hole Amount: | 2 |

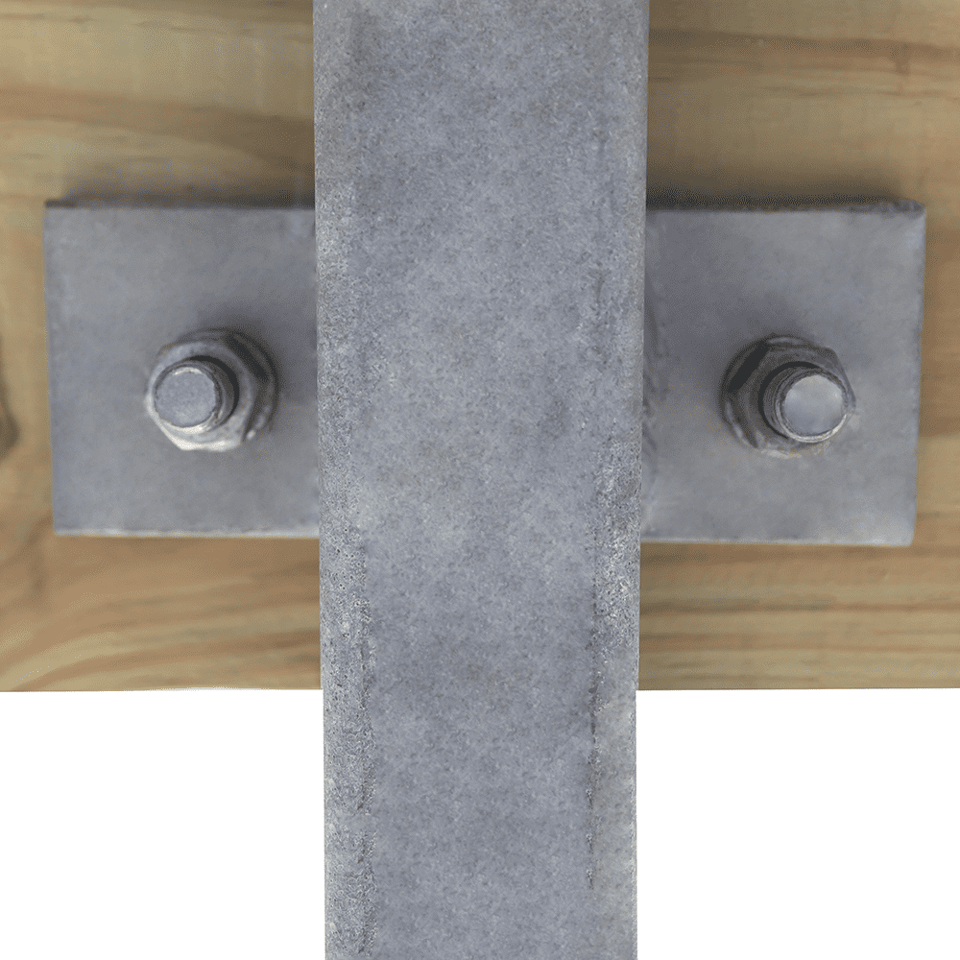

| Function: | Wedges deck bracket around the cradle beam |
| Fastener Thickness: | 1/2 in. |
| Bolts: | Hex Head & Carriage |
| Hex Head Bolt Size: | 1/2 in. x 8 in. |
| Hex Head Style: | Galvanized GR2 |
| Thread Type: | All thread |
| Carriage Bolt Size: | 1/2 in. x 3 in. |
| Washer Type: | Flat & Lock |
| Flat Washer Size: | 1/2 in. |
| Flat Washer Style: | Galvanized GR2 |
| Split Washer Size: | 1/2 in. |
| Split Washer Style: | Galvanized GR2 |
| Nut Size: | 1/2 in. |
| Nut Style: | Galvanized GR2 |
