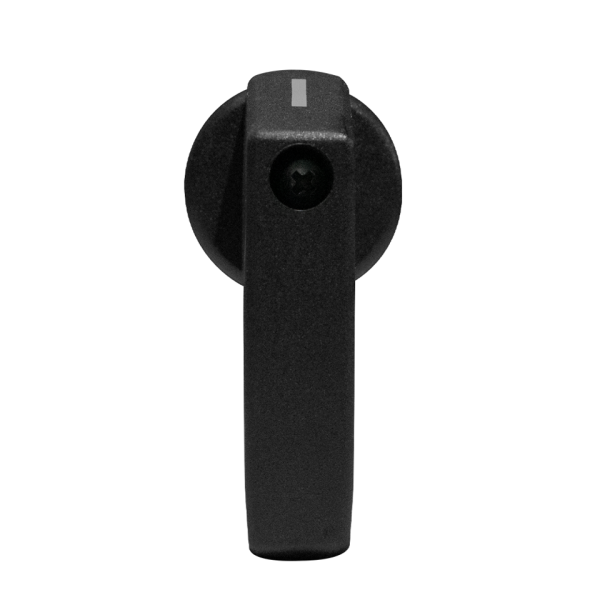

Salzer Boat Lift Switch Handle
The Salzer Boat Lift Switch Handle is a replacement rotary cam handle for all Salzer boat lift switches. Made from high-density molded black plastic. Includes Phillips head set screw in the handle. Measure 1 1/16 in. L x 1 1/2 in. W x 2 1/16 in. H.
Only fits Salzer boat lift switches.
Installation Instructions
Do not attempt to screw the Salzer switch handle into the mounting shaft of the Salzer control box without following these steps. You will damage the Salzer switch handle.
Step 1: Remove the mounting screw from the Salzer switch handle before installing it on the drum switch.
Step 2: Install the Salzer switch handle on the Salzer drum switch mounting shaft. The handle should be flush to the face of the control box. If the handle will not fit flush, slightly bend the expansion tabs to fit flush on the drum switch.
Step 3: Insert the mounting screw into the mounting hole on the Salzer switch handle.
Step 4: Tighten the mounting screw. Be careful not to overtighten the screw.
Step 5: Operate the switch back and forth to test the handle is secured to the control box.
