The Max 12K Overhead Top Beams

$ 6,213.46

12,000 lb. lifting capacity
Includes (2) 14 ft. L x 6 in. H galvanized steel beams
Includes (2) 7K A-Drive boat hoists
Virtually no maintenance
Perfect for high volume docking, like a marina
Heavy-duty design engineered by BH-USA

SKU: BH09424

UPC: 658580094249

available

Free Shipping

Stock Policy

Shipping Policy

Return Policy

The Max 12K Overhead Top Beams

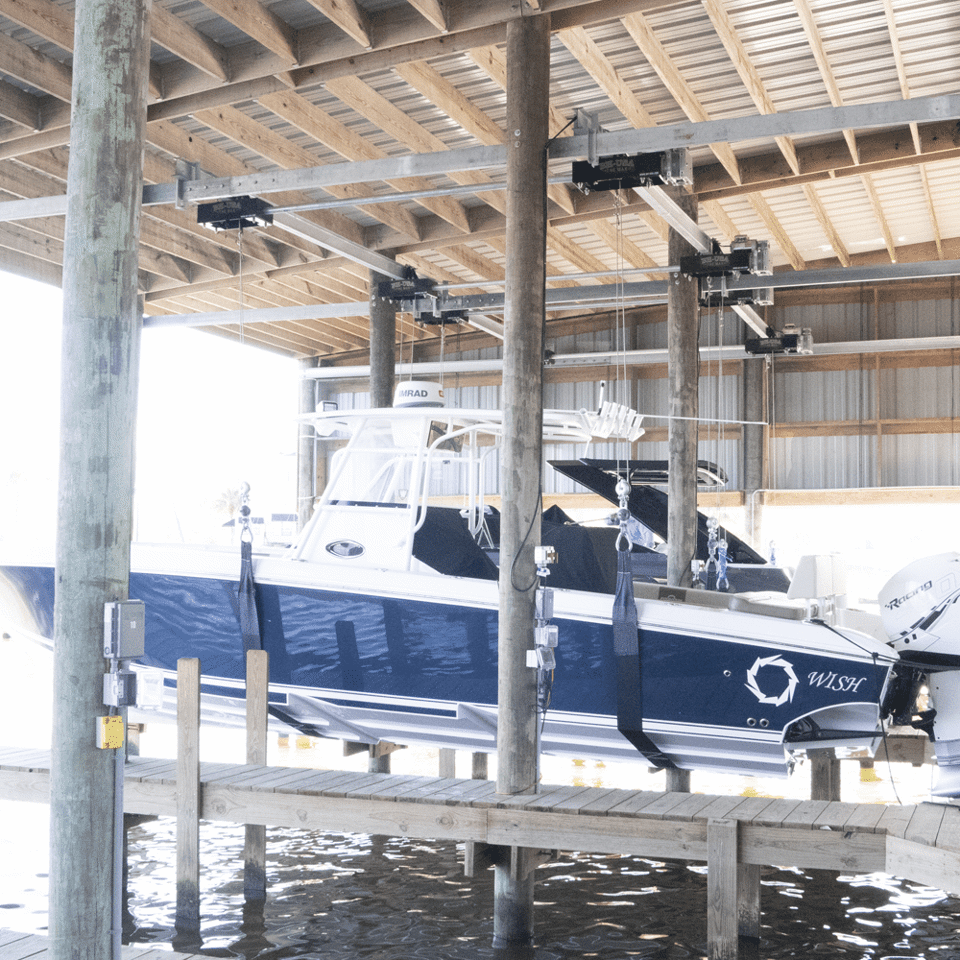

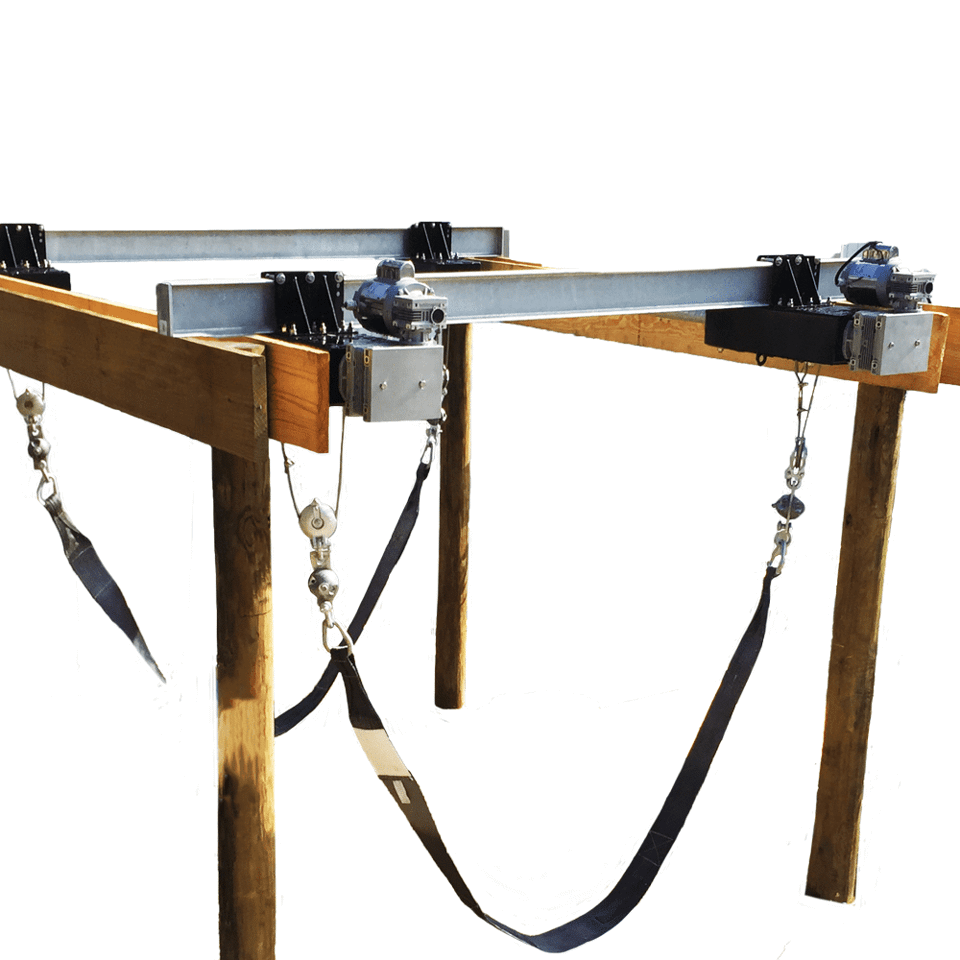

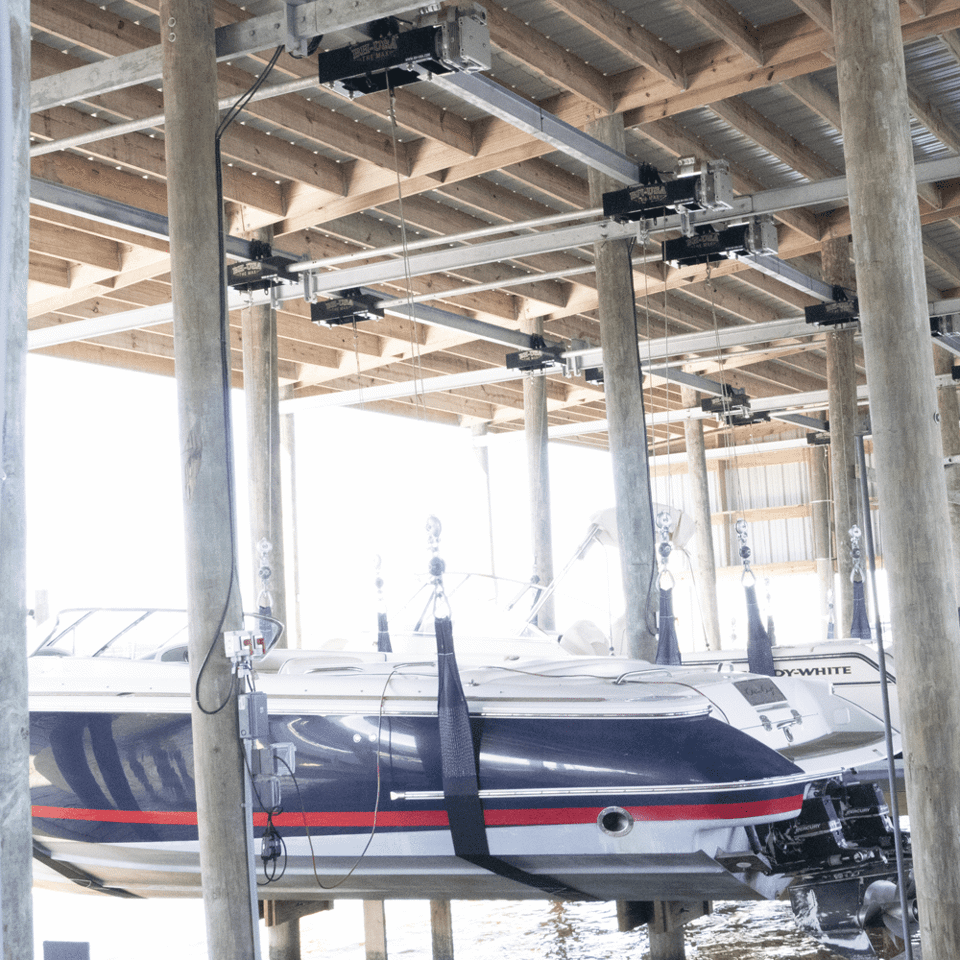

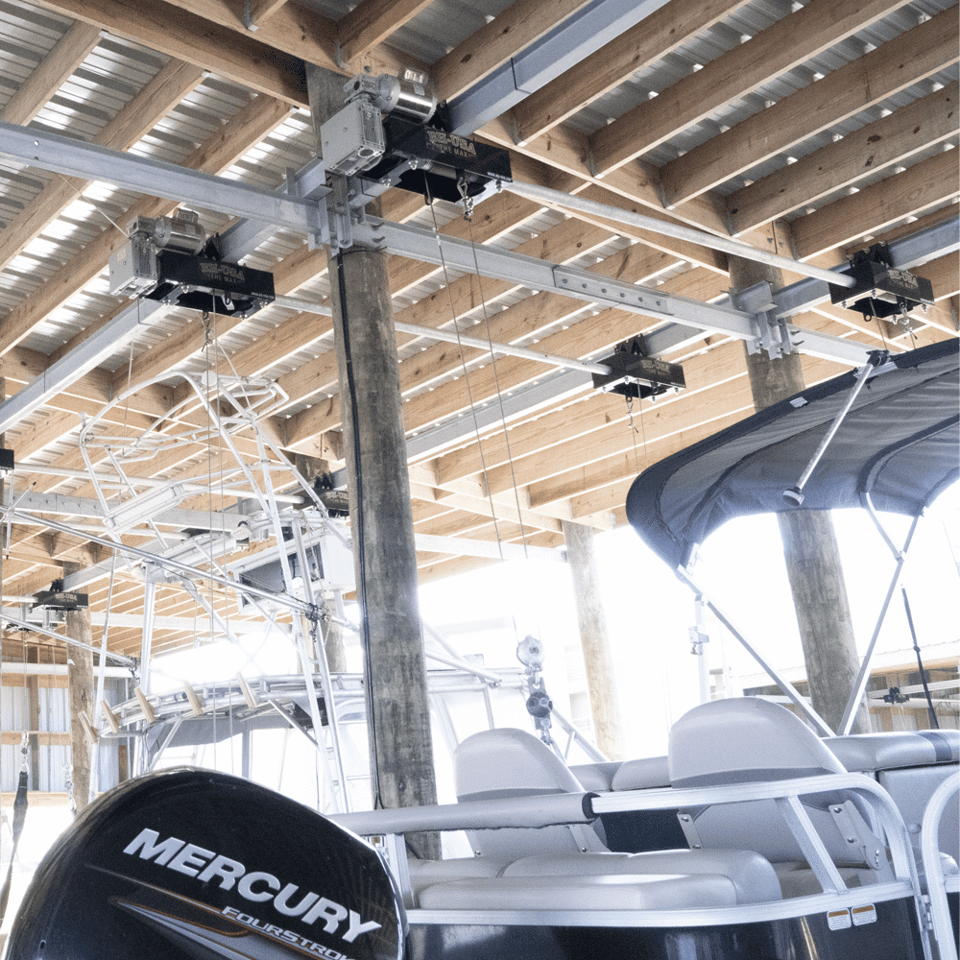

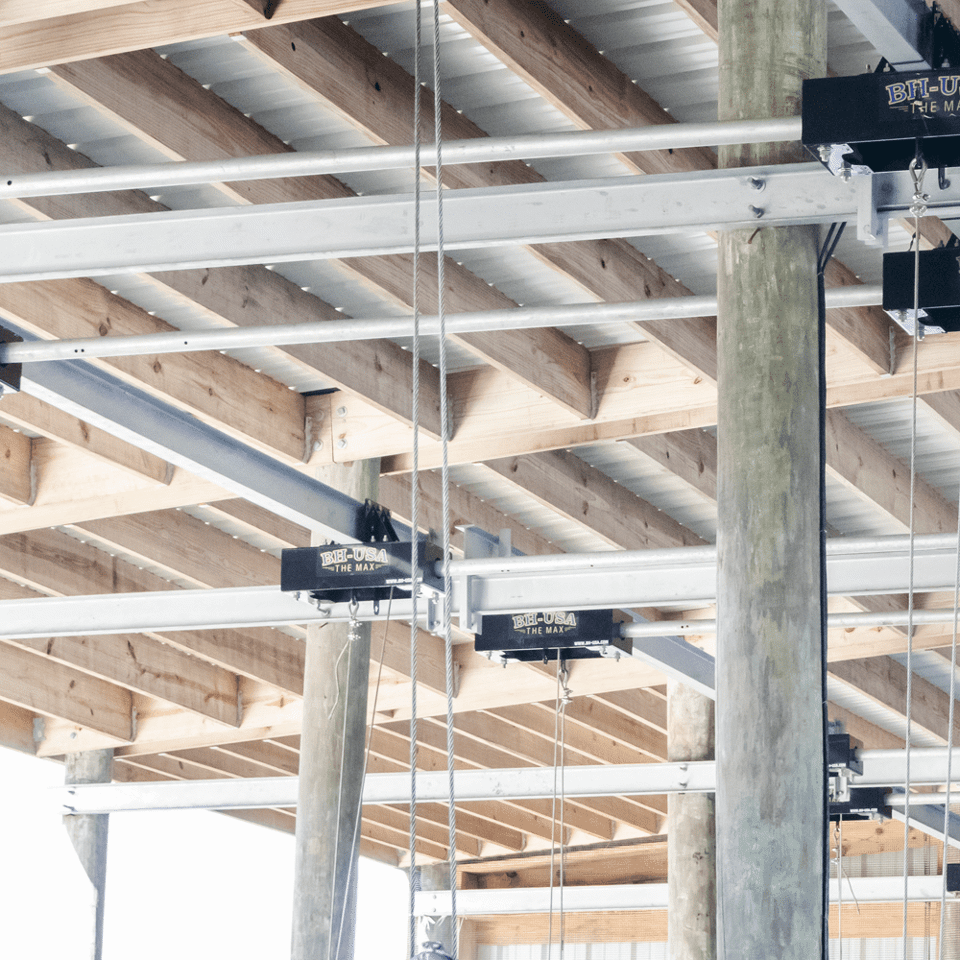

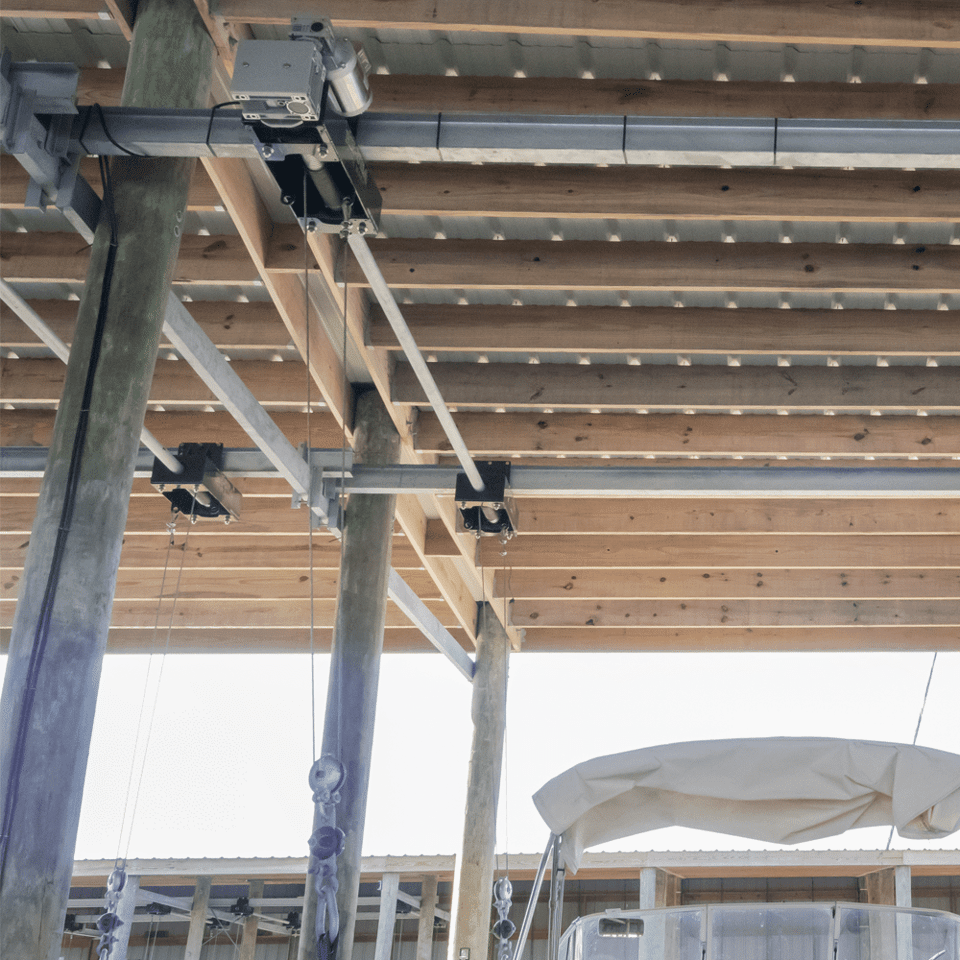

The Max 12K Overhead Top Beams rests on top of wood beams running down the sides of the dock. The top beam includes 14 ft. x 6 in. galvanized structural I-beams, hoist hangers, drive pipe supports, cable winders, A-Drive 7K boat hoists, bearing blocks, and drive pipes. Designed & engineered by BH-USA with professionals & marinas in mind. Designed for heavy use and longevity. Guarantee straight and strong installation. Gives drive pipe pre-greased sealed ball bearing sleeves. Weather protected with a strong steel enclosure for the bearings and cable. Provides a strong platform. Tested up to 5,000 pounds, deadweight each.

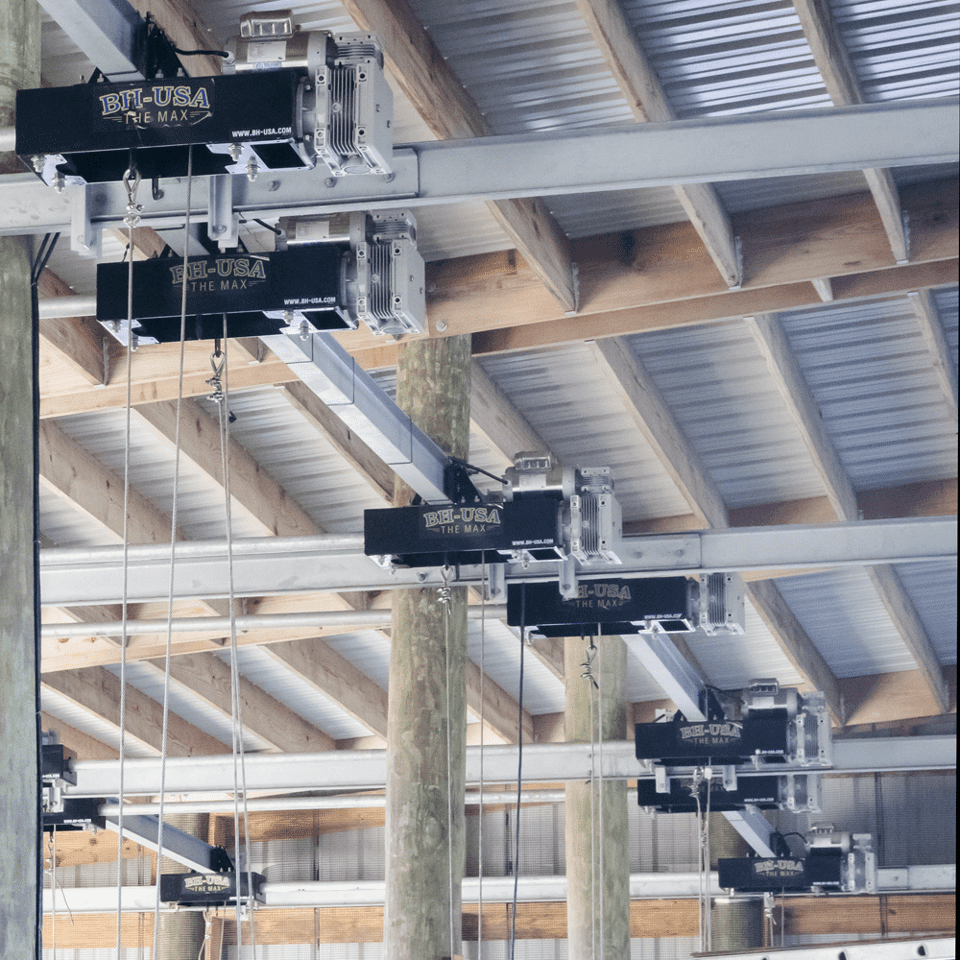

Twin high-efficient belt-less drives powered by heavy-duty 1 1/2 HP stainless steel IP sealed motors. Features innovative Max drive systems. The optional bottom plate helps keep insects and bird nests out, helping to prolong the life of the lifting cables and giving a clean finished look. Lift points drilled for 10′ distance. Powered by high-efficient 1 1/2 HP stainless steel A-Drive direct drives, leaving no maintenance and no belts.

Boat slings or boat cradles are not included.

Lifting Capacity:	12,000 lbs.
Top Beam Weight:	12.5 lbs. / ft.
Top Beam Material:	Steel
Top Beam Finish:	Hot-dipped galvanized
Top Beam Dimensions:	14 ft. L x 3 1/2 in. W x 6 in. H
Drive Pipes:	2
Drive Pipe Length:	14 ft.
Drive Pipe Size:	2 3/8 in. OD (2 in. ID)
Drive Pipe Type:	Sch. 40
Drive Pipe Material:	Steel
Drive Pipe Finish:	Hot-dipped galvanized
Pipe Supports:	Max Drive
Pipe Support Type:	Sealed ball bearings & cable winders
Pipe Support Fits:	4 in. W (flange beam)
Lift Size:	7,000 lbs.
Motor HP:	1 1/2 HP
Motor Finish:	Stainless Steel
Motor Brand:	Elite
Gearbox Type:	Double worm reducer
Gearbox Input:	Direct drive
Gearbox Weight:	38.3 lbs.
Gearbox Material:	Aluminum
Gearbox Finish:	Silver
Gear Type:	40:90 configuration
Actual Ratio:	450:1
Lubrication:	Specially blended gear grease
Lubrication Application:	Permanently sealed in the gearbox
Motor Flange to Driveshaft Flange Offset:	1.22 in.
Overall Hoist Dimensions:	11.16 in. L x 7.21 in. W x 13.23 in. H
Output Shaft Size:	1 1/4 in.
Input Motor Shaft Size:	5/8 in.
Motor Shaft to Drive Pipe Shaft:	6.59 in.
Drive Pipe Mounting Bolt Size:	(4) .55 in.
Drive Pipe Bolt Mount Hole to Bolt Mount Hole:	4.59 in.
Driveshaft Gearbox Dimensions:	8.07 in. L x 5.04 in. W x 6.77 H
Motor Mounting Type:	C-Face
Motor Mounting Bolt Size:	(4) 7/16 in.
Motor Bolt Mount Hole to Bolt Mount Hole:	4.15 in.
Motor Gearbox Dimensions:	4.78 L x 3.94 in. W x 3.37 in. H
Motor A-Drive Output Torque:	7,399 lbs./in.
Maximum Run Time:	15 minutes
Motor Dimensions:	9 in. x 10 1/2 in. x 6 1/4 in.
Weight:	39.65 lbs.
Horsepower:	1 1/2 HP
Mounting Type:	C
RPM:	1725
Service Factor:	1.15
SFA:	8.8
Voltage:	Dual (115v/230v)
Phase:	1
Amps:	7.7
Herz:	60
AMB:	40°C
Frame:	56C
HSG:	TENV
Code:	E
Insulation:	F
Shaft Diameter:	5/8 in.
Dimensions:	3 1/2 in. x 4 1/2 in. x 4 1/2 in.
Max Amps:	20
Max HP:	1 1/2 HP
Compliance:	UL, NEMA, CE, SA
VAC:	120-240
Weight:	1.2 lbs.
Box Color:	Gray
Handle Color:	Red
Switch Type:	Momentary (Spring-Loaded)
Housing Material:	Plastic
Plug Type	3-US 110 V Standard
Plug Cord Length	6 in.
GFCI to Switch Cord Length	6 ft.
GFCI:	7 in. x 2 1/2 in. x 1 in.
Color:	Black
Class:	A-Rainproof
AMP:	15
Hz:	60
Watt	1875
Volt	125
Reset Type	Automatic
Cord Diameter Range	.28 – .65
Mounting Fastener Material:	Stainless steel

When choosing the cradle option, the cradle comes complete with a chock angle for two bunks, guidepost stanchions, and guideposts. All hardware is included, the wood bunks are not included. Cable and block savers are included with the cradle to keep cable and block from going into the water. The BH-USA Max lifts ship complete in one shrink-wrapped 15ft wood crate. The Lift is shipped via a freight truck and will not be able to be unloaded without a fork truck. It is the purchaser’s responsibility to arrange a suitable delivery location, preferably a business, and have adequate ability to unload the lift from the truck. It is not the trucking companies or BH-USA’s responsibility to unload the truck. The freight company will contact you if requested to arrange for delivery and delivery options. By using cradles instead of slings the overall rating of the lift becomes 12,000 lbs.
