12,000 lb. Aluminum Four Post Pile Mount Boat Lift

12,000 lb. Aluminum Four Post Pile Mount Lift

$ 9,803.04
  • Features no weld design
  • Made from marine grade 6061-T6 US aluminum
  • Rated up to 12,000 lb. lift capacity
  • Includes aluminum cradle beams and bunks
  • All stainless steel mounting fasteners
  • Includes (2) hoists mounted on the aluminum top beams
SKU: 36471
UPC: 091037364715

Only 2 left in stock

in stock. only 2 left!

Free Shipping
×

Free Shipping

BH-USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

×

Shipping

BH-USA has partnered with UPS to offer Ground, Next Day Air, 2nd Day Air, and 3 Day Select services to our customers. In order to ship with these methods, the order must meet UPS's requirements.

Freight

Your order will be shipped via the most cost-effective method possible. All shipping and handling charges are the responsibility of the customer. Additionally, they are responsible for any delivery issues that may hinder delivery. In such cases, extra fees can apply, such as residential delivery fees.

Click the button below to learn more about our ordering and shipping policies.

Our Shipping Partners shipping modal logos

Qty.



12,000 lb. Aluminum Four Post Pile Mount Lift

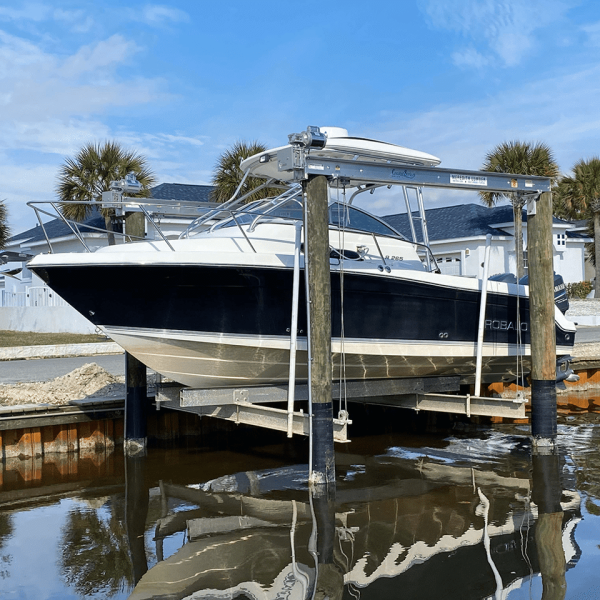

The 12,000 lb. Aluminum Four Post Pile Mount Lift mounts on the top of 4 dock pilings. Made from 6061-T6 US aluminum. No weld design. 12,000 lb. lifting capacity.

Includes stainless steel cable, stainless steel mounting fasteners, and hot-dipped galvanized drive pipe. Includes (2) hoists on each top beam. Uses compounded 33 ft. of 7 x 19 aircraft cable. Aluminum cradle beams and bunks included.

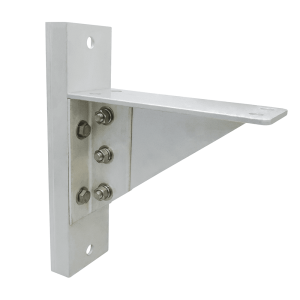

Pile mount bracket long bolts to mounting to dock pilings not included.

Freight Shipping Policy

Questions about shipping? Review our shipping policy.

Lifting Capacity Gear Ratio Motor Horsepower Motor Finish Piling Amount Cable Configuration Cable Thickness Cable Length
6,000 lbs. 40:75 3/4 HP Stainless steel 4 Straight-Line 5/16 in. 15 ft.
8,000 lbs. 40:75 1 HP Stainless steel 4 Straight-Line 5/16 in. 15 ft.
9,000 lbs. 40:75 1 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
12,000 lbs. 40:90 1 HP Stainless steel 4 Compounded  5/16 in. 33 ft.
16,000 lbs. 40:90 1 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
20,000 lbs. 40:90 1 1/2 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
20,000 lbs. 40:90 1 1/2 HP Stainless steel 6 Compounded 5/16 in. 33 ft.
24,000 lbs. 40:90 1 1/2 HP Stainless steel 6 Compounded 3/8 in. 33 ft.
30,000 lbs. 40:90 1 1/2 HP Stainless steel 8 Compounded 3/8 in. 36 ft.
All aluminum pile mount boat lifts include a BH-USA A-Drive direct-drive hoist and a c-face input wired boat lift motor.
