16,000 lb. Aluminum Four Post Pile Mount Lift

$ 11,723.91

16,000 lb. compounded cable lifting capacity
Mounts to 4 pilings
6061-T6 US aluminum top beams
Features maintained drum switches
Features 220v motors
In-line GFCI control cable
Complete lift ships freight in a crate

SKU: 36472

UPC: 091037364722

available

Free Shipping

Stock Policy

Shipping Policy

Return Policy

16,000 lb. Aluminum Four Post Pile Mount Lift

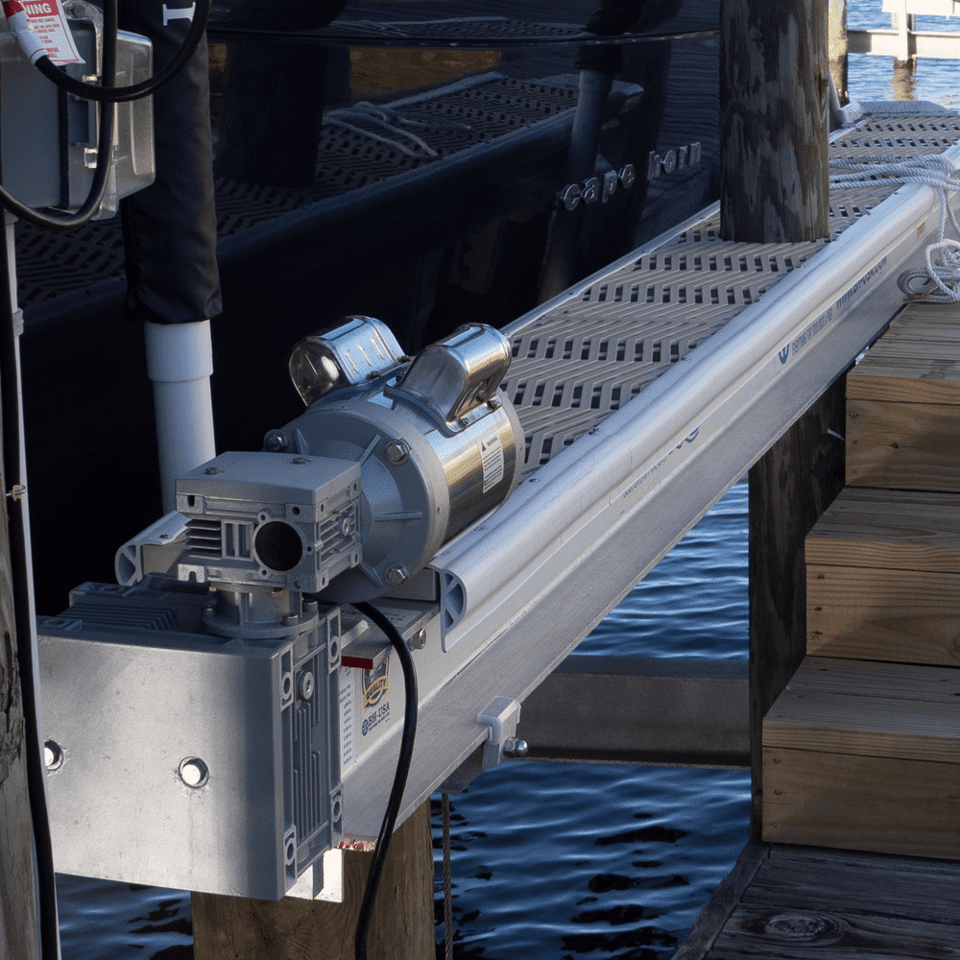

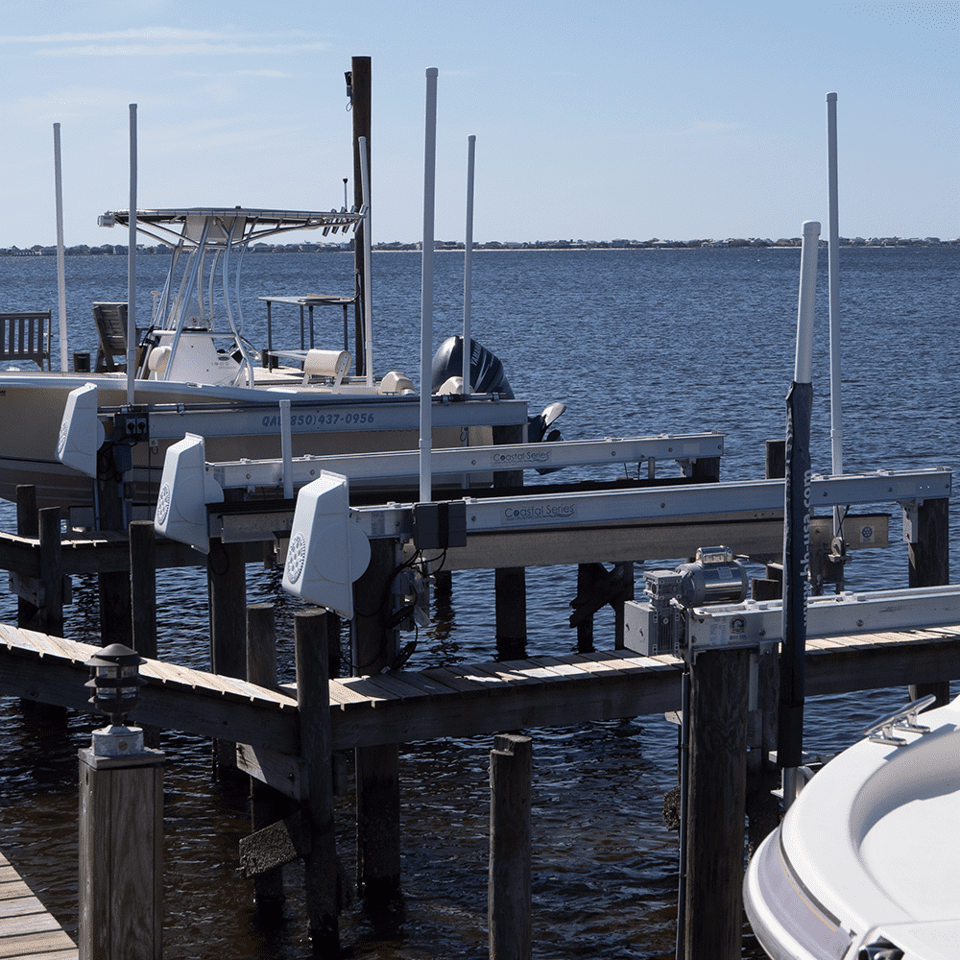

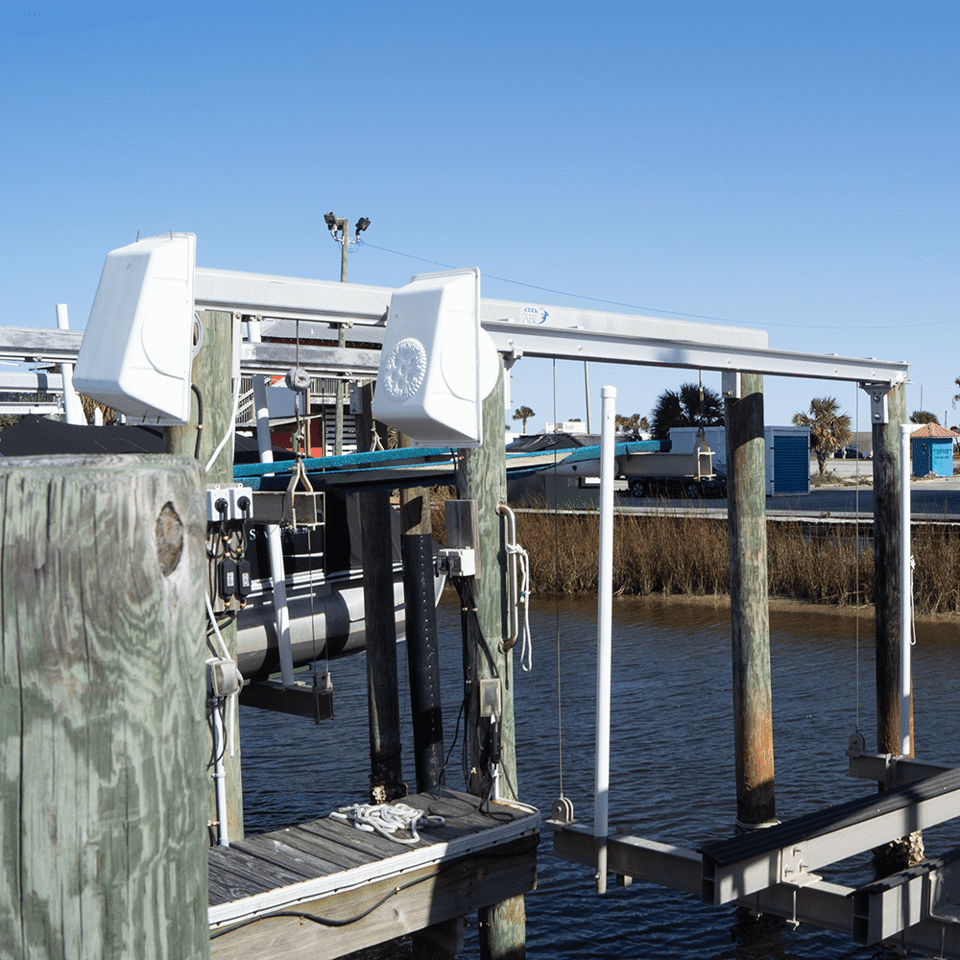

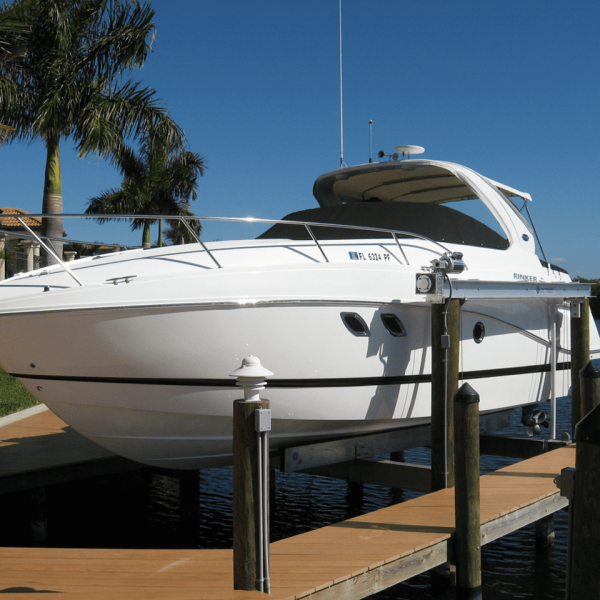

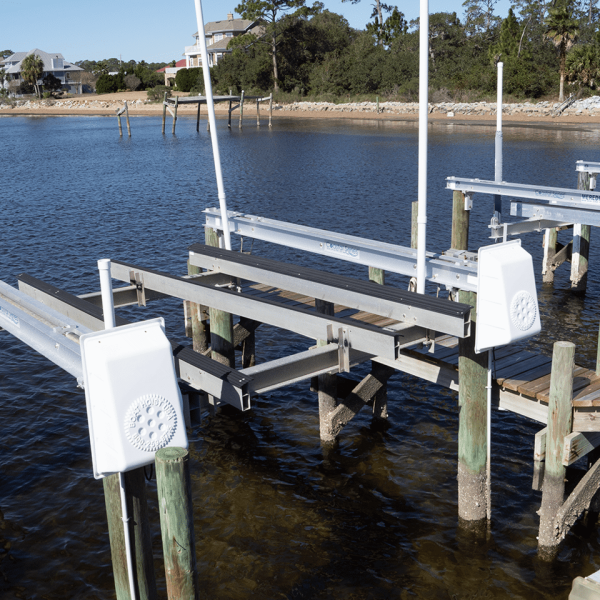

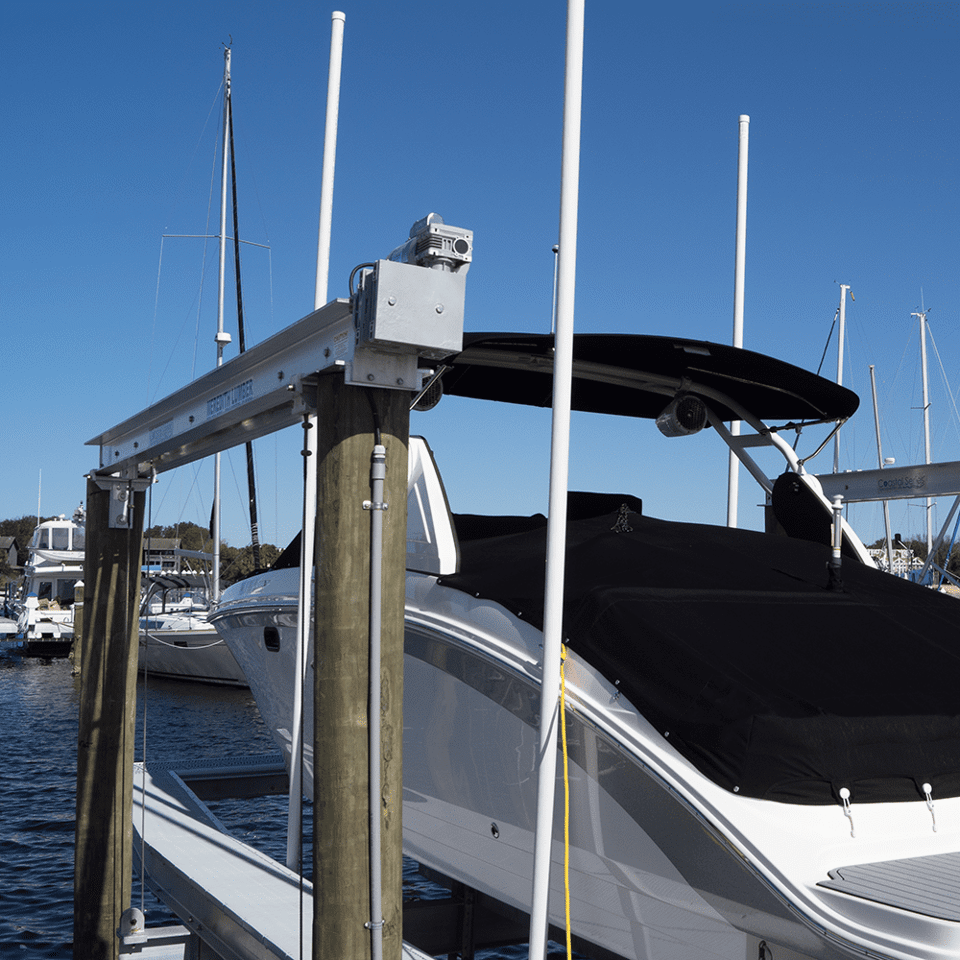

The 6,000 lb. Aluminum Four Post Pile Mount Lift mounts on the top of four dock pilings. The side-mounted boat lift uses a compounded configuration. Includes 33 ft. of 5/16 in. thick 7 x 19 aircraft cable. The lift features a no-weld design. Made from 6061-T6 US aluminum channel. Includes A-Drive direct-drive boat hoist. The hoist uses a 40:90 double reducer gearbox and a 1 HP Elite stainless steel boat lift motor wired to 220v with a maintain (lock-on) boat lift cam switch and a 220v in-line GFCI. It does not include mounting bolts for the dock pilings.

Lifting Capacity	Gear Ratio	Motor Horsepower	Motor Finish	Piling Amount	Cable Configuration	Cable Thickness	Cable Length
6,000 lbs.	40:75	3/4 HP	Stainless steel	4	Straight-Line	5/16 in.	15 ft.
8,000 lbs.	40:75	1 HP	Stainless steel	4	Straight-Line	5/16 in.	15 ft.
9,000 lbs.	40:75	1 HP	Stainless steel	4	Compounded	5/16 in.	33 ft.
12,000 lbs.	40:90	1 HP	Stainless steel	4	Compounded	5/16 in.	33 ft.
16,000 lbs.	40:90	1 HP	Stainless steel	4	Compounded	5/16 in.	33 ft.
20,000 lbs.	40:90	1 1/2 HP	Stainless steel	4	Compounded	5/16 in.	33 ft.
20,000 lbs.	40:90	1 1/2 HP	Stainless steel	6	Compounded	5/16 in.	33 ft.
24,000 lbs.	40:90	1 1/2 HP	Stainless steel	6	Compounded	3/8 in.	33 ft.
30,000 lbs.	40:90	1 1/2 HP	Stainless steel	8	Compounded	3/8 in.	36 ft.
All aluminum pile mount boat lifts include a BH-USA A-Drive direct-drive hoist and a c-face input wired boat lift motor.

General Specifications

Lifting Capacity:

16,000 lbs.

Boat Hoists Included:

A-Drive (Direct-Drive)

Minimum Piling Size:

8 in. (dia.)

Motors Included:

Elite 220v 1 HP Stainless Steel

Limit Switch Bracket:

Bracket Included (Limit Switch Optional)

Cradle Beams Included:

14 ft. x 10 in. Aluminum

Drive Pipe Location:

Side-Mounted

Cradle Bunks Included:

16 ft. x 10 in. Aluminum

Top Beam Specifications

Material:

Aluminum

Type:

6061-T6 US

Length:

12 1/2 ft.

Beam Wt/Lin ft.:

4.715 lbs.

Web:

6 in.

Web Thickness:

.210 in.

Flange:

4 in.

Flange Thickness:

.350 in.

Material Type:

Extruded

Bearing Block Weight:

1.15 lbs.

Bearing Block Length:

5 1/2 in.

Bearing Block Material:

Aluminum

Bearing Block Width:

1 1/2 in.

Material Type:

6061-T6 US

Bearing Block Height:

4 3/4 in.

Bore:

1 7/8 in.

Bearing Surface:

1 5/8 in.

Mounting Holes:

Great Fitting Size:

1/4 in.

Mounting Hole Size:

9/16 in.

Drive Pipe Specifications

Drive Pipe Type:

Sch. 40

Driveshaft Size:

1.5 in.

Drive Pipe Length:

11 ft. 11 1/2 in.

Driveshaft Fits:

40:90 A-Drive Gearbox

Drive Pipe Width:

5.8 lbs.

Driveshaft Length:

13 1/4 in.

Drive Pipe Finish:

Hot-Dipped Galvanized

Driveshaft Width:

1 1/2 in.

Mounting Hole Amount:

Input Length:

1 7/8 in.

Hole Size:

1/2 in.

Input Width:

1 1/4 in.

Keystock Groove:

4 in. x 1/4 in.

Input Height:

3/16 in.

Keystock Length:

3 5/8 in.

Output Length:

8 7/8 in.

Keystock Width:

1/4 in.

Output Width:

1 1/2 in.

10 in. Cradle Beam Specifications

Material:

Aluminum

Type:

6061-T6 US

Style:

Marine-grade extruded

Beam Type:

Structural

Web Size (A):

10 in.

Flange Size (B):

6 in.

Web Thickness (C):

.250 in.

Flange Thickness:

.410 in.

Beam Wt./Lin Ft.:

8.646 lbs. (per ft.)

Accepts:

4 in. Aluminum Sheave

Sheave Housing Dimensions:

10 in. web x 6 in. flange

Sheave Bolt Bore:

0.75 in. (3/4 in.)

Material:

Aluminum

Length:

14 ft.

Fasteners Material:

316 stainless steel

Bolt Type:

Hex Head

Bolt Amount:

Bolt Size:

0.5 in. x 2.5 in.

Washer Type:

Lock

Nut Type:

Threaded

Washer Size:

1/2 in.

Nut Size:

0.50 in.

Washer Amount:

Nut Amount:

0.50 in.

10 in. Cradle Bunk Specifications

Material:

Aluminum

Type:

6061-T6 US

Style:

Marine-grade extruded

Bunk Type:

Cradle

Height:

10 in.

Length:

16 ft.

Padding Type:

Rubber

Bunk Angle:

19 Degrees

Padding Style:

Non-Marking

Padding Color:

Black

10 in. Bunk Mounting Kit Specifications

Material:

Aluminum

Type:

6061-T6 US

Mounts:

2 Bunks

Mounting Holes:

Length:

8 1/2 in.

Mounting Hole Size:

5/8 in.

Width:

4 in.

Plate Weight:

2.25 lbs.

Height:

6 in.

Plate Thickness:

3/8 in.

Accepts Bolts:

1/2 in.

Cradle Beam Mounting Holes:

Plate Length:

8 in.

Plate Thickness:

1/2 in.

Plate Width:

2 in.

Plate Weight:

0.60 lbs.

Mounting Holes:

Hole Size:

5/8 in.

Accepts Bolts:

1/2 in.

Hole Placement:

End of Backup Plate

Fastener Material:

Stainless Steel

Size:

1/2 in.

Hex Bolt Size:

1/2 in. x 12 in.

Washer Type(s):

Lock

Fastener Amount:

Nut Type:

Flange

Motor Specifications

220v (16 ft. & 45 ft. Control Cable)

Weight:

28.60 lbs.

Individual Box Size:

15 in. x 10 in. x 10 in.

Product Length:

10.75 in.

Product Width:

6.50 in.

Product Height:

9.0 in.

Shaft Width:

0.625 in.

Shaft Length:

2 in.

Country of Origin:

China

Model #:

93048

Retail SKU:

93091

HP:

Voltage:

Dual (115v / 230v)

Phase:

Amps:

15.6 (115v) / 7.8 (230v)

RPM:

1725

Hz:

Frame:

56c

Service Factor:

1.15

SFA:

17.5 (115v) / 8.75 (230v)

Type:

AMB:

40°c

Time:

15 MIN

HSG:

TENV

Code:

Insulation:

Thermally Protected:

None

UL:

Recognized

UL Stamp:

C-UL-US

Electrical Type:

Capcitor Start

Rotation:

Selective

Shaft Type:

NEMA 56

Shaft Extension:

1.88 in.

Frame Length:

9.0 in.

Mounting:

Round

Drive End Bearing:

Ball

Opp Drive End Bearing:

Ball

Frame Material:

Stainless Steel

Replacement Capacitor:

800 uF

Capacitor SKU #:

BH02246

Keystock:

Included

Keystock Length:

1 in.

Keystock Width:

0.25 in.

Boat Lift Switch Specifications

Maintained (Lock-On)

Model #:

CA0200034I-B96IQ6R

Housing Length:

4.5 in.

Retail SKU #:

BH09014

Housing Width:

3.5 in.

Weight:

1.25 lbs.

Housing Height:

4.5 in.

Box Color:

Light Grey

Handle Length:

3.0 in.

Handle Color:

Red

Handle Width:

1.1875 in.

Country of Origin:

Italy

Handle Height:

1.3125 in.

Amps:

Certification:

EN 60947-3

VAC

600

Certification:

Torque:

Tight

Certification:

C-UL-US Listed

GFCI Wire Harness Specifications

220v

Manufacturer:

Southwire Company

GFCI to Plug:

4.5 in.

Plug Type:

US 240 Volt NEMA 6-15

Cord Diameter Range:

0.28 – 0.65 in.

VAC:

240

Country of Origin:

Honduras

Hz:

50/60

UL:

Listed

Amps:

CSA:

Certified

Watts:

3600

Reset Button:

Yes

Type:

Rainproof Class A

Reset Type:

Automatic

GFCI Type:

In-line

BH-USA SKU:

12228

Cable Type:

14/5 SJTW

Catalog #:

25090

Cable Specifications

Cable Diameter:

5/16 in.

Cable Material:

Stainless Steel

Cable Type:

7 x 19 Aircraft

Cable Amount:

Cable Length:

33 ft.

Cable Configuration:

Compounded

Cable Winders:

Cable Winder Type:

Single Direction

Winder Mount Style:

Side

Cable Winder Fits:

2 in. OD (1.5 in. ID) Drive Pipes

Wire Rope Clip Type:

Malleable

Wire Rope Clip Size:

1/4 in.

Wire Rope Clip Material:

Stainless Steel

Wire Rope Clip Amount:

Fastener Specifications

Fastener Size:

1/2 in.

Fastener Material:

Stainless Steel

Hex Bolt Dimensions:

1/2 in. x 2 in. (13 Thread)

Washer Type(s):

Flat | Lock

Hex Bolt Dimensions:

1/2 2 1/2 in.

Nut Type(s):

Flange

Fastener Size:

5/16 in.

Fastener Material:

Stainless Steel

Hex Bolt Dimensions:

5/16 in. x 2 3/4 in.

Washer Type(s):

Lock

10 in. Beam Guidepost Stanction Specifications

Material:

Aluminum

Metal Thickness:

3/8 in.

Material Type:

6061-T6 US

Stanchion Length:

28 in.

Inner Diameter:

1 3/16 in.

Stanchion Width:

1 in.

Accepts:

2 in. ID PVC Pipe

Stanchion Height:

15/16 in.

Hole Size:

0.25 in. (1/4 in.)

Backup Plate Length:

14 in.

Hole Reason:

Drain Water

Backup Plate Width:

2 in.

Mounting Holes:

2 (through pipe)

Hole Size:

9/16 in.

Distance Between Holes:

11 in. (center-to-center)

Fastener Material:

Stainless Steel

Hex Head Bolt Size:

1/2 in. x 10 in.

Washer Type(s):

Lock

Fastener Size:

1/2 in.

Nut Type:

Flange

Boat Cradle Guidepost Specifications

Material:

PVC

Rating:

ASTM D 2665

Compound:

PVC 1120 Type 1 Sch. 40

Width:

2 3/8 in. (2 in. ID)

PSI:

@ 23° C

Thickness:

0.1875 in. (3/16 in.)

Top Cap Modification:

Drilled

Length:

Varies

Hole Size:

0.25 in. (1/4 in.)

Color:

White

Hole Reason:

Drain Water

Fits:

BH-USA Guidepost Stanchions

48 in. Split Guidepost Specifications

Padding Material:

Foam

Color:

Black

Foam Thickness:

1 in.

Cover Type:

Split

Cover Material:

Nylon

Length:

48 in.

Nylon Type:

200 Denier

Width

2 3/8 in.
