2 1/2 in. Fixed Eye Pulley Block
Introducing the 2 1/2 in. Fixed Eye Pulley Block – your go-to for easy lifting and pulling of heavy loads. This robust tool is designed for strength and versatility.
Material and Finish: Crafted from durable steel with a rust-resistant zinc-plated finish, ensuring toughness and style in any environment.
Design Features: The fixed eye design ensures a secure grip for controlled movement, forged for extra strength during heavy lifting.
Sheave and Cable Compatibility: Equipped with a 7/16 in. wide machined sheave groove, suitable for various cables and ropes up to 1/4 in. thick.
Safe Working Load: Handles up to 685 lbs., providing a secure lifting solution for a wide range of applications.

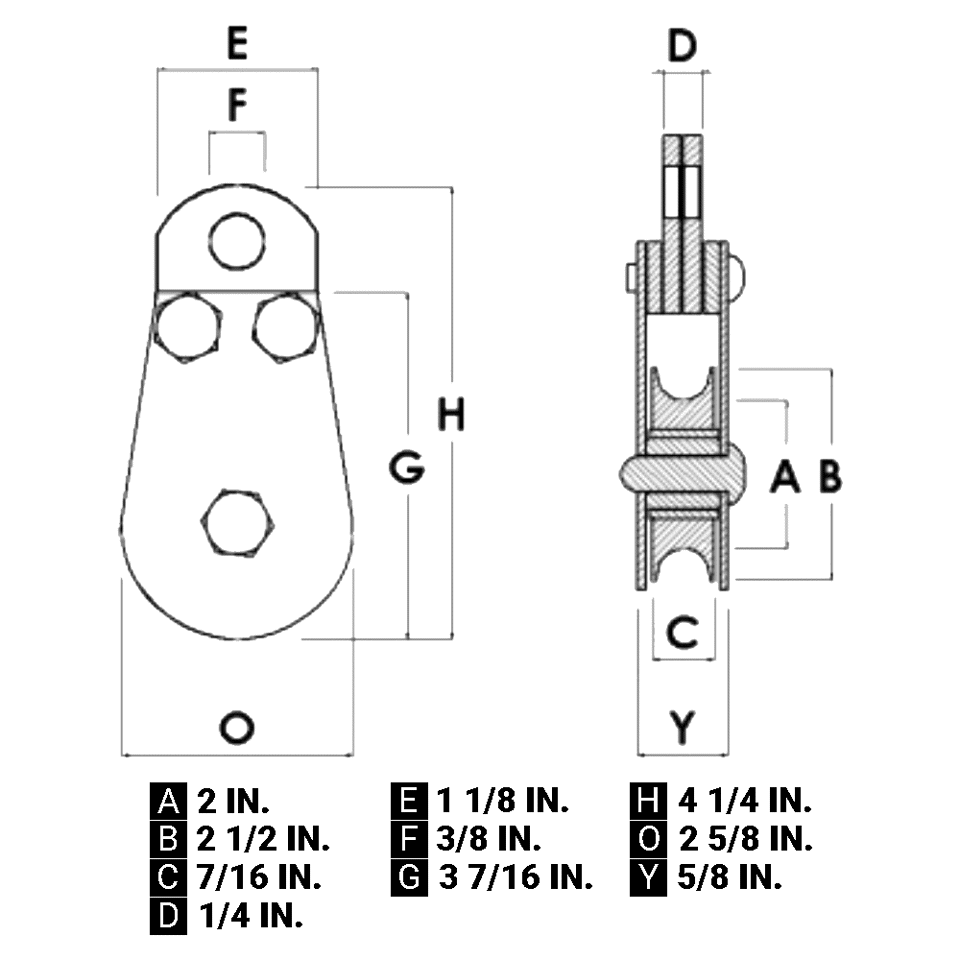

Mounting Hole and Dimensions: With a 3/8 in. block mounting hole, it’s easy to install and measures 2 5/8 in. (L) x 5/8 in. (W) x 4 1/4 in. (H) – compact yet functional.
Versatile Application: Ideal for lifting, rigging, and hoisting heavy objects, making it perfect for both residential and commercial use.
In Summary: The 2 1/2 in. Fixed Eye Pulley Block is strong, durable, and versatile, featuring zinc-plated steel, a forged eye, and a wide sheave groove. Whether lifting heavy loads or facilitating smooth pulling operations, it’s your reliable choice for various applications.
Specifications
Product Model | 2 1/2 in. Fixed Eye Pulley Block | Material | Steel |
Finish | Zinc-plated | Color | Silver |
Eye Type | Fixed | Sheave Groove Width | 7/16 in. |
Maximum Cable Width | 1/4 in. | Safe Working Load | 685 lbs. / 311 kg |
Mounting Hole Size | 3/8 in. | Dimensions (L x W x H) | 2 5/8 in. x 5/8 in. x 4 1/4 in. |
Weight (Each) | 0.85 lbs. | Application | Lifting and pulling heavy loads |
Compatibility | Suitable for boat lift cables, wire ropes | Corrosion Resistance | Yes |
Strength | Forged eye for enhanced durability | Versatility | Residential and commercial applications |
