24,000 lb. Aluminum Six Post Pile Mount Lift


$ 13,409.80
  • Heavy-duty construction
  • Made of corrosion-resistant aluminum
  • 33-foot cable compounded configuration
  • No-weld design
  • Maintained drum switches
  • 110-volt motors
  • In-line GFCI control cable
SKU: 84890
UPC: 091037848901

Only 4 left in stock

in stock. only 4 left!

Free Shipping
×

Free Shipping

BH-USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

×

Shipping

BH-USA has partnered with UPS to offer Ground, Next Day Air, 2nd Day Air, and 3 Day Select services to our customers. In order to ship with these methods, the order must meet UPS's requirements.

Freight

Your order will be shipped via the most cost-effective method possible. All shipping and handling charges are the responsibility of the customer. Additionally, they are responsible for any delivery issues that may hinder delivery. In such cases, extra fees can apply, such as residential delivery fees.

Click the button below to learn more about our ordering and shipping policies.

Our Shipping Partners shipping modal logos

Qty.



24,000 lb. Aluminum Six Post Pile Mount Lift

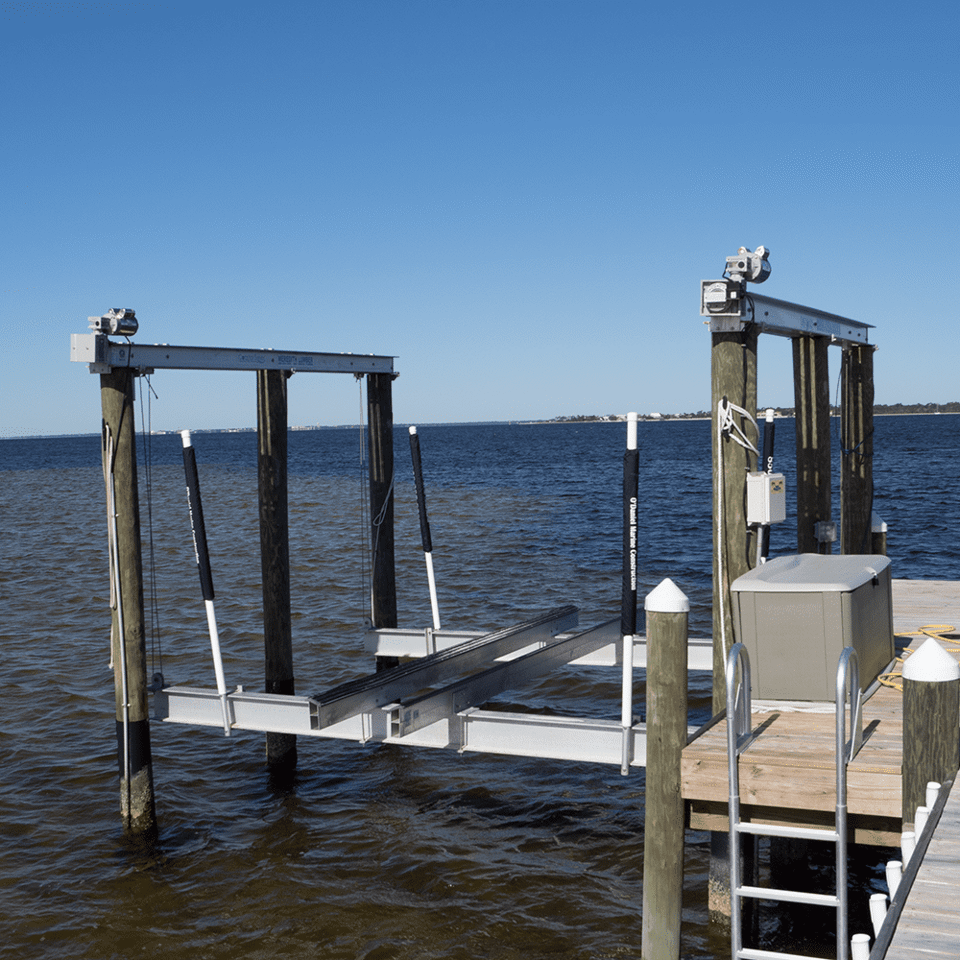

The 24,000-pound aluminum six-post pile mount boat lift from BH-USA is a heavy-duty lift that can accommodate boats of up to 24,000 pounds. It is made of 6061-T6 US aluminum, which is a strong and corrosion-resistant material. The lift has a 33-foot cable compounded configuration, which results in a 24,000-pound lift capacity rating.

The boat lift mounts to six pilings and features a no-weld design. It also has maintained drum switches and 110-volt motors. The lift comes with an in-line GFCI control cable and ships freight in a crate.

Benefits:

  • The 24,000-pound lift capacity can accommodate most boats.
  • The aluminum construction is strong and corrosion-resistant.
  • The no-weld design makes the lift easy to assemble and maintain.
  • The maintained drum switches prevent the lift from running out of control.
  • The 110-volt motors are energy-efficient and quiet.
  • The in-line GFCI control cable provides safety protection.

Maintenance:

The 24,000-pound aluminum six-post pile mount boat lift is a low-maintenance lift. The only regular maintenance required is to inspect the lift for any signs of wear or damage. You should also clean the lift regularly to remove dirt and debris.

Overall, the 24,000-pound aluminum six-post pile mount boat lift from BH-USA is a high-quality lift that is perfect for boats of up to 24,000 pounds. It is made of durable materials and is easy to install and maintain. The lift is also backed by a one-year warranty. If you are looking for a heavy-duty boat lift that can accommodate your large boat, then the BH-USA 24,000-pound aluminum six-post pile mount boat lift is a great option.

Bracket long bolts for pilings not included.
Lifting Capacity Gear Ratio Motor Horsepower Motor Finish Piling Amount Cable Configuration Cable Thickness Cable Length
6,000 lbs. 40:75 3/4 HP Stainless steel 4 Straight-Line 5/16 in. 15 ft.
8,000 lbs. 40:75 1 HP Stainless steel 4 Straight-Line 5/16 in. 15 ft.
9,000 lbs. 40:75 1 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
12,000 lbs. 40:90 1 HP Stainless steel 4 Compounded  5/16 in. 33 ft.
16,000 lbs. 40:90 1 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
20,000 lbs. 40:90 1 1/2 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
20,000 lbs. 40:90 1 1/2 HP Stainless steel 6 Compounded 5/16 in. 33 ft.
24,000 lbs. 40:90 1 1/2 HP Stainless steel 6 Compounded 3/8 in. 33 ft.
30,000 lbs. 40:90 1 1/2 HP Stainless steel 8 Compounded 3/8 in. 36 ft.

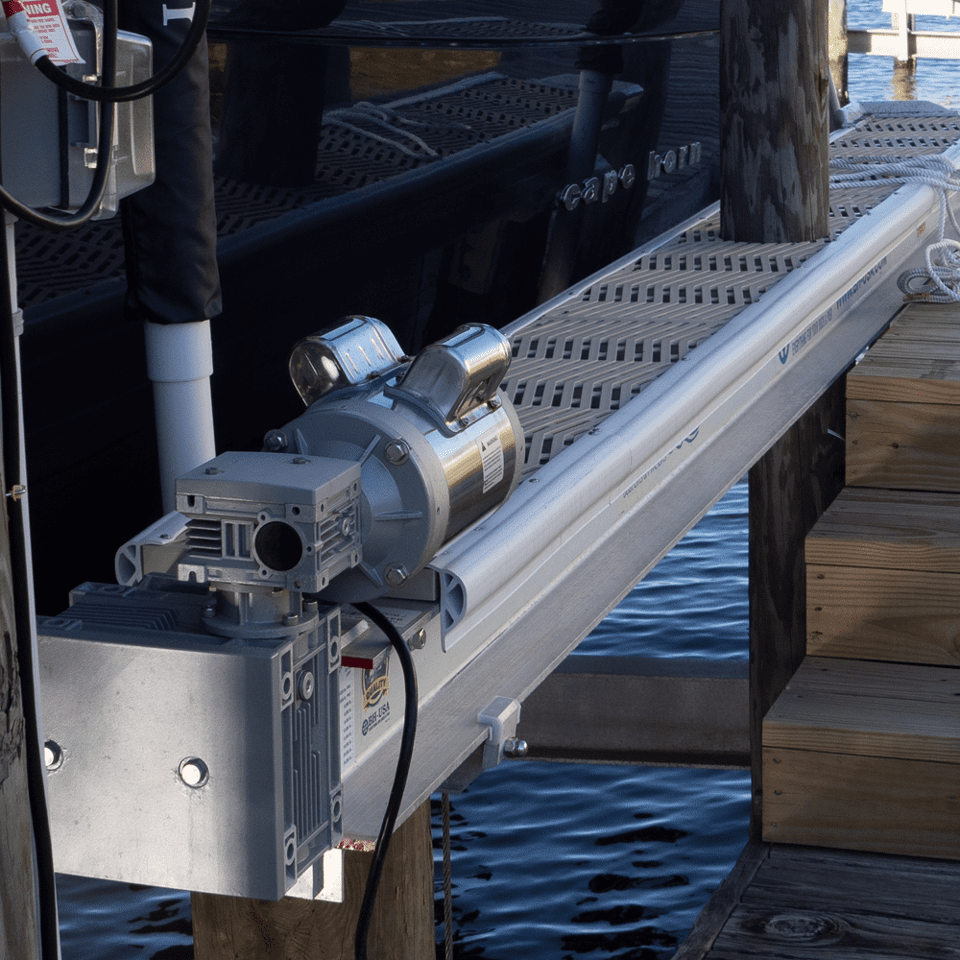

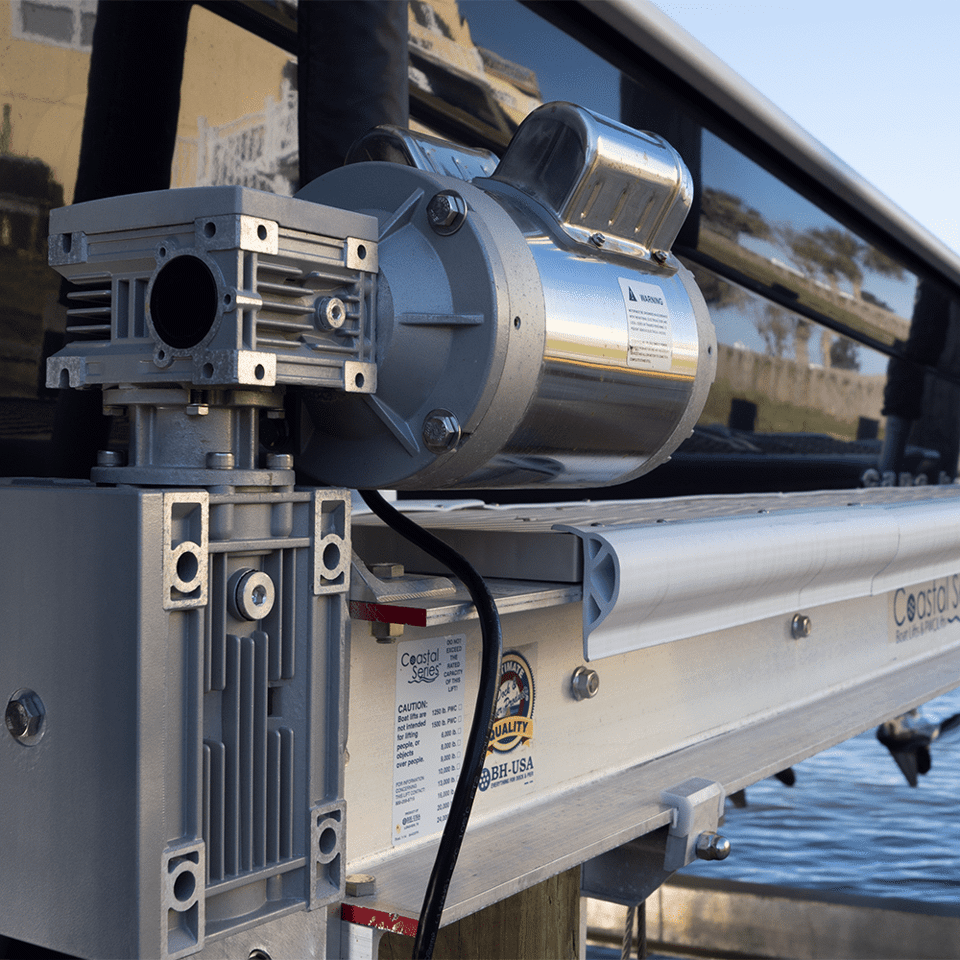

All aluminum pile mount boat lifts include a BH-USA A-Drive direct-drive hoist and a c-face input wired boat lift motor.
