3 in. 1.5 Ton Painted Snatch Block

$ 71.87
SKU: 97160
UPC: 602573842270

available

Free Shipping
×

Free Shipping

Boat Hoist USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

Qty.

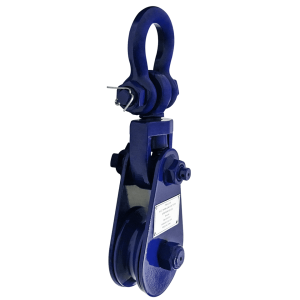

3 in. 1.5 Ton Painted Snatch Block

The 3 in. 1.5 Ton Painted Snatch Block – a tough and handy tool for lifting and rigging jobs. Built strong with user-friendly features, this snatch block is ready for challenging tasks.

  • Sturdy Build:
    • Made of tough steel, coated with durable paint for corrosion resistance.
  • Smooth Operation:
    • The 3-inch sheave is pre-mounted for smooth cable movement, handling up to 1/2-inch boat lift cables.
  • Secure Connection:
    • Break-away shackle with a bow-shaped design ensures a reliable cable connection. Ears support the shackle pin for added stability.
  • Easy Maintenance:
    • Includes a cast-protected 1/4 inch grease fitting for hassle-free lubrication, reducing wear and tear.
  • Compact and Portable:
    • Dimensions of 6 1/2 inches x 3 7/8 inches x 3 inches, weighing only 3 1/2 pounds – compact yet sturdy.

This snatch block is your go-to for light-duty lifting and rigging tasks. Whether in marine operations, construction, or general lifting, it’s designed to meet your needs. High load capacity, compatibility with various cable sizes, and user-friendly features make it a must-have in your lifting and rigging toolkit.

Remember, ensure your chosen shackle meets or exceeds the working load limit (WLL) for your application. Prioritize safety and follow industry best practices for secure operation.

Specifications

Sheave Size 3 in. x 3/4 in. Sheave Bore 1/2 in.
Sheave Cable Groove 1/2 in. Shackle Dimensions 3 in. x 3 in. x 5/8 in.
Safety Pin Holes 2 Safety Pin Hole Size 1/2 in.
Safety Pin Quick Release Size 2 7/8 in. x 5/16 in. (Fully Extended) Yarding Block Dimensions 4 3/4 in. x 3 7/8 in. x 3 1/4 in.
Grease Fitting Size 1/4 in. (Cast Protected) Housing Bottom Bolt 1 3/4 in. x 1/4 in. (Cast Protected)
Weight 3 1/2 lbs. (each) Material Steel
Finished Galvanized Stamp Rating 1.5 ton / 3,000 lbs.
Dimensions 6 1/2 in. x 3 7/8 in. x 3 in.
