4 in. Galvanized Cradle Beam
$282.54 - $799.95
Make Your Selection:
Special Order
Special Order
Stock Policy
Shipping Policy
Return Policy
4 in. Galvanized Cradle Beam
The 4 in. Galvanized Cradle Beam is used on pile mount and overhead boat lifts. Their main function is to be the frame where the wood bunks are attached to allows the boat to rest of the cradle bunks. Made from steel, welded endplates, then hot-dipped galvanized for long lasting protection. Each endplate has (2) 5/8 in. holes that allows cable to be attached to each end. It has a weight rating of 1,500 lbs of distributed load.
Freight Only Shipping
Cradle Beams cannot be shipped UPS Ground. The cradle beams are secured to a pallet and ships via Freight. The end-user is responsible for unloading. Freight companies will not unload or drop off your load if you are not present. It is the purchaser’s responsibility to arrange a delivery date with the freight company. Shipping to a business address with a forklift is highly recommended by BH-USA.
Specifications
General Specifications |
|||
|---|---|---|---|
| Material: | Steel | Type: | Hot-Dipped Galvanized |
| Beam Length: | Varies | Endplate Length: | 3.25 in. |
| Beam Width: | 2.625 in. (2 5/8 in.) | Endplate Width: | 0.3125 in. (5/16 in.) |
| Beam Height: | 4 in. | Endplate Height: | 10 in. |
| Mounting Holes: | 2 | Endplate Attachment: | Welded (Before Galvanizing) |
| Mounting Hole Size: | 0.625 in. (5/8 in.) | Cradle Beam Weight: | 7.7 lbs. / ft. |
| Weight Rating: | 1,500 lbs. (Distributed Load) | Shipment Type: | Freight |
Cradle Beams cannot be shipped UPS Ground. The cradle beams are secured to a pallet and ships via Freight. The end-user is responsible for unloading. Freight companies will not unload or drop off your load if you are not present. It is the purchaser’s responsibility to arrange a delivery date with the freight company. Shipping to a business address with a forklift is highly recommended by BH-USA.
Product Overview
{{dc:woocommerce:product_short_description}}
You may also like…
-

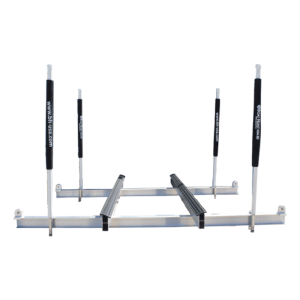

20,000 lb. Aluminum V-Hull Inboard Boat Cradle
$4,417.90 – $5,696.28 Select options This product has multiple variants. The options may be chosen on the product page -
13,000 lb. Aluminum Pontoon Boat Cradle
$3,142.90 – $4,013.64 Select options This product has multiple variants. The options may be chosen on the product page -

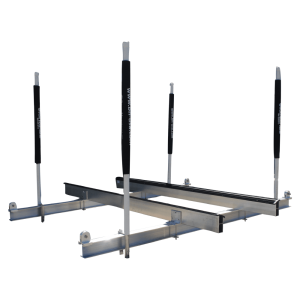

20,000 lb. Aluminum V-Hull Outboard Boat Cradle
$5,700.52 – $7,999.95 Select options This product has multiple variants. The options may be chosen on the product page -

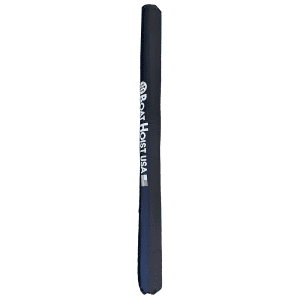

Black Weighted Boat Lift Sling
