5/8 in. 3.25 Ton Galvanized Screw Pin Shackle

SKU: BH09099 UPC: 091037090997

$8.64

In stock

in stock

Free Shipping
×

Free Shipping

Boat Hoist USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

Qty.



In Stock

Have questions about this product? Contact us.

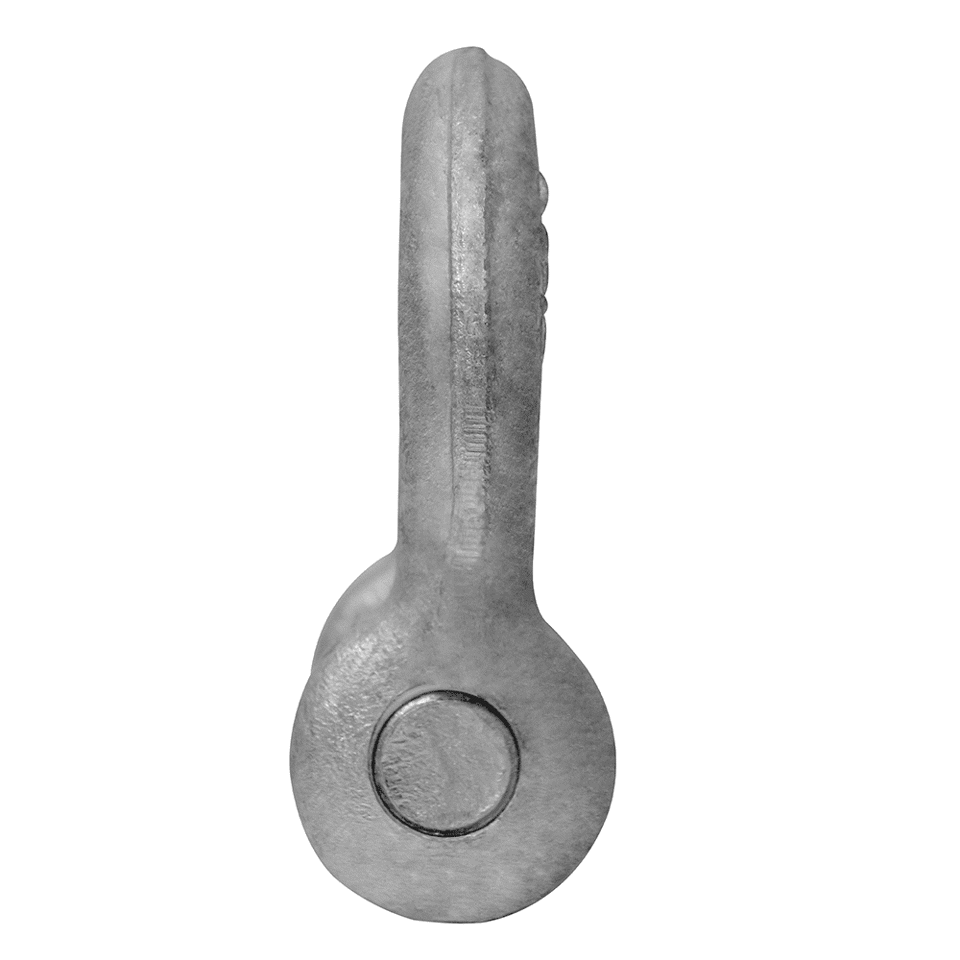

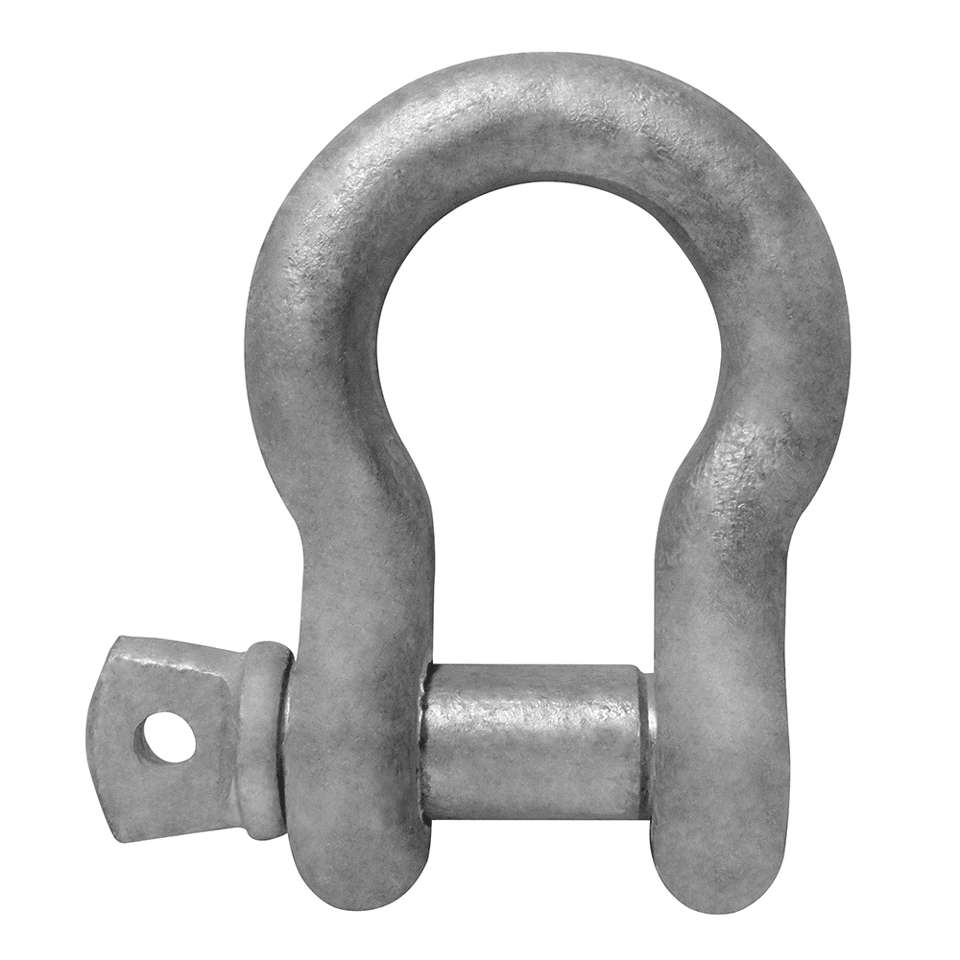

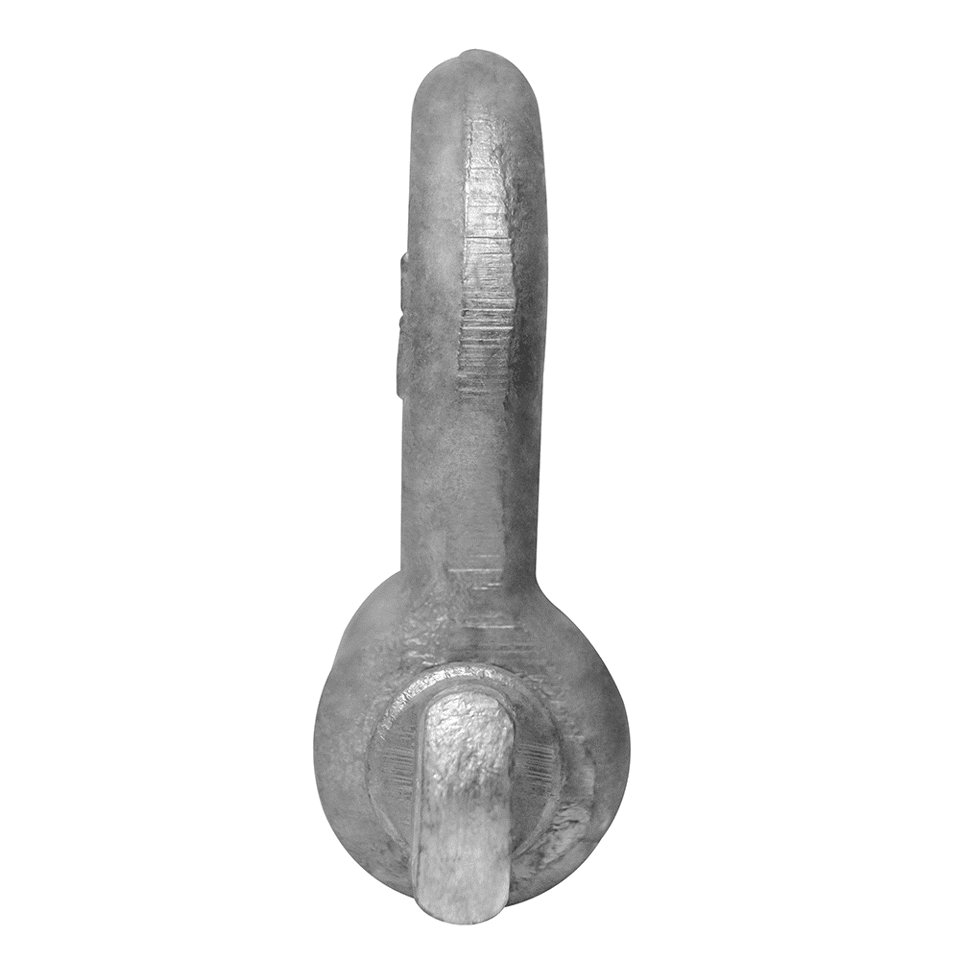

5/8 in. 3.25 Ton Galvanized Screw Pin Shackle

The 5/8 in. 3.25 Ton Galvanized Screw Pin Shackle is hot dipped galvanized per ASTM A153 standards. Features a heat-treated screw pin for securement. Manufactured out of forged steel then galvanized. Designed frequent removal. Permanently marked with size and working load limit (WLL), in tons. Designed to lift up to 3.25 tons of weight.

Screw pin shackles (also known as a screw pin bow shackle) are designed to offer the security of a strong connection with the ease of a quick-release pin. The bow shape has the ability to handle a wider variety of connections and multi-dimensional pulling.  Chain shackles (also called D shackles) have a more narrow profile and are meant to be used for straight-line pulls.

The screw pin mechanism makes screw pin anchor shackles a good choice for temporary lifting jobs or those that require frequent connects and disconnects because the quick-release pin action is faster to attach and detach than a shackle with a round pin.

5/8 in. 3.25 Ton Galvanized Screw Pin Shackle

Product Details

Product Overview
  • Raised stamp rating
  • Forged shackle
  • Made from hot-dipped galvanized steel
  • Meets ASTM A 153 regulations
  • 5/8 in. shackle pin diameter
Specifications
Type
Anchor shackle
Pin Style
Screw pin
Working Load Limit
6,500 lbs
Width Between Eyes
1 3/8 in.
Pin Dia.
5/8 in.
Body Size
1 5/8 in.
Body Material
Forged steel
Finish
Hot-dipped galvanized
Pin Material
Forged Steel
Raised Stamp
(WLL) 3.25 Ton
