8 in. x 12 1/2 ft. Aluminum Cradle Beam

$ 610.99
  • Made from marine-grade, extruded 6061-T6 US aluminum
  • Measures 12 ft. 6 in. L x 8 in. web x 5 in. flange
  • Includes aluminum structural beam with sheave housing installed on the flange
  • Ships loose freight only
SKU: 70375
UPC: 013964521450

In stock

in stock

Free Shipping
×

Free Shipping

BH-USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

×

Shipping

BH-USA has partnered with UPS to offer Ground, Next Day Air, 2nd Day Air, and 3 Day Select services to our customers. In order to ship with these methods, the order must meet UPS's requirements.

Freight

Your order will be shipped via the most cost-effective method possible. All shipping and handling charges are the responsibility of the customer. Additionally, they are responsible for any delivery issues that may hinder delivery. In such cases, extra fees can apply, such as residential delivery fees.

Click the button below to learn more about our ordering and shipping policies.

Our Shipping Partners shipping modal logos

Qty.



8 in. x 12 1/2 ft. Aluminum Cradle Beam

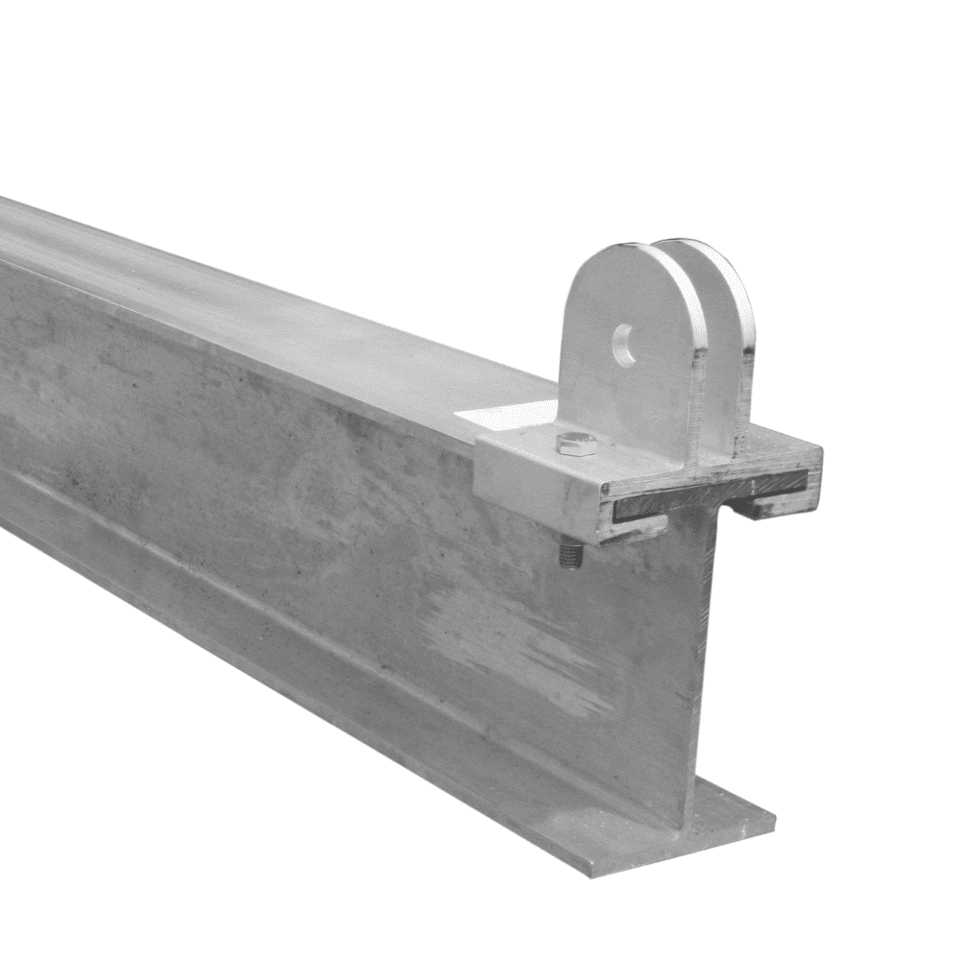

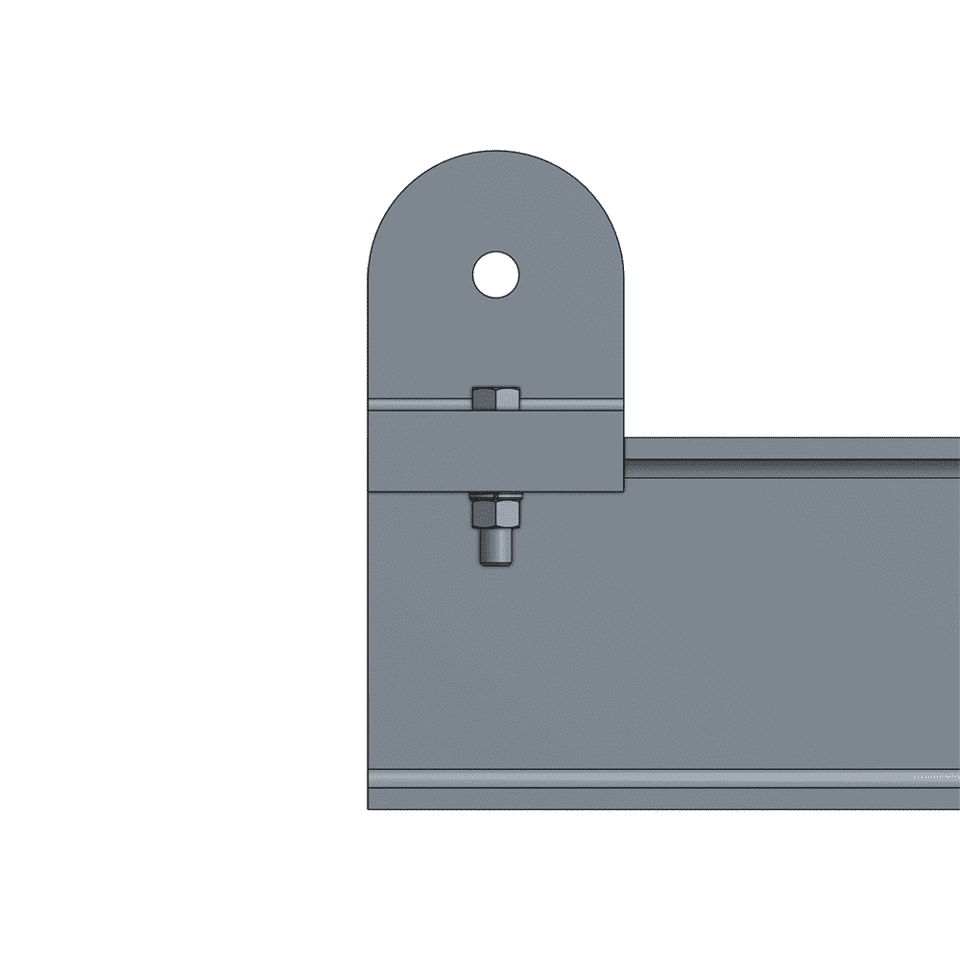

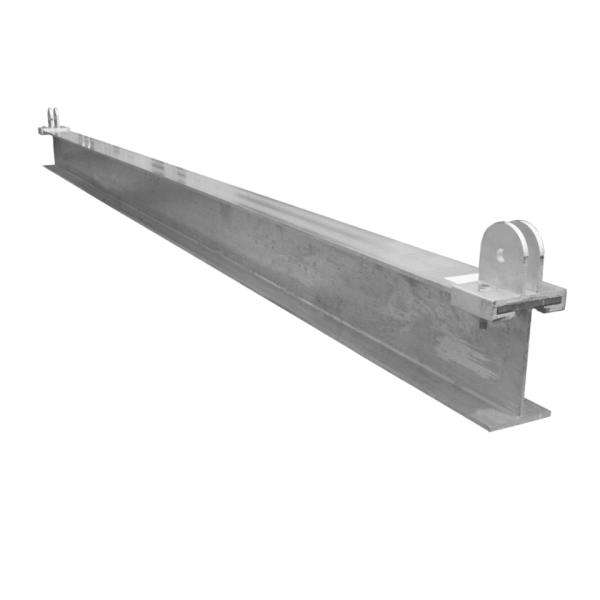

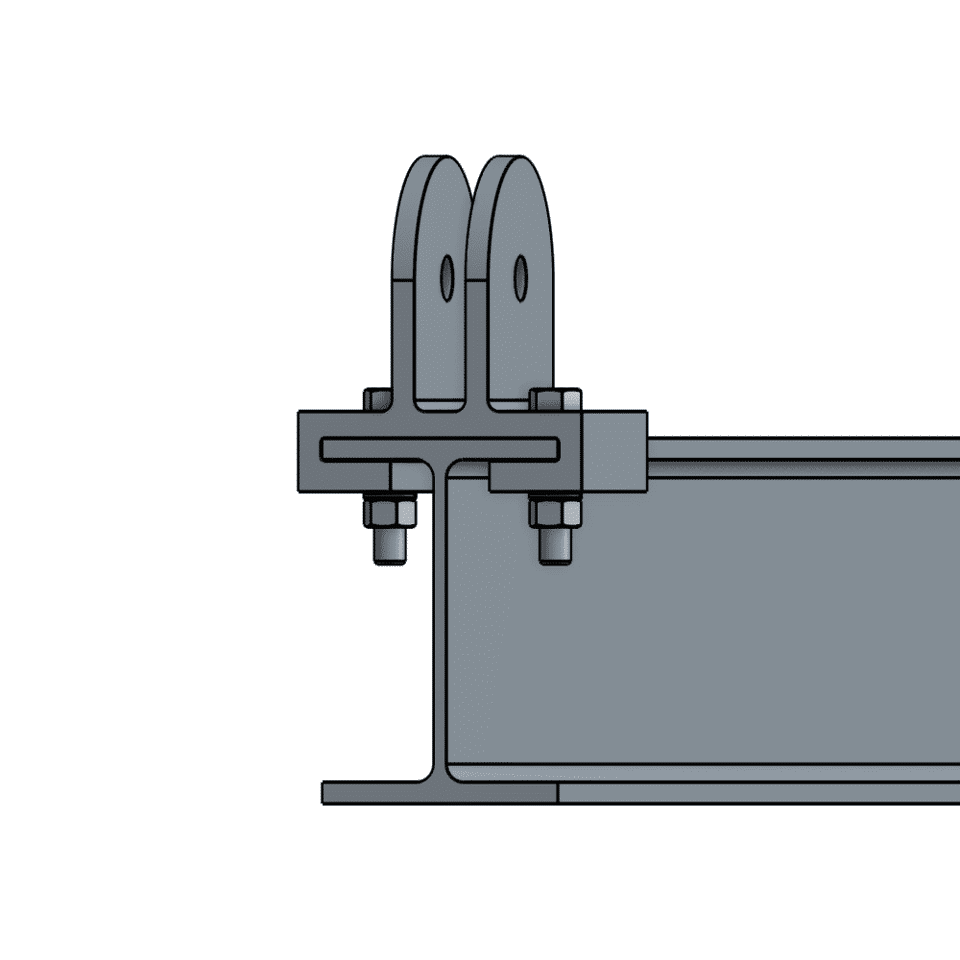

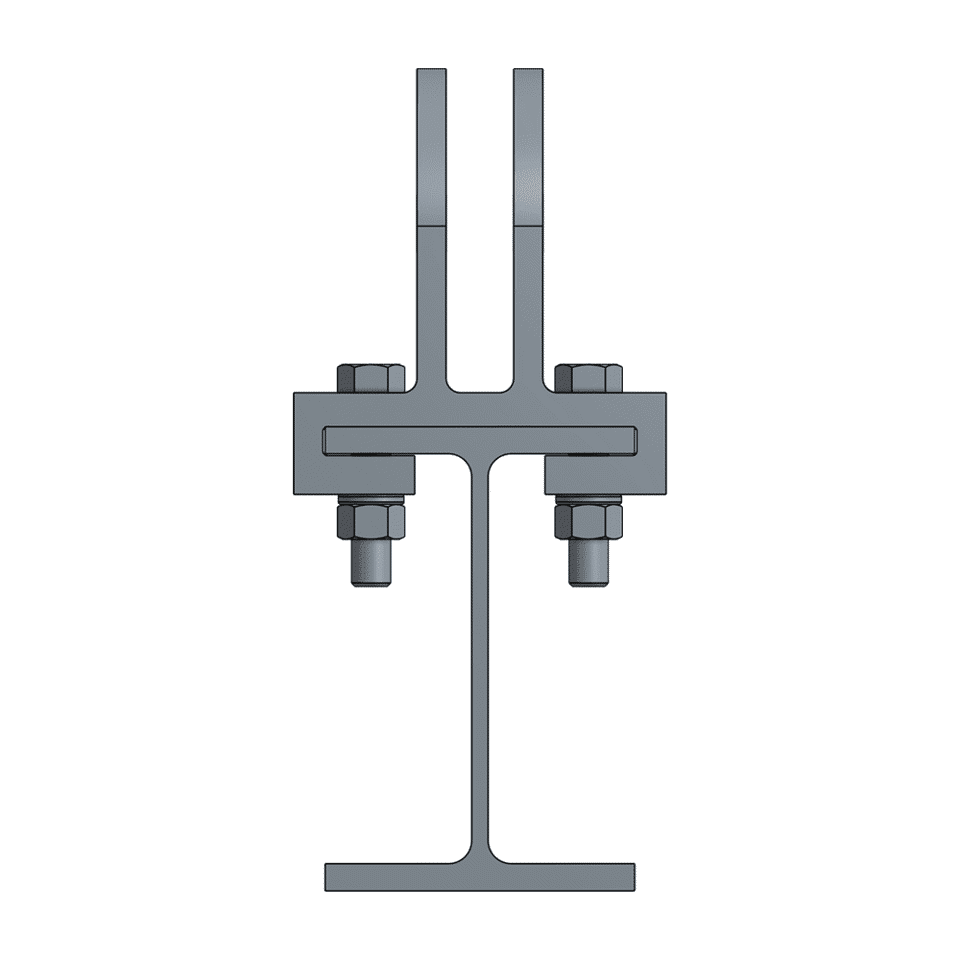

The 8 in. x 12 1/2 ft. Aluminum Cradle Beam is an extruded aluminum I-beam with sheave housing mounted on the ends of the flange. Sheave housings accommodate 4 in. aluminum sheaves with a bronze bushing. Using an axle bolt with washers and a nut holds sheave in place.

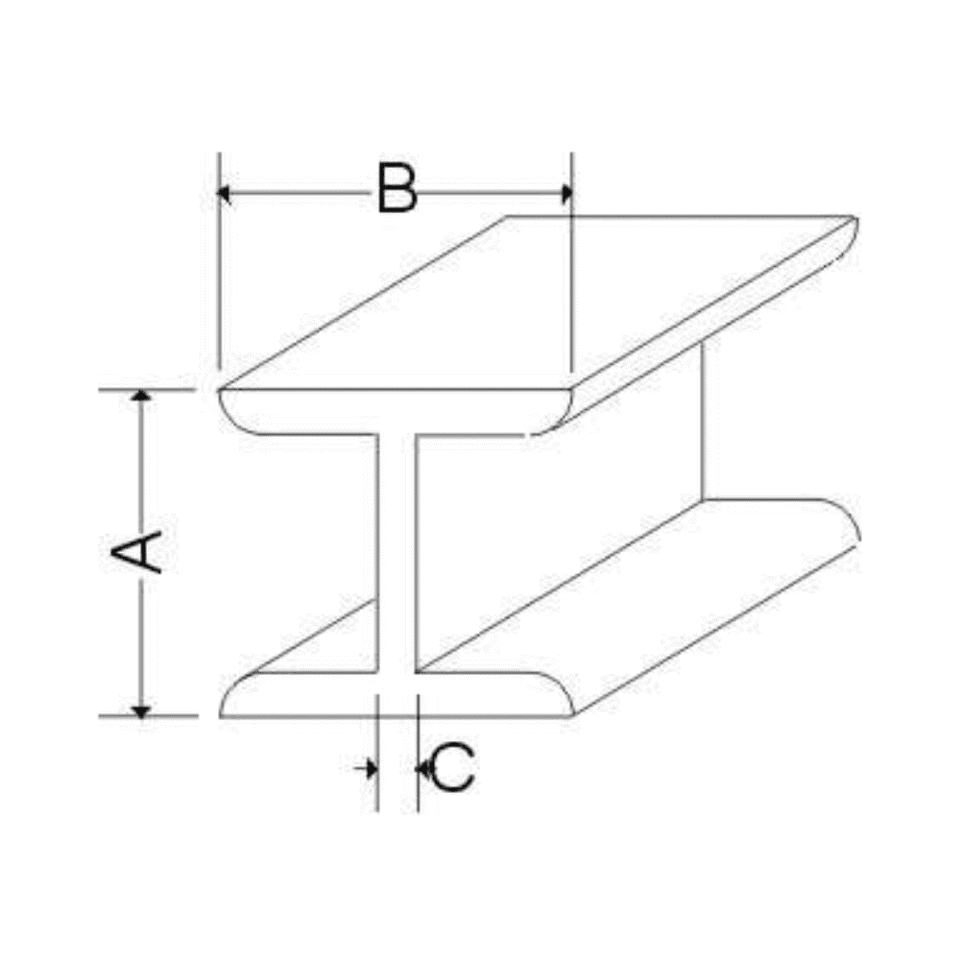

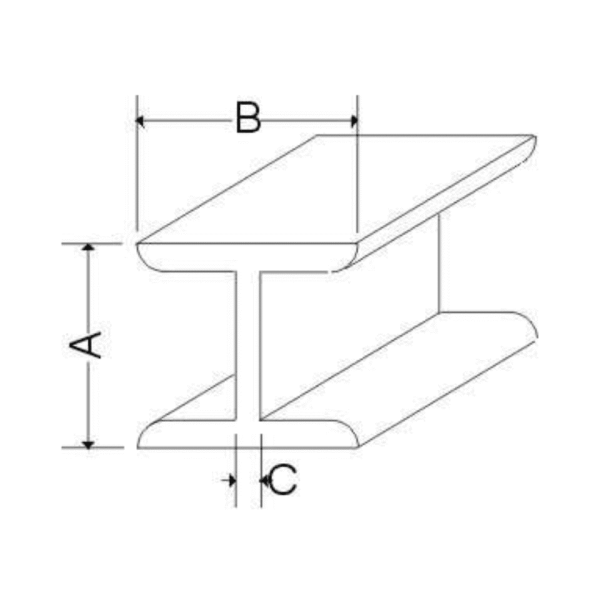

Made from marine-grade, extruded 6o61-T6 US aluminum. No weld construction. The sheave housings include the cradle beam mounting fasteners. Measures 12 ft. 6 in. L x 8 in. web x 5 in. flange. .250 in. web thickness. .410 in. flange thickness. 6.307 lbs. per linear ft.

4 in. sheave and axle bolt is not included.
Drilling into the aluminum structural beam compromises the integrity of the aluminum structural beam.
Cradle Beams cannot be shipped UPS Ground. The cradle beams are secured to a pallet and ships via Freight. The end-user is responsible for unloading. Freight companies will not unload or drop off your load if you are not present. It is the purchaser’s responsibility to arrange a delivery date with the freight company. Shipping to a business address with a forklift is highly recommended by BH-USA.
