8,000 lb. Aluminum Four Post Pile Mount Lift

20K Aluminum Four Post A-Drive Top Beam Set

8,000 lb. Aluminum Four Post Pile Mount Lift

$ 7,989.72

8,000 lb. straight-line cable lifting capacity
Mounts to 4 pilings
6061-T6 US aluminum top beams
Features maintained drum switches
Features 110v motors
In-line GFCI control cable
Complete lift ships freight in a crate
Includes direct-drive hoist

SKU: 84874

UPC: 091037848741

available

Free Shipping

Stock Policy

Shipping Policy

Return Policy

8,000 lb. Aluminum Four Post Pile Mount Lift

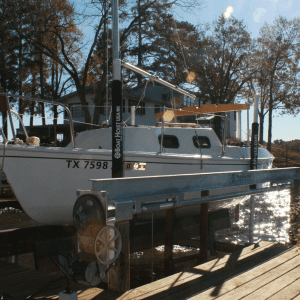

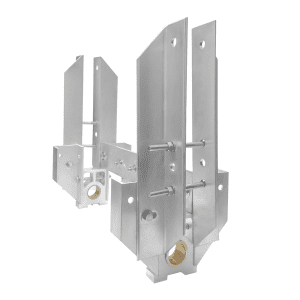

The 8,000 lb. Aluminum Four Post Pile Mount Lift mounts on the top of four dock pilings. The side-mounted boat lift uses a straight-line configuration. Includes 36 ft. of 5/16 in. thick 7 x 19 aircraft cable. Cut cable to at least 15 ft. The lift features a no-weld design. Made from 6061-T6 US aluminum channel. Includes A-Drive direct-drive boat hoist. The hoist uses a 40:75 double reducer gearbox and a 1 HP Elite stainless steel boat lift motor wired to 110v with a maintain (lock-on) boat lift cam switch and a 110v in-line GFCI. It does not include mounting bolts for the dock pilings.

All aluminum pile mount boat lifts include a BH-USA A-Drive direct-drive hoist and a c-face input wired boat lift motor.

All BH-USA lifts come standard with 36 ft cable drops. There are no compounding options available on the BH-USA Coastal Series 6K and 8K lifts. As a result, you will need to cut down the cable to a minimum of 15 feet, then discard the waste. When using lifts designed to be straight lined, do not use all 36 ft cable drops as this will damage the lift and cause it to fail.

General Specifications

Lifting Capacity:

8,000 lbs.

Hoist Type:

Direct-Drive

Minimum Piling Size:

8 in.(dia.)

Hoist Style:

A-Drive

Material:

Aluminum

Motors:

1 HP

Type:

Side Mount

Motor Voltage:

110v

Top Beam Specifications

Material:

Aluminum

Type:

6061-T6 US

Length:

12 1/2 ft.

Beam Wt/Lin ft.:

2.212 lbs.

Web:

6 in.

Web Thickness:

.210 in.

Flange:

4 in.

Flange Thickness:

.350 in.

Material Type:

Extruded

Bearing Block Weight:

1.15 lbs.

Bearing Block Length:

5 1/2 in.

Bearing Block Material:

Aluminum

Bearing Block Width:

1 1/2 in.

Material Type:

6061-T6 US

Bearing Block Height:

4 3/4 in.

Bore:

1 7/8 in.

Bearing Surface:

1 5/8 in.

Mounting Holes:

Great Fitting Size:

1/4 in.

Mounting Hole Size:

9/16 in.

Drive Pipe Specifications

Drive Pipe Type:

Sch. 40

Driveshaft Size:

1.5 in.

Drive Pipe Length:

11 ft. 11 1/2 in.

Driveshaft Fits:

40:75 A-Drive Gearbox

Drive Pipe Width:

5.8 lbs.

Driveshaft Length:

12 5/8 in.

Drive Pipe Finish:

Hot-Dipped Galvanized

Driveshaft Width:

1 3/8 in.

Mounting Hole Amount:

Input Length:

1 7/8 in.

Hole Size:

1/2 in.

Input Width:

1 1/4 in.

Keystock Groove:

4 in. x 1/4 in.

Input Height:

5/8 in.

Keystock Length:

3 1/2 in.

Output Length:

8 7/8 in.

Keystock Width:

1/4 in.

Output Width:

1 3/8 in.

40:75 Gearbox Specifications

Product Weight:

28.35 lbs.

Shipping Box:

13.50 in. x 8 in. x 11.75 in.

Product Length:

11.16 in.

Product Width:

7.21 in.

Product Height:

13.23 in.

Material:

Cast Aluminum

Gearbox Type:

Double worm reduction

Box Type:

Fully enclosed

Gear Type:

40:75

Actual Ratio:

450:1

Output Shaft:

1.25 in.

Input Motor Shaft:

0.625 in.

Motor Shaft to Pipe Shaft:

6.59 in.

Pipe Mount Bolt Size:

(4) 0.50 in.

Motor Mount Type:

NEMA 56C

Motor Mount Bolt Size:

(4) 0.375 in.

Motor Mount to Bolt Mount:

4.15 in.

3/4 HP Output Torque:

3.699 in. / lbs.

1 HP Output Torque:

4.943 in. / lbs.

Lube Type:

Specially-blended

Relubricating:

Maintenance-free

Warranty:

5 years

Motor Flange Length:

4.78 in.

Motor Flange Width:

3.94 in.

Motor Flange Height:

3.37 in.

Pipe Flange Length:

8.07 in.

Pipe Flange Width:

5.04 in.

Pipe Flange Height:

6.77 in.

1 HP Motor Specifications

Weight:

28.60 lbs.

Individual Box Size:

15 in. x 10 in. x 10 in.

Product Length:

10.75 in.

Product Width:

6.50 in.

Product Height:

9.0 in.

Shaft Width:

0.625 in.

Shaft Length:

2 in.

Country of Origin:

China

Model #:

93048

Retail SKU:

93091

HP:

Voltage:

Dual (115v / 230v)

Phase:

Amps:

15.6 (115v)

RPM:

1725

Hz:

Frame:

56c

Service Factor:

1.15

SFA:

17.5 (115v)

Type:

AMB:

40°c

Time:

15 MIN

HSG:

TENV

Code:

Insulation:

Thermally Protected:

None

UL:

Recognized

UL Stamp:

C-UL-US

Electrical Type:

Capcitor Start

Rotation:

Selective

Shaft Type:

NEMA 56

Shaft Extension:

1.88 in.

Frame Length:

9.0 in.

Mounting:

Round

Drive End Bearing:

Ball

Opp Drive End Bearing:

Ball

Frame Material:

Stainless Steel

Replacement Capacitor:

800 uF

Capacitor SKU #:

BH02246

Keystock:

Included

Keystock Length:

1 in.

Keystock Width:

0.25 in.

Boat Lift Switch Specifications

Maintained

Model #:

CA0200034I-B96IQ6R

Box Color:

Light Grey

Retail SKU #:

BH09014

Housing Length:

4.5 in.

Weight:

1.25 lbs.

Housing Width:

3.5 in.

Handle Color:

Red

Housing Height:

4.5 in.

Handle Length:

3.0 in.

Housing Length:

4.5 in.

Handle Width:

1.1875 in.

Housing Width:

3.5 in.

Handle Height:

1.3125 in.

Housing Height:

4.5 in.

Country of Origin:

Italy

Amps:

Torque:

Tight

VAC

600

Certification:

EN 60947-3

Handle Width:

1.1875 in.

Certification:

Handle Height:

1.3125 in.

Certification:

C-UL-US Listed

Country of Origin:

Italy

GFCI Wire Harness Specifications

110v

Manufacturer:

Southwire Company

GFCI to Plug:

4.5 in.

Plug Type:

3-US 110 V Standard

Cord Diameter Range:

0.28 – 0.65 in.

VAC:

125

Country of Origin:

Honduras

Hz:

UL:

Listed

Amps:

CSA:

Certified

Watts:

1875

Reset Button:

Yes

Type:

Rainproof Class A

Reset Type:

Automatic

GFCI Type:

In-line

BH-USA SKU:

12211

Cable Type:

14/5 SJTW

Catalog #:

303385214

6 in. Cradle Beam Specifications

Material:

Aluminum

Type:

6061-T6 US

Style:

Marine-grade extruded

Beam Type:

Structural

Web Size (A):

6 in.

Flange Size (B):

4 in.

Web Thickness (C):

.250 in.

Flange Thickness:

.410 in.

Beam Wt./Lin Ft.:

8.646 lbs. (per ft.)

Accepts:

4 in. Aluminum Sheave

Sheave Housing Dimensions:

10 in. web x 6 in. flange

Sheave Bolt Bore:

0.75 in. (3/4 in.)

Material:

Aluminum

Length:

14 ft.

Fasteners Material:

316 stainless steel

Bolt Type:

Hex Head

Bolt Amount:

Bolt Size:

0.5 in. x 2.5 in.

Washer Type:

Lock

Nut Type:

Threaded

Washer Size:

1/2 in.

Nut Size:

0.50 in.

Washer Amount:

Nut Amount:

0.50 in.

8 in. Cradle Bunk Specifications

Material:

Aluminum

Type:

6061-T6 US

Style:

Marine-grade extruded

Bunk Type:

Cradle

Height:

8 in.

Length:

12 ft.

Padding Type:

Rubber

Bunk Angle:

19 Degrees

Padding Style:

Non-Marking

Padding Color:

Black

6 in. Bunk Mounting Kit Specifications

Material:

Aluminum

Type:

6061-T6 US

Mounts:

2 Bunks

Mounting Holes:

Length:

6 1/2 in.

Mounting Hole Size:

5/8 in.

Width:

4 in.

Plate Weight:

2.25 lbs.

Height:

6 in.

Plate Thickness:

3/8 in.

Accepts Bolts:

1/2 in.

Cradle Beam Mounting Holes:

Plate Length:

8 in.

Plate Thickness:

1/2 in.

Plate Width:

2 in.

Plate Weight:

0.60 lbs.

Mounting Holes:

Hole Size:

5/8 in.

Accepts Bolts:

1/2 in.

Hole Placement:

End of Backup Plate

Fastener Material:

Stainless Steel

Size:

1/2 in.

Hex Bolt Size:

1/2 in. x 8 in.

Washer Type(s):

Lock

Fastener Amount:

Nut Type:

Flange

Cable Specifications

Cable Diameter:

5/16 in.

Cable Material:

Stainless Steel

Cable Type:

7 x 19 Aircraft

Cable Amount:

Cable Length:

36 ft.

Cable Configuration:

Compounded

Cable Winders:

Cable Winder Type:

Single Direction

Winder Mount Style:

Side

Cable Winder Fits:

2 in. OD (1.5 in. ID) Drive Pipes

Wire Rope Clip Type:

Malleable

Wire Rope Clip Size:

1/4 in.

Wire Rope Clip Material:

Stainless Steel

Wire Rope Clip Amount:

Fastener Specifications

Fastener Size:

1/2 in.

Fastener Material:

Stainless Steel

Hex Bolt Dimensions:

1/2 in. x 2 in. (13 Thread)

Washer Type(s):

Flat | Lock

Hex Bolt Dimensions:

1/2 2 1/2 in.

Nut Type(s):

Flange

Fastener Size:

5/16 in.

Fastener Material:

Stainless Steel

Hex Bolt Dimensions:

5/16 in. x 2 3/4 in.

Washer Type(s):

Lock

6 in. Beam Guidepost Stanction Specifications

Material:

Aluminum

Metal Thickness:

3/8 in.

Material Type:

6061-T6 US

Stanchion Length:

24 in.

Inner Diameter:

1 3/16 in.

Stanchion Width:

1 in.

Accepts:

2 in. ID PVC Pipe

Stanchion Height:

15/16 in.

Hole Size:

0.25 in. (1/4 in.)

Backup Plate Length:

14 in.

Hole Reason:

Drain Water

Backup Plate Width:

2 in.

Mounting Holes:

2 (through pipe)

Hole Size:

9/16 in.

Distance Between Holes:

7 in. (center-to-center)

Fastener Material:

Stainless Steel

Hex Head Bolt Size:

1/2 in. x 6 in.

Washer Type(s):

Lock

Fastener Size:

1/2 in.

Nut Type:

Flange

Boat Cradle Guidepost Specifications

Material:

PVC

Rating:

ASTM D 2665

Compound:

PVC 1120 Type 1 Sch. 40

Width:

2 3/8 in. (2 in. ID)

PSI:

@ 23° C

Thickness:

0.1875 in. (3/16 in.)

Top Cap Modification:

Drilled

Length:

80 in.

Hole Size:

0.25 in. (1/4 in.)

Color:

White

Hole Reason:

Drain Water

Fits:

BH-USA Guidepost Stanchions

48 in. Split Guidepost Specifications

Padding Material:

Foam

Color:

Black

Foam Thickness:

1 in.

Cover Type:

Split

Cover Material:

Nylon

Length:

48 in.

Nylon Type:

200 Denier

Width

2 3/8 in.
