A-Drive PWC Single Worm Reducer Gearbox

$ 359.92
  • Fits most dockside PWC hoists/lifts
  • Works with C-Face direct input electric motors only
  • 40% faster than belt-driven PWC hoists
  • 1:100 worm gear ratio
SKU: BH09084
UPC: 091037090843

available

Free Shipping
×

Free Shipping

BH-USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

Qty.



A-Drive PWC Single Worm Reducer Gearbox

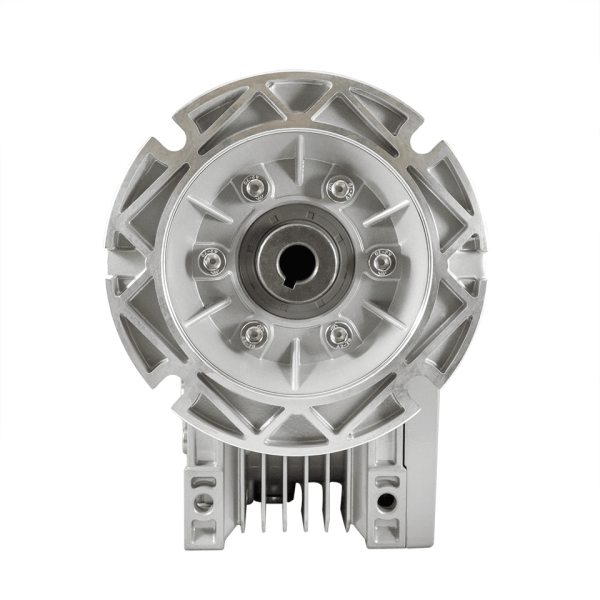

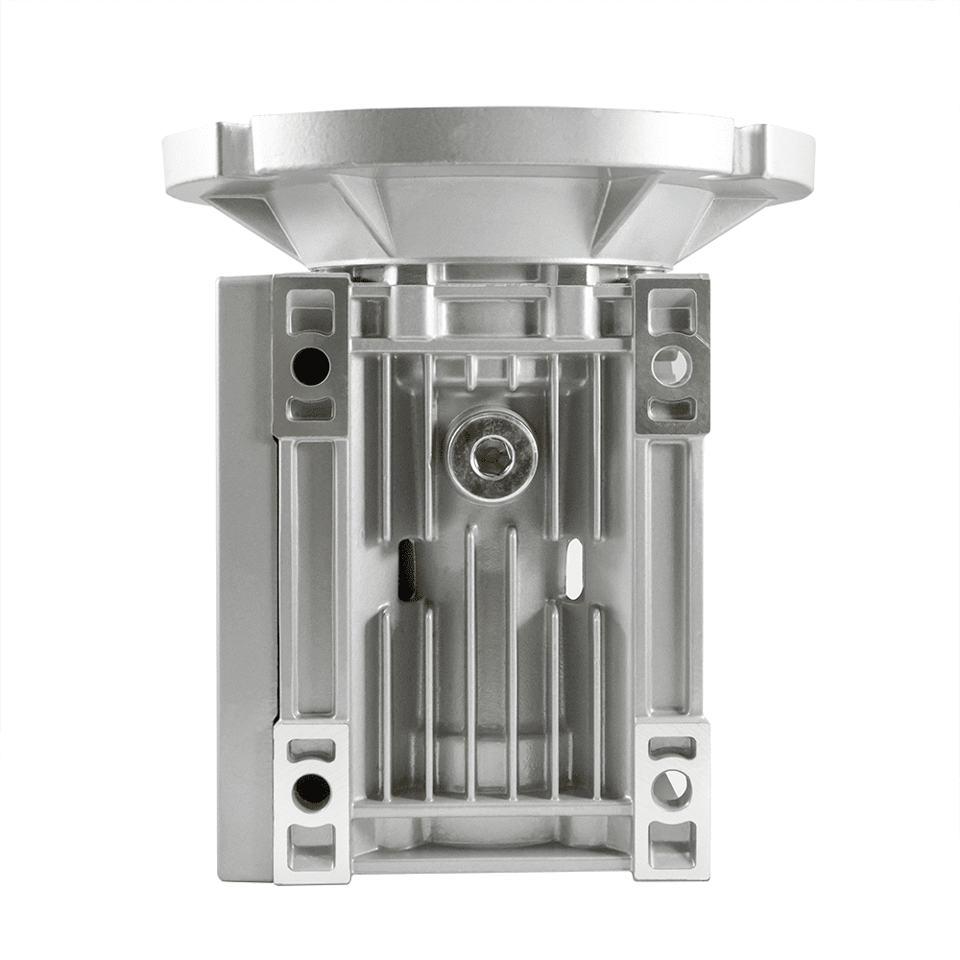

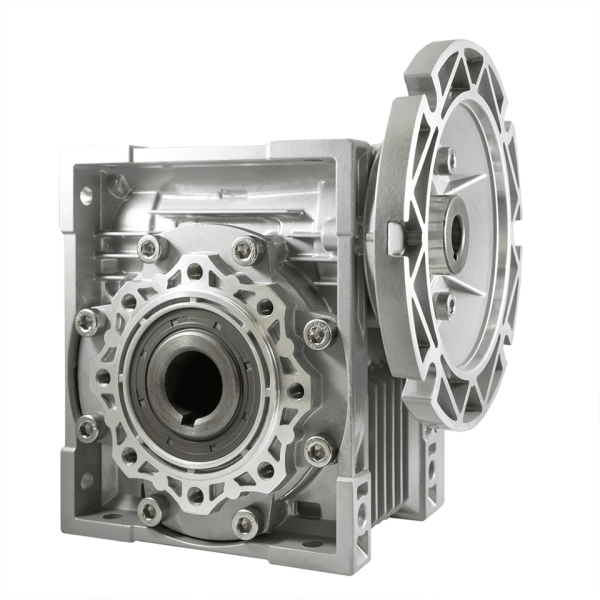

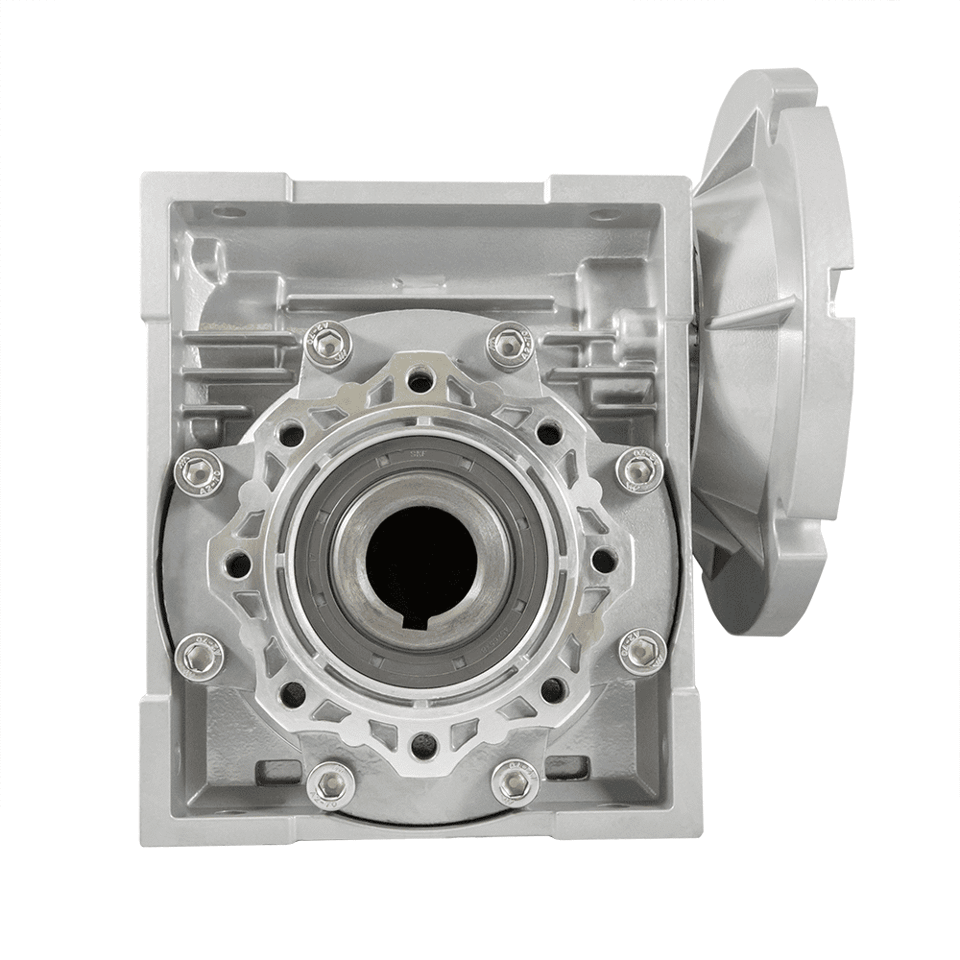

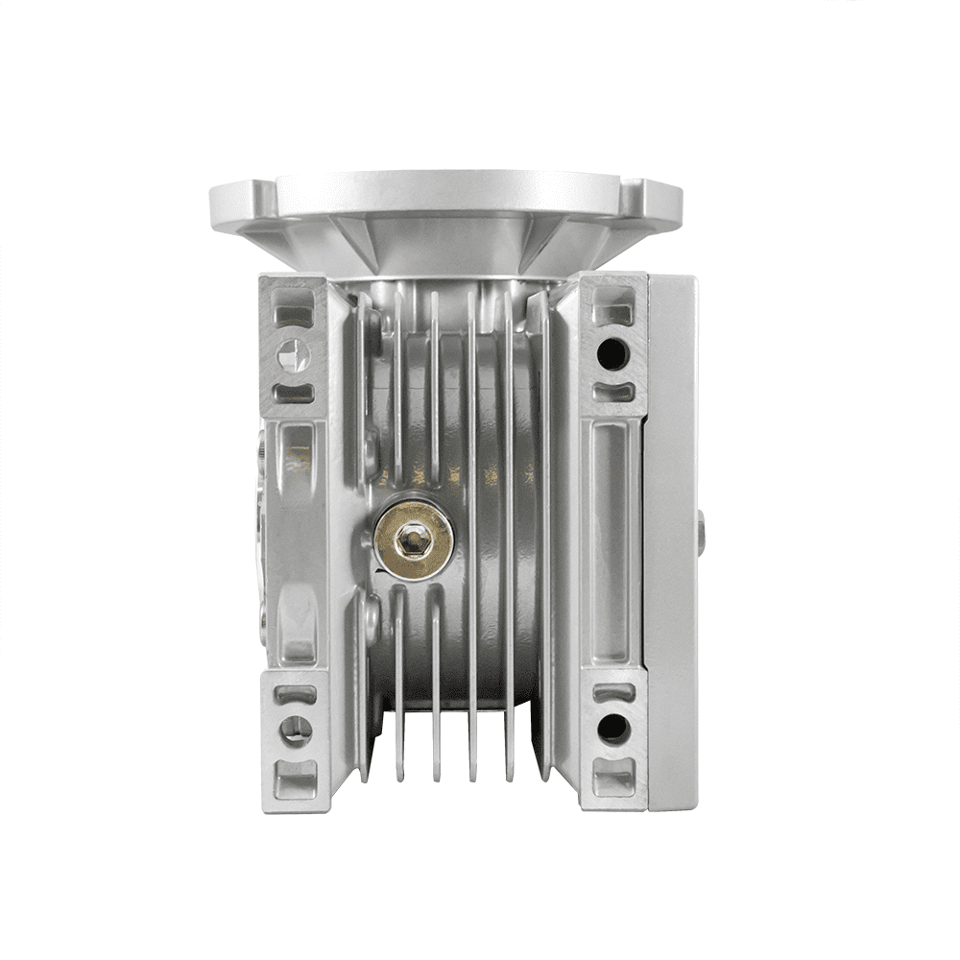

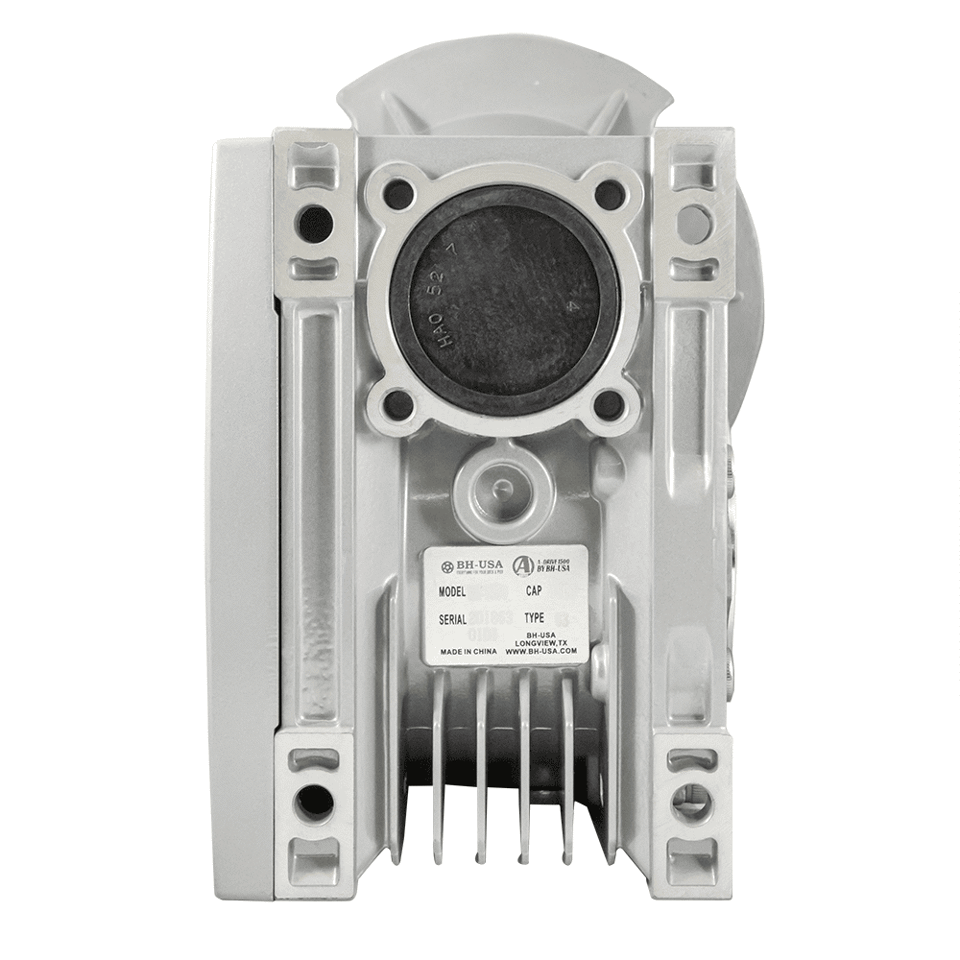

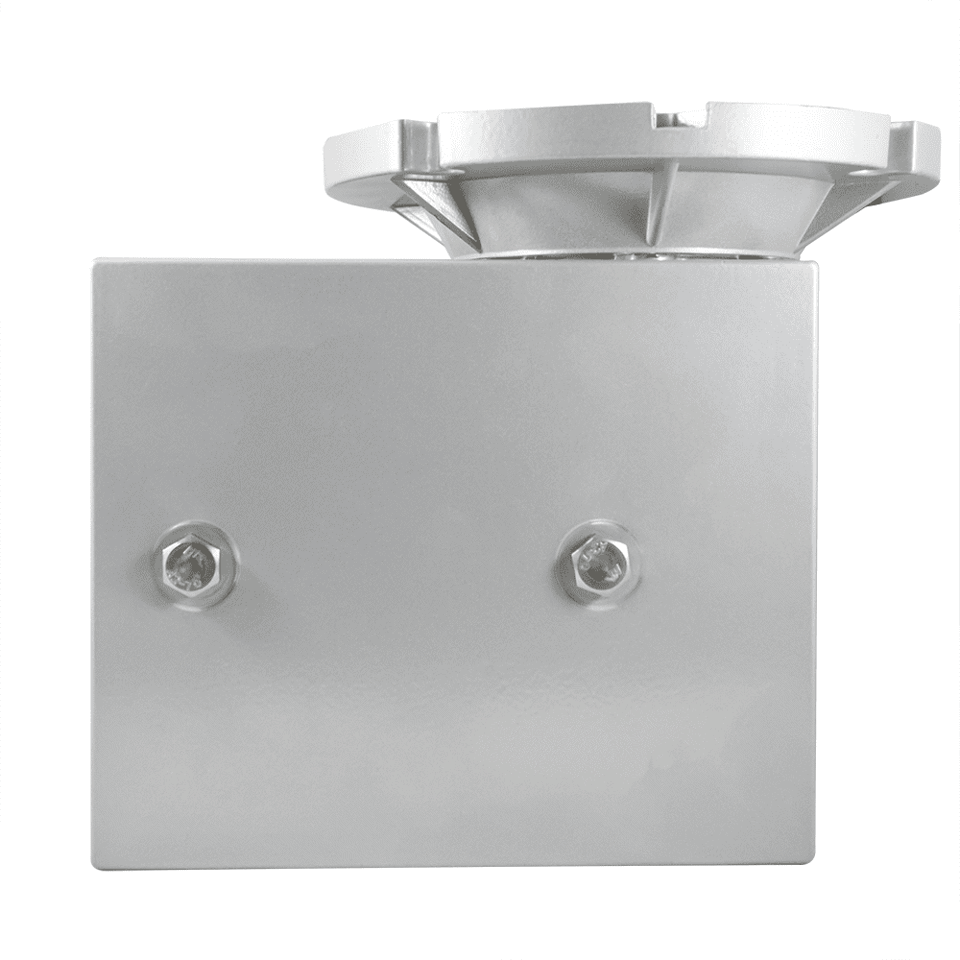

The A-Drive PWC Single Worm Reducer Gearbox is a direct-drive gearbox designed for personal watercraft. It fits C-face input 56F wired electric motors. Perfect for cargo elevators, beachside lifts, PWC lifts, or anything else that requires great torque in a small package. Made from solid aluminum housing with the exclusive A-Drive direct-drive technology.

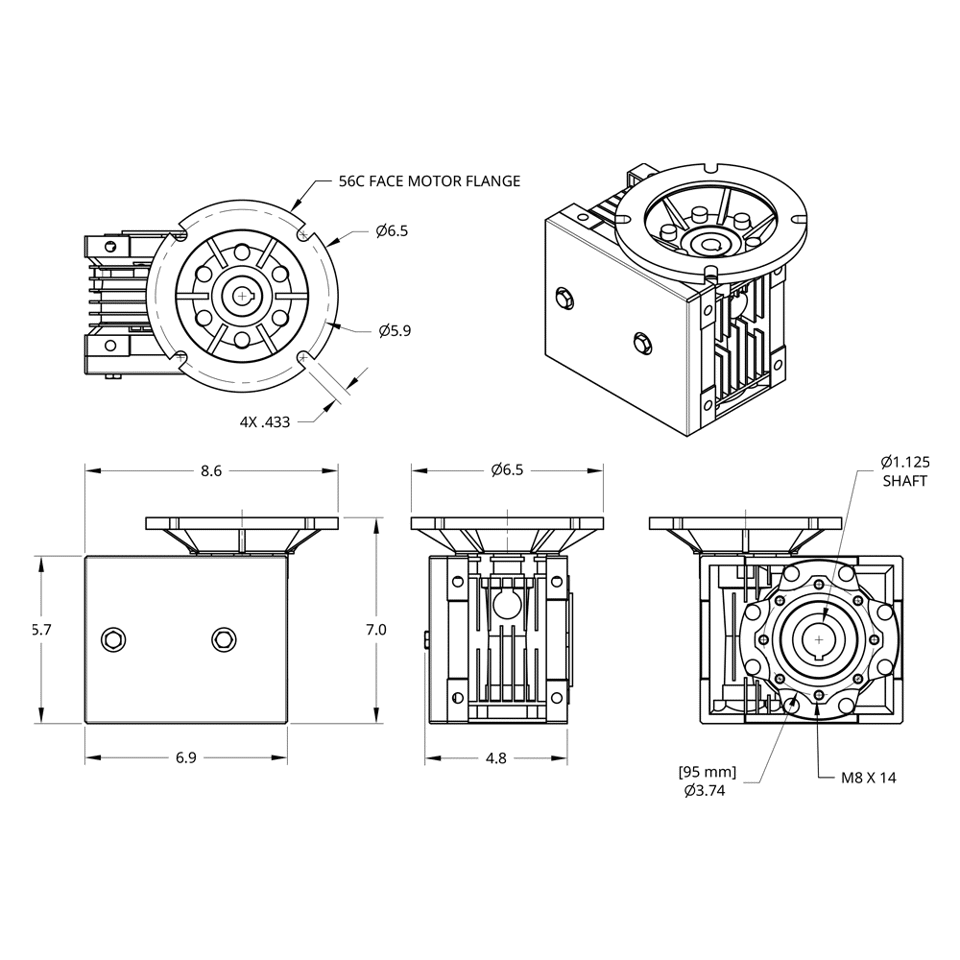

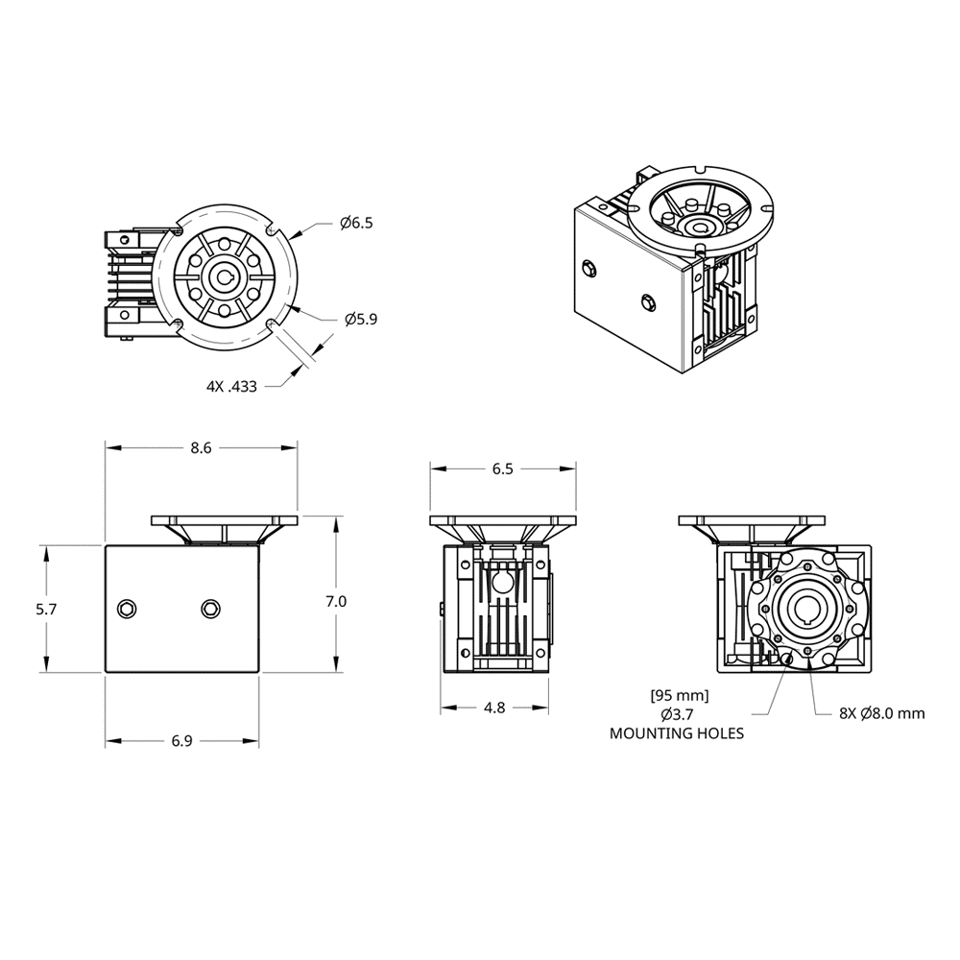

Permenately sealed boxes guarantee no leaks. Lubricant already installed in the worm reducer. Features 18 RPM output. 1.125 driveshaft output. 1:100 gear ratio. 1,500 lb. straight line lifting capacity. The box measures 8 9/16 in. L x 6 1/2 in. W x 7 in. H. Weights 13.7 lbs.
