Dual 2 7/16 in. Pillow Block Pipe Support Kit

The Dual 2 7/16 in. Pillow Block Pipe Support Kit mounts directly to wood beams or wooden joists. The kit includes a dual pillow block hanger bracket and 2 7/16 in. pillow block. Designed for a standard pillow block to mount to the plate. The pillow block helps support the weight of the drive pipe. The ultimate support for any center mount boat lift. This pipe support will mount to virtually any overhead wood beam with adjustable brackets.

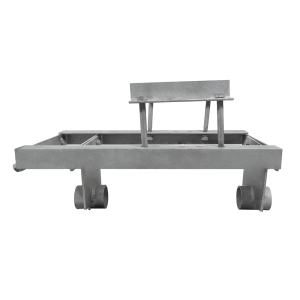

Dual Pillow Block Hanger Bracket

Will hold (2) 2 7/16 in. cast iron ball bearing pillow blocks, eliminating the friction that can be created when using other pipe supports with standard sleeves. Your lift will operate smoothly and quietly for years. It will give the pipe needed support on both sides of the cable, greatly reducing the chance of the unit getting into a bind. Add an optional cable winder and make lifting your boat smooth and easy.

2 7/16 in. Pillow Block

The 2 7/16 in. Pillow Block bearing is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Made from cast iron housing with a chrome steel ball-bearing insert. Features (2) 3/4 in. mounting holes. Powdercoated green finish. 2 7/16 in. bearing bore. Includes 1/4 in. press-in grease fitting mounted off-center.

Dual pipe supports, with or without hoist hanger, is best used in a center mount configuration. A 4,000 lb. maximum rating per hoist hanger when used correctly in center mounting. Side mounting greatly reducts the dual pipe support and hoist hanger capacity. A 1,000 lb. maximum rating when used correctly in side mounting. See the attached guide for more information and limitations.

Wood beam mounting fasteners not included
