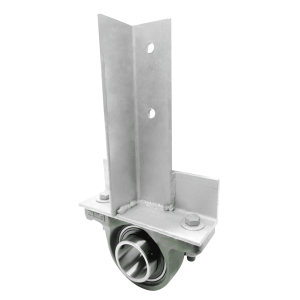

Heavy Duty Single V Pipe Support
$ 49.44
- Twisted design for added strength
- 3 1/2 in. long pipe sleeve
- 1/4 in. pipe sleeve grease fitting
- V-bracket pattern
- (2) 1/2 in. mounting hole on each bracket
- 9 1/4 in. bracket spread
- Mounts to wood beams
- Fits 2 3/8 in. OD drive pipe
- Center mount support only
SKU: 33887
UPC: 013964338874
Special Order
Stock Policy
Shipping Policy
Return Policy
Heavy Duty Single V Pipe Support
The Heavy Duty Single V Pipe Support gives drive pipe extra support. Designed for center-mounted drive pipes. The brackets are twisted around the drive pipe sleeve and welded. The unique twist allows for adjustment of the support after its installed. Allows installers adjustment when lining up the supports on the drive pipe. The brackets spread into a v-pattern. Each bracket has (2) 1/2 in. punched mounting hole. Features a 9 1/4 in. spread from inner tip to inner tip of the v-brackets. The pipe sleeve measures 3 1/2 in. long. Features an outer diameter of 2 7/8 in. The inner diameter accepts up to 2 3/8 in. outer diameter drive pipes. The sleeve includes an installed 1/4 in. screw-in grease fitting. Made from 1/4 in. hot-dipped galvanized steel.
Center mounting only. Wood beam mounting fasteners are not included.
