Single 2 7/16 in. Pillow Block Pipe Support Kit
$ 99.99
- Center Mount Only
- Wood beam/wood joist mounting bracket
- Hot-dipped galvanized steel
- 2 7/16 in. pillow block installs onto the block hanger bracket

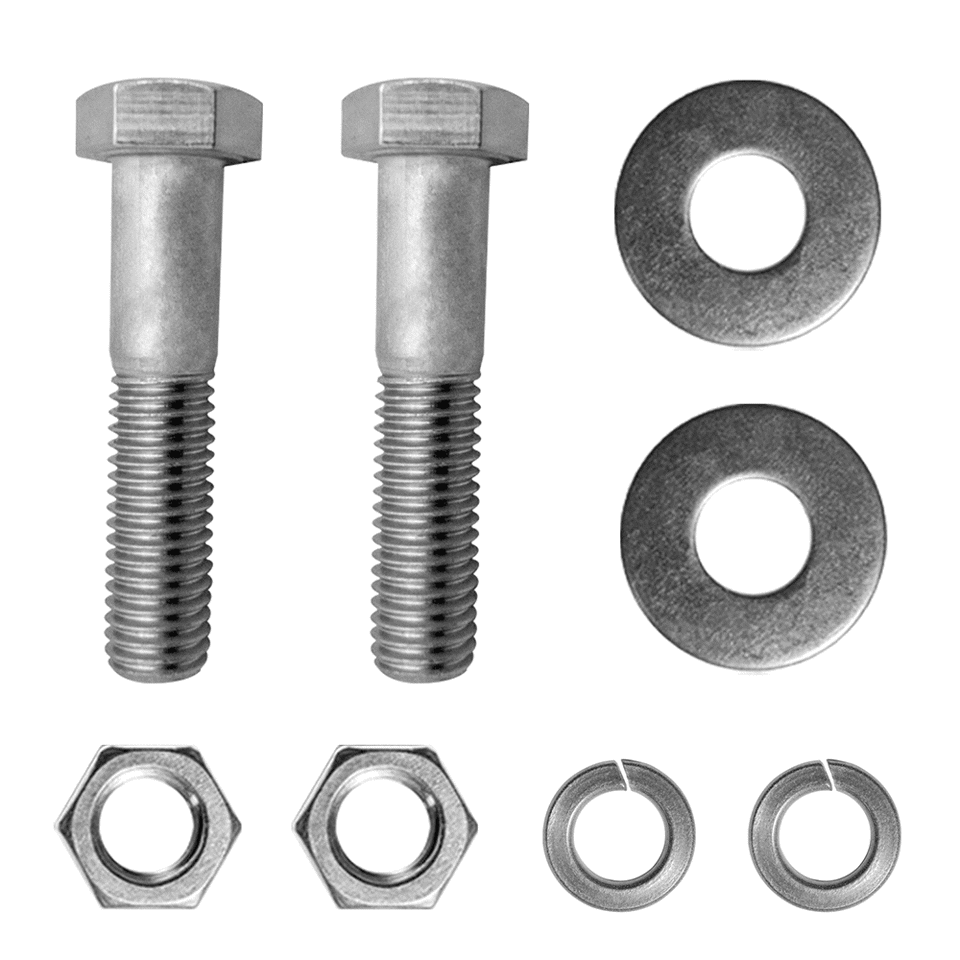

- Pillow block fasteners included
- Accepts 2 3/8 in. OD (2 in. ID) drive pipes
- Wood beam mounting fasteners not included
SKU: BH09088
UPC: 091037090881
Only 11 left in stock
Special Order
Stock Policy
Shipping Policy
Return Policy
Single 2 7/16 in. Pillow Block Pipe Support Kit

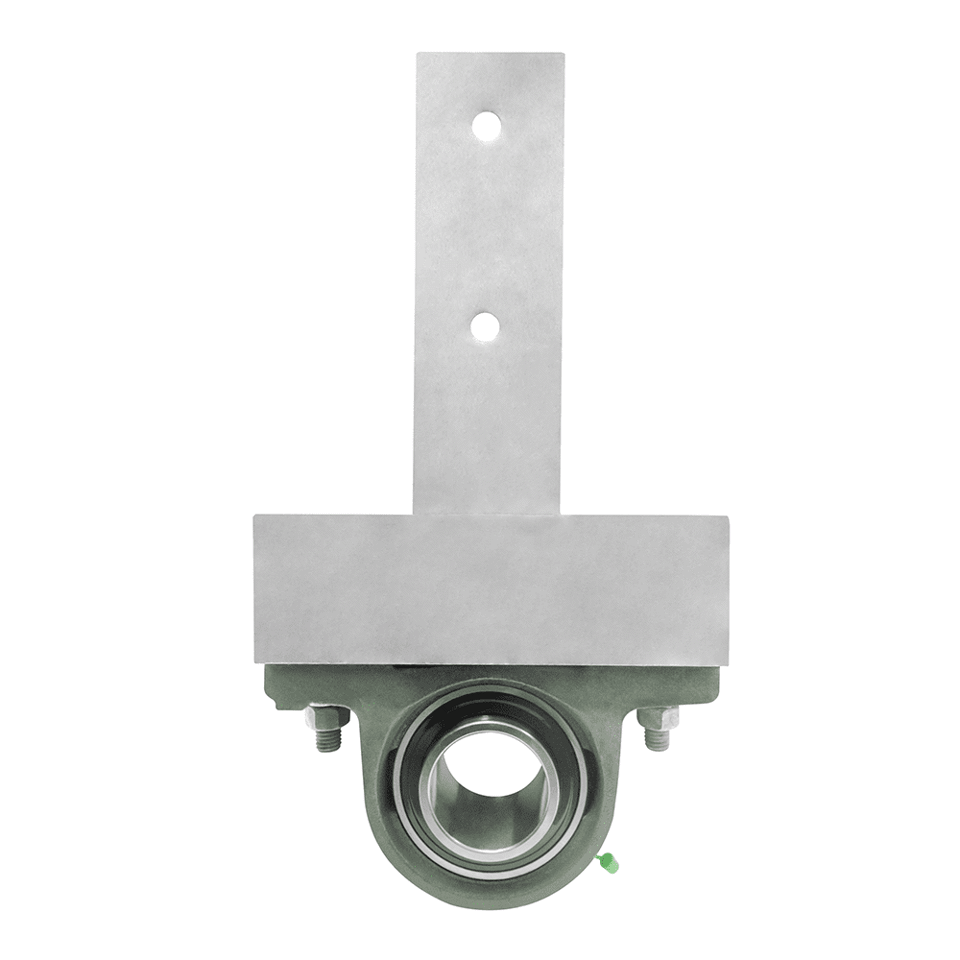

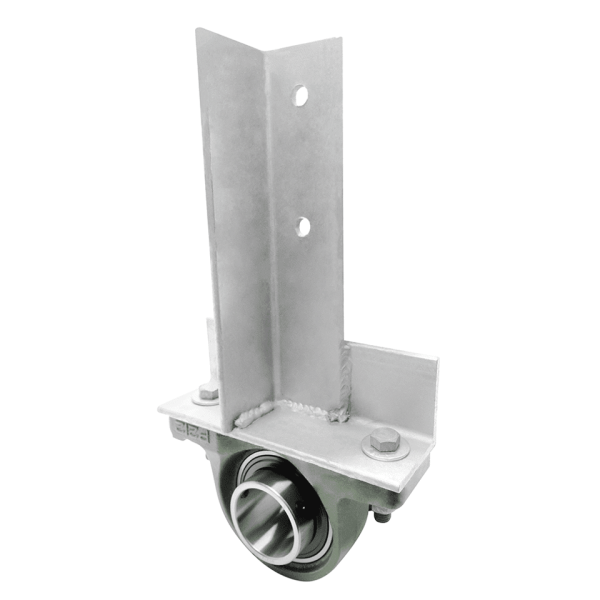

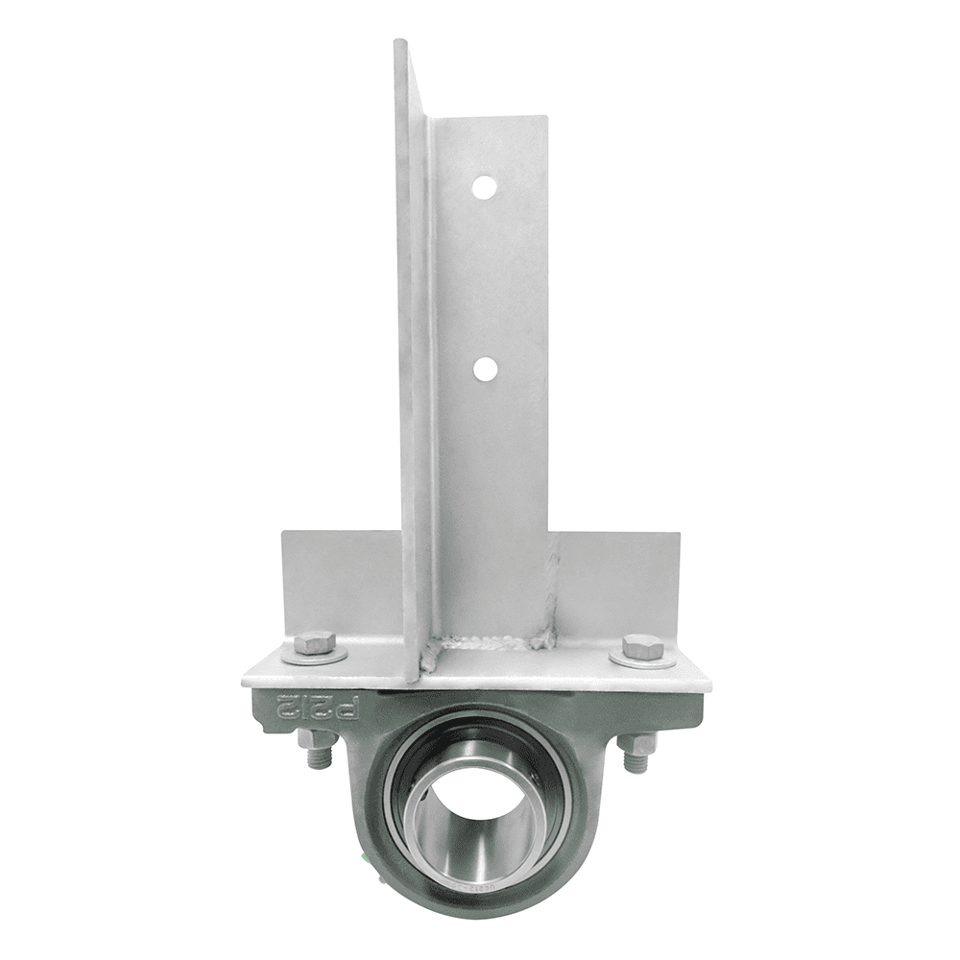

The Single 2 7/16 in. Pillow Block Pipe Support Kit mounts directly to wood beams or wooden joists. The kit includes the single pillow block hanger bracket and 2 7/16 in. pillow blocks. Pillow block mounting fasteners included. The pillow block helps support the weight of the drive pipe. Accepts 2 3/8 in. OD (2 in. ID) drive pipes.

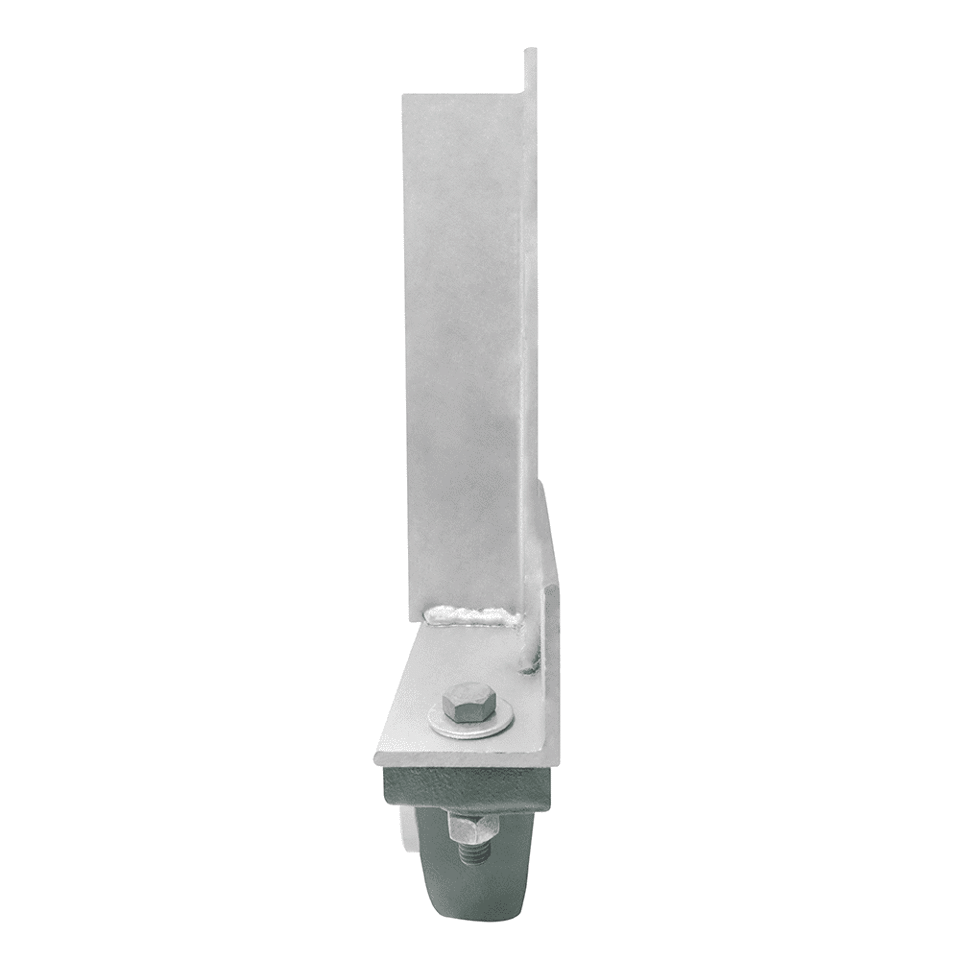

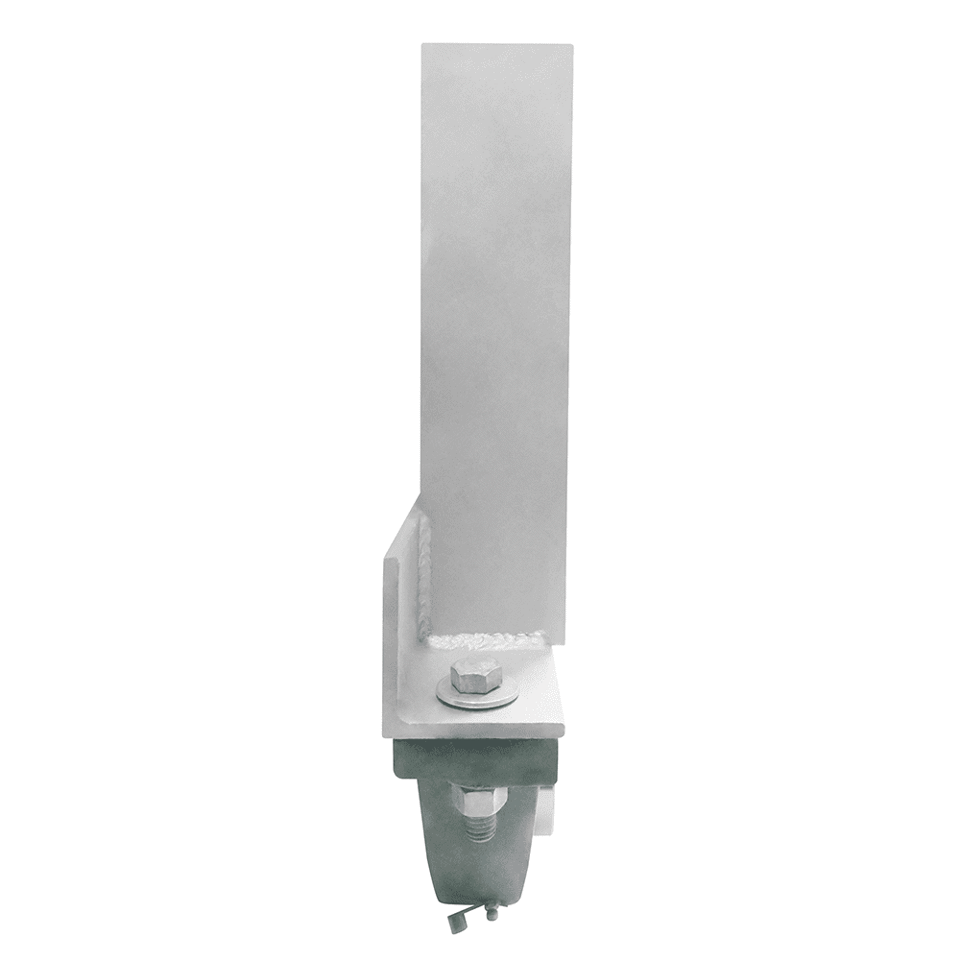

Single Pillow Block Hanger Bracket
Made from 1/4 in. hot-dipped galvanized steel. Feature (2) 3/4 in. pillow block mounting holes. 7 1/4 in. center-to-center on the plate. Built with (2) 1/2 in. wood beam mounting holes. Measuring 4 in. center-to-center.

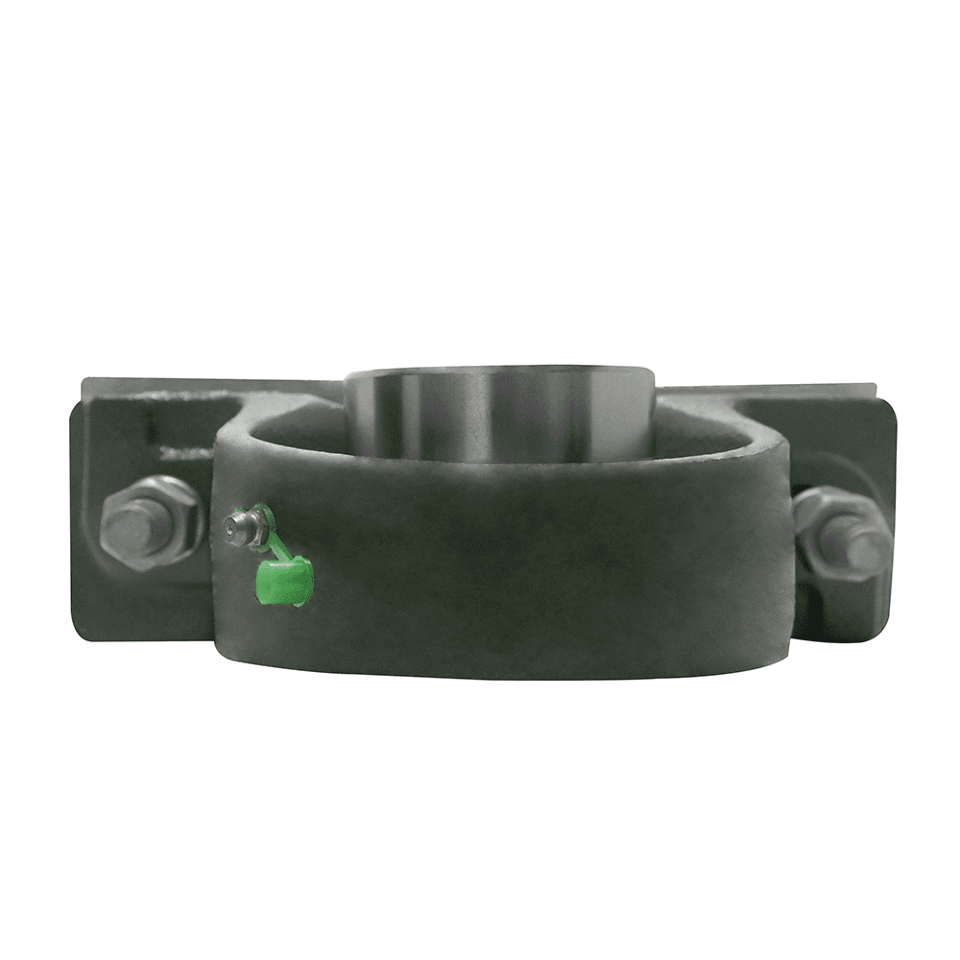

2 7/16 in. Pillow Block
The 2 7/16 in. Pillow Block bearing is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Made from cast iron housing with a chrome steel ball-bearing insert. Features (2) 3/4 in. mounting holes. Powdercoated green finish. 2 7/16 in. bearing bore. Includes 1/4 in. press-in grease fitting mounted off-center.
Wood beam mounting fasteners not included
Center mount only.
