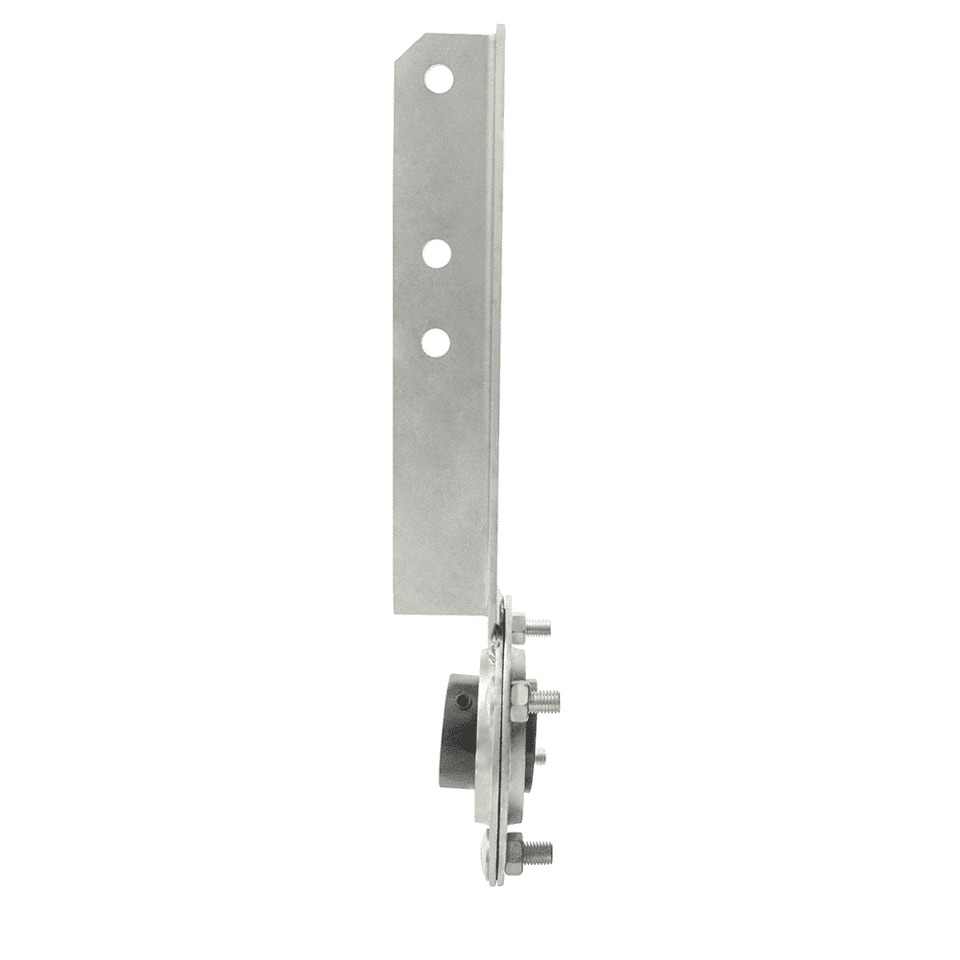

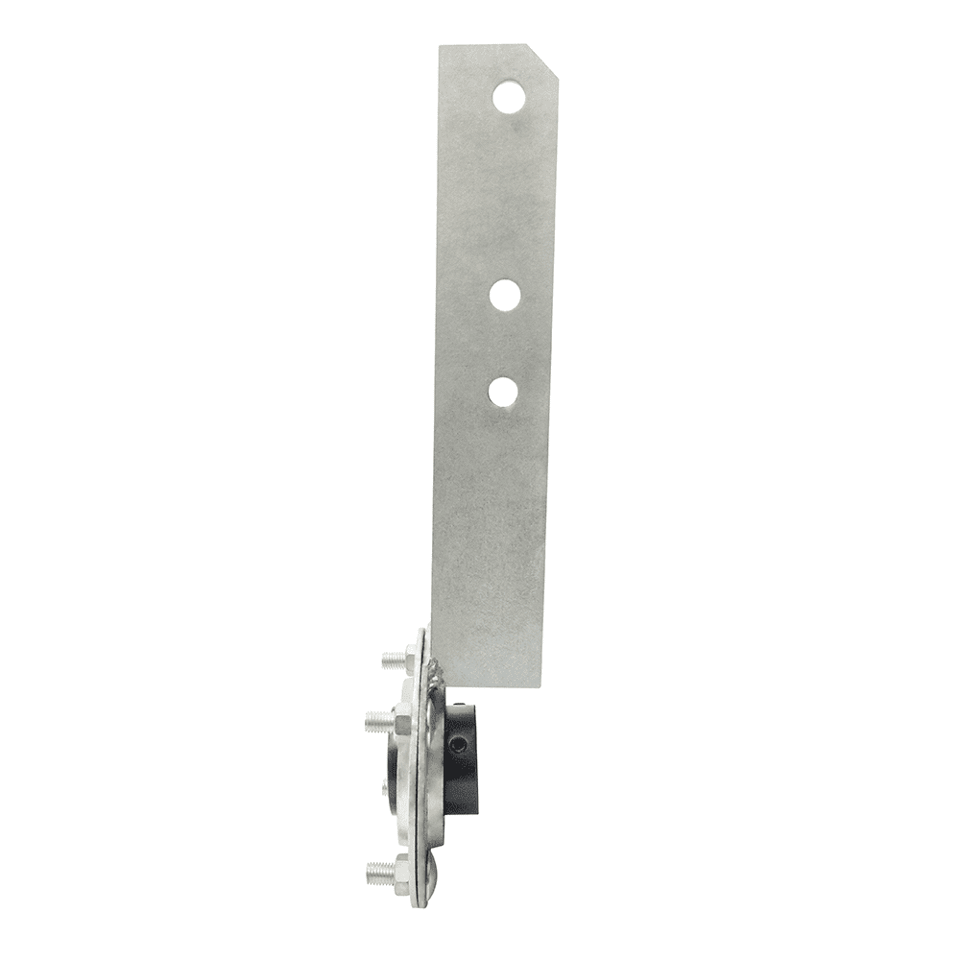

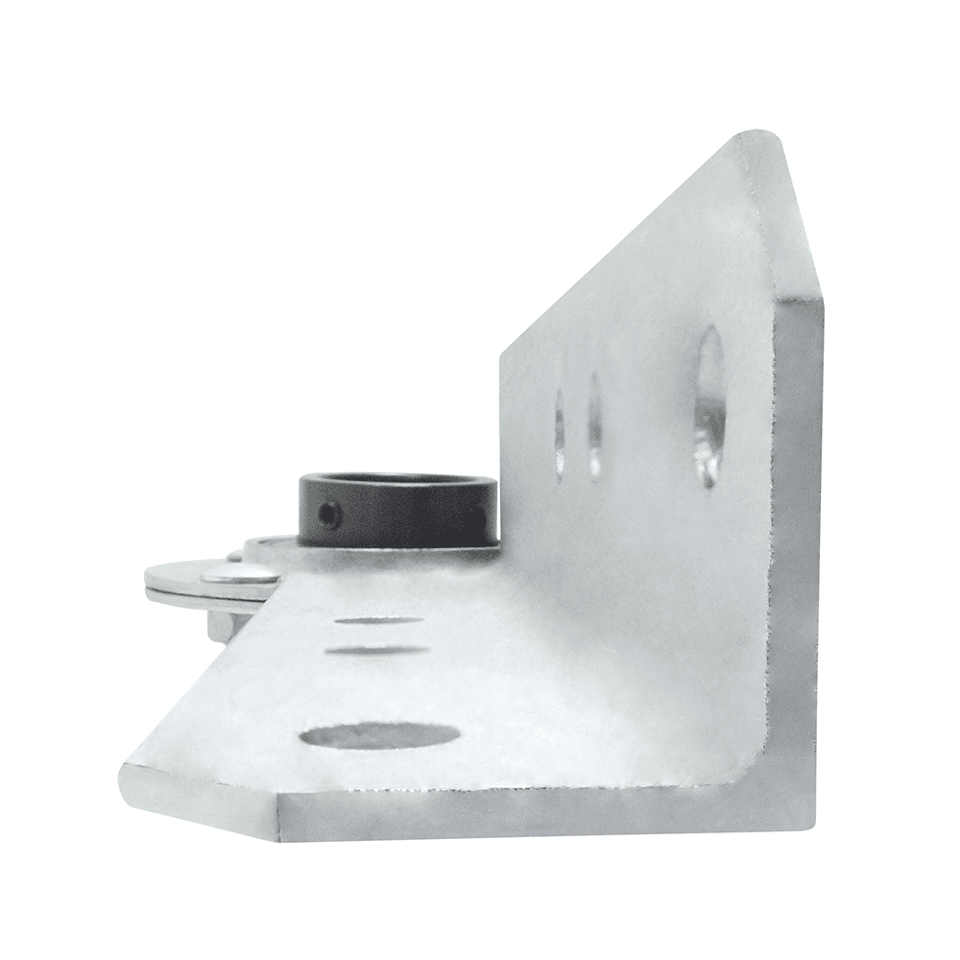

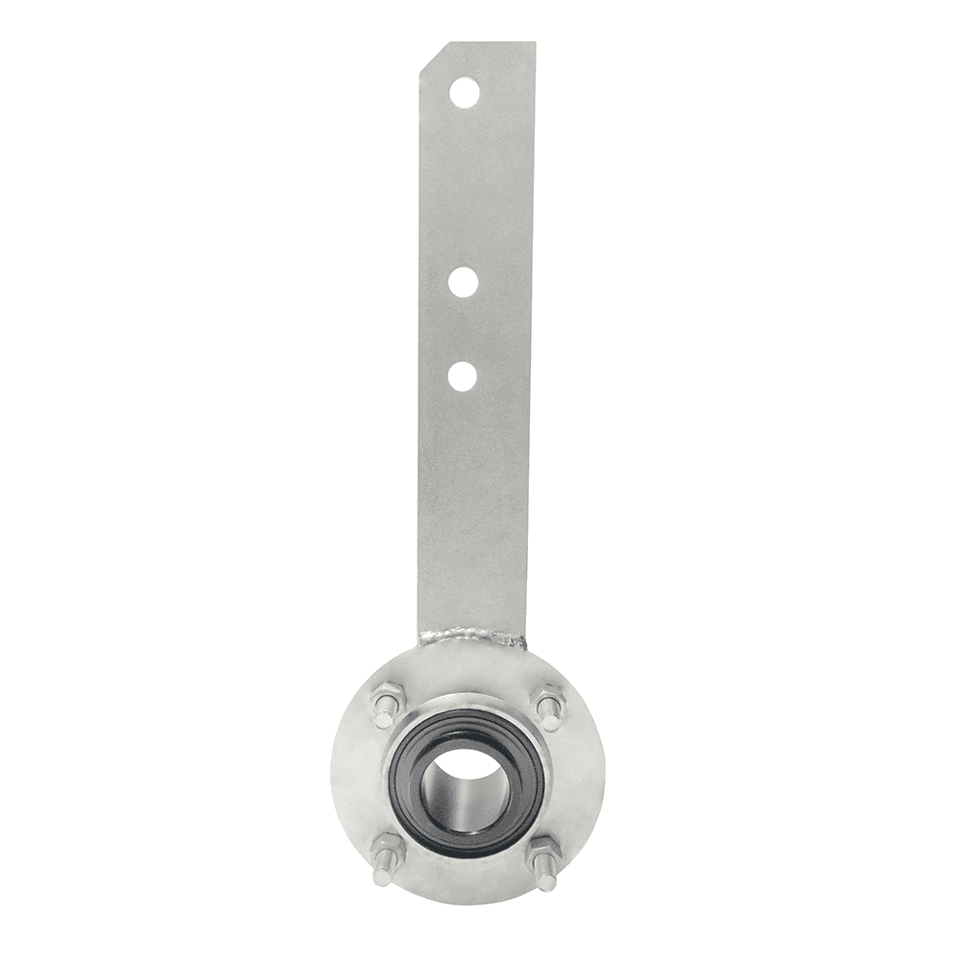

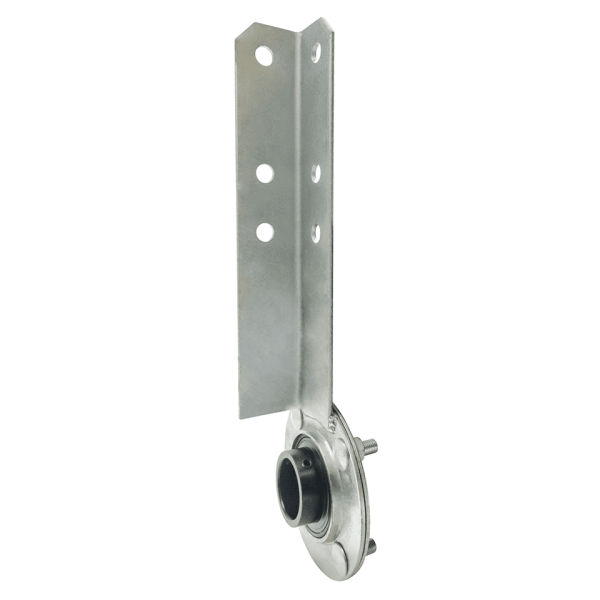

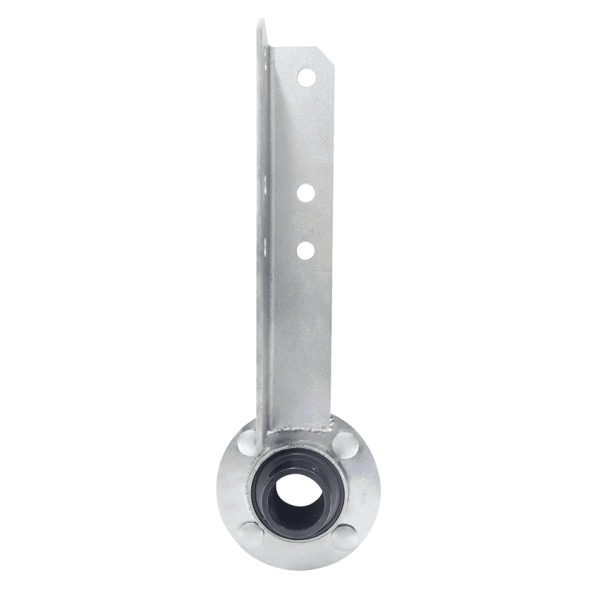

Strap Bearing Kit for 2 in. OD (1.5 in. ID) Drive Pipe

$ 70.74
  • Mounts to wood beams and joists
  • Identical to the ACE 109 strap bearing kit
  • Provides extra support for the 1.5 in. drive pipes
  • Made from 3/16 in. hot-dipped galvanized steel
  • Factory-installed 1.5 in. sealed bearing
  • Includes (3) 5/8 in. mounting holes per flange
SKU: BH09086
UPC: 091037090867

In stock

in stock

Free Shipping
×

Free Shipping

BH-USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

×

Shipping

BH-USA has partnered with UPS to offer Ground, Next Day Air, 2nd Day Air, and 3 Day Select services to our customers. In order to ship with these methods, the order must meet UPS's requirements.

Freight

Your order will be shipped via the most cost-effective method possible. All shipping and handling charges are the responsibility of the customer. Additionally, they are responsible for any delivery issues that may hinder delivery. In such cases, extra fees can apply, such as residential delivery fees.

Click the button below to learn more about our ordering and shipping policies.

Our Shipping Partners shipping modal logos

Qty.

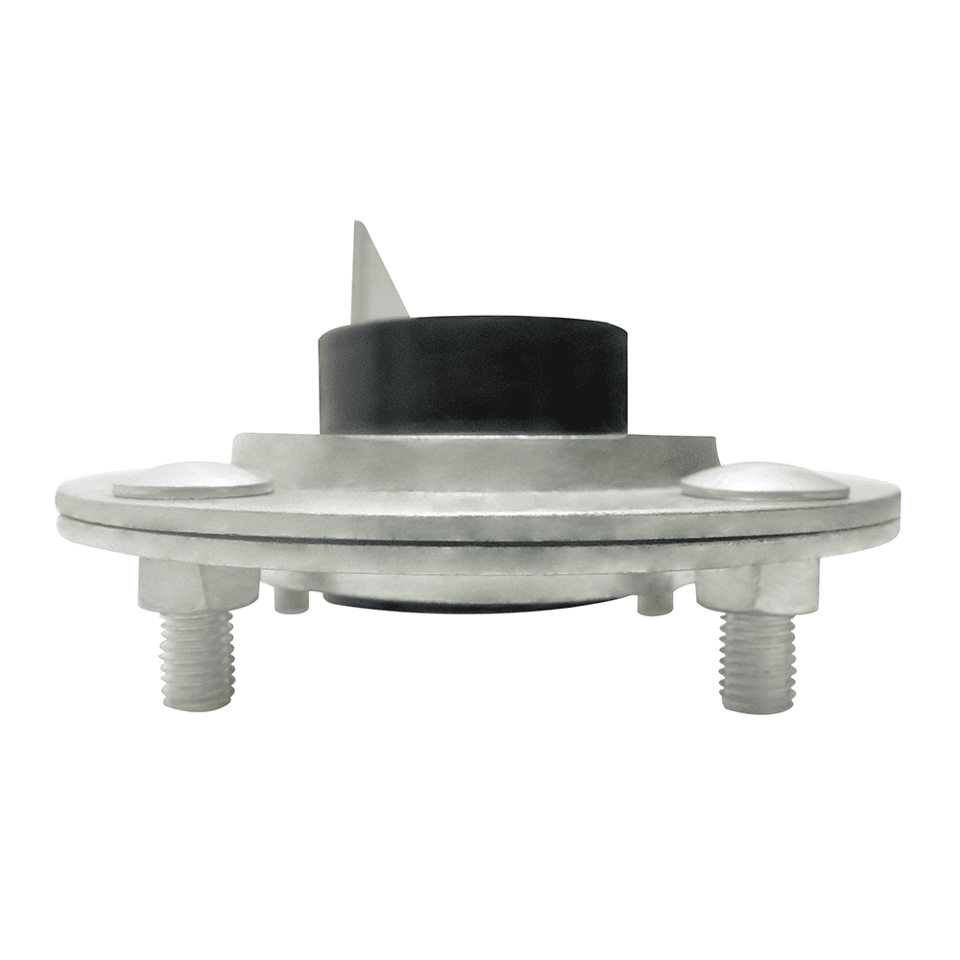

The Strap Bearing Kit for 2 in. OD (1.5 in. ID) Drive Pipe is used to hold the drive pipe in the air and let it rotate with ease during the lifting and lowering process. The ball bearings are sealed inside the zinc housing and allows the steel collar to move as the drive pipe moves. This is a replica of the ace 109 sealed bearing. It eliminates frinction on the drive pipe during the movement process. It measures 6.75 inch in diameter and is 2 inches in width. The steel strap hanger attaches to wood joists in an overhead boat lift application. The strap features 3 mounting holes on each flange that accepts up to 5/8 in. size bolts.
