20,000 lb. Aluminum Four Post Pile Mount Lift

$ 10,795.49
  • 20,000 lb. compounded cable lifting capacity
  • Mounts to 4 pilings
  • 6061-T6 US aluminum top beams
  • Features maintained drum switches
  • Features 220v motors
  • In-line GFCI control cable
  • Complete lift ships freight in a crate
SKU: 36473
UPC: 091037175465

available

Free Shipping
×

Free Shipping

BH-USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

Qty.



20,000 lb. Aluminum Four Post Pile Mount Lift

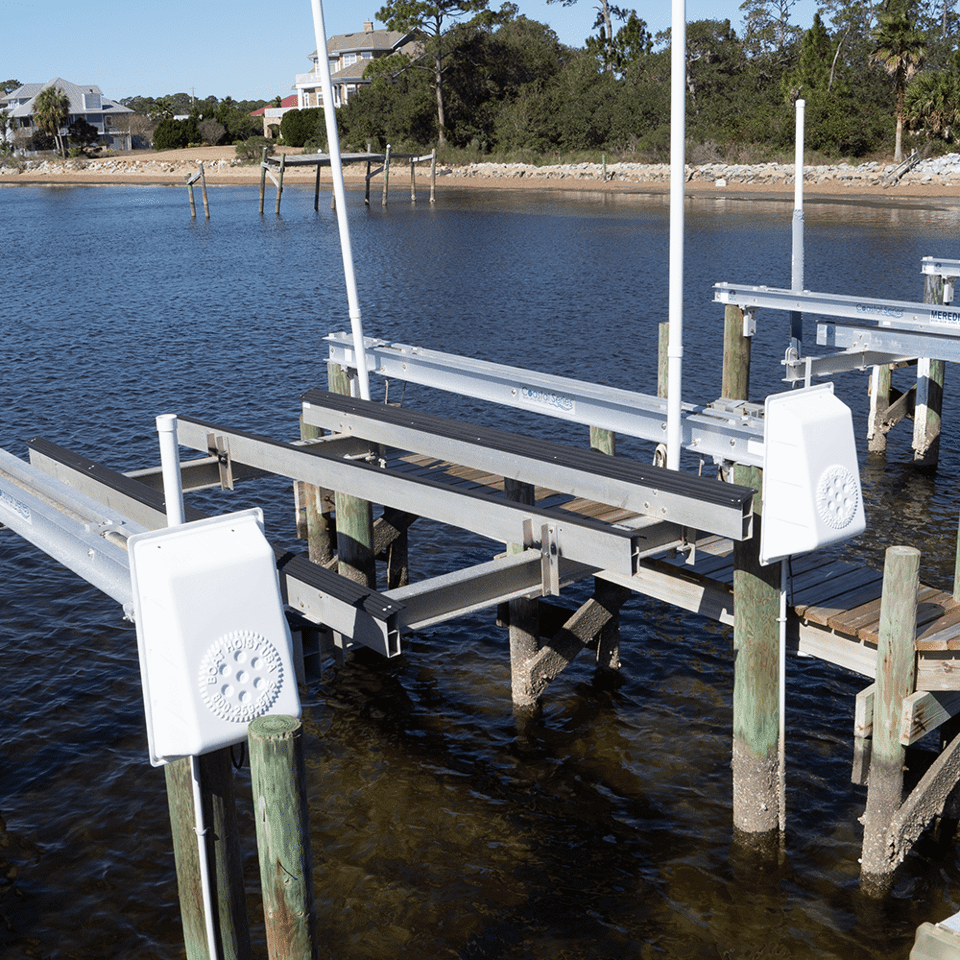

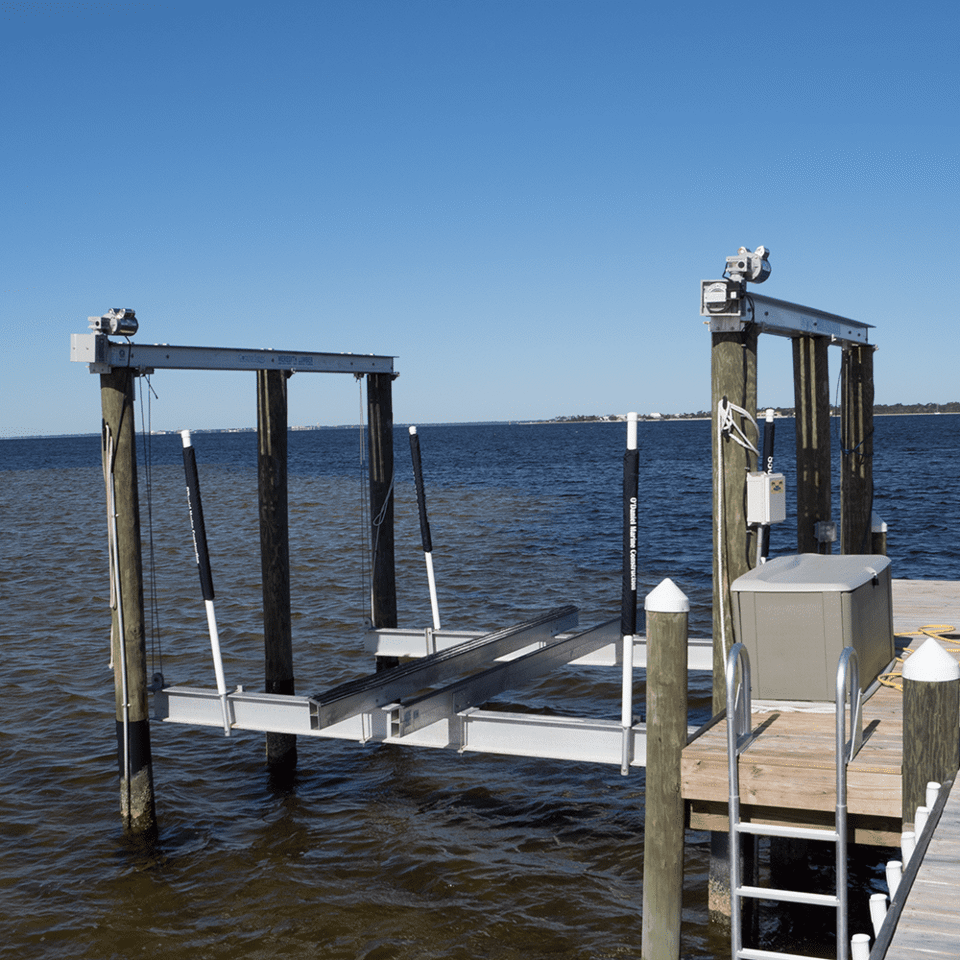

The 20,000 lb. Aluminum Four Post Pile Mount Lift is designed to mount on the tops of four dock pilings. The lift uses a 33 ft. cable compounded configuration, and (2) 16 ft. x 10 in. aluminum cradle bunks. This results in a 20,000 lb. lift capacity rating. Features no-weld design. Made of 6061-T6 US aluminum.

Bracket long bolts for pilings not included.

Lifting Capacity Gear Ratio Motor Horsepower Motor Finish Piling Amount Cable Configuration Cable Thickness Cable Length
6,000 lbs. 40:75 3/4 HP Stainless steel 4 Straight-Line 5/16 in. 15 ft.
8,000 lbs. 40:75 1 HP Stainless steel 4 Straight-Line 5/16 in. 15 ft.
9,000 lbs. 40:75 1 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
12,000 lbs. 40:90 1 HP Stainless steel 4 Compounded  5/16 in. 33 ft.
16,000 lbs. 40:90 1 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
20,000 lbs. 40:90 1 1/2 HP Stainless steel 4 Compounded 5/16 in. 33 ft.
20,000 lbs. 40:90 1 1/2 HP Stainless steel 6 Compounded 5/16 in. 33 ft.
24,000 lbs. 40:90 1 1/2 HP Stainless steel 6 Compounded 3/8 in. 33 ft.
30,000 lbs. 40:90 1 1/2 HP Stainless steel 8 Compounded 3/8 in. 36 ft.

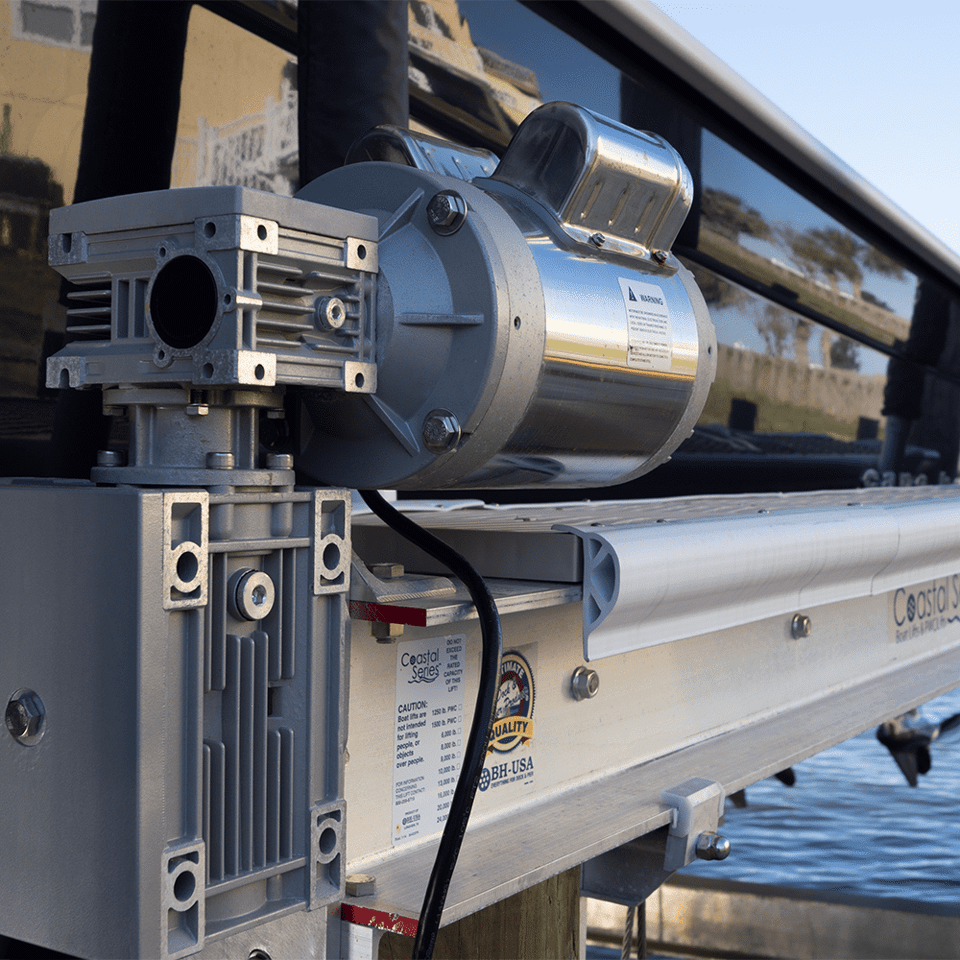

All aluminum pile mount boat lifts include a BH-USA A-Drive direct-drive hoist and a c-face input wired boat lift motor.
